Si12-411A Outdoor Unit (50 / 52 / 58 / 68 / 75 Class)
Removal Procedure 253
5

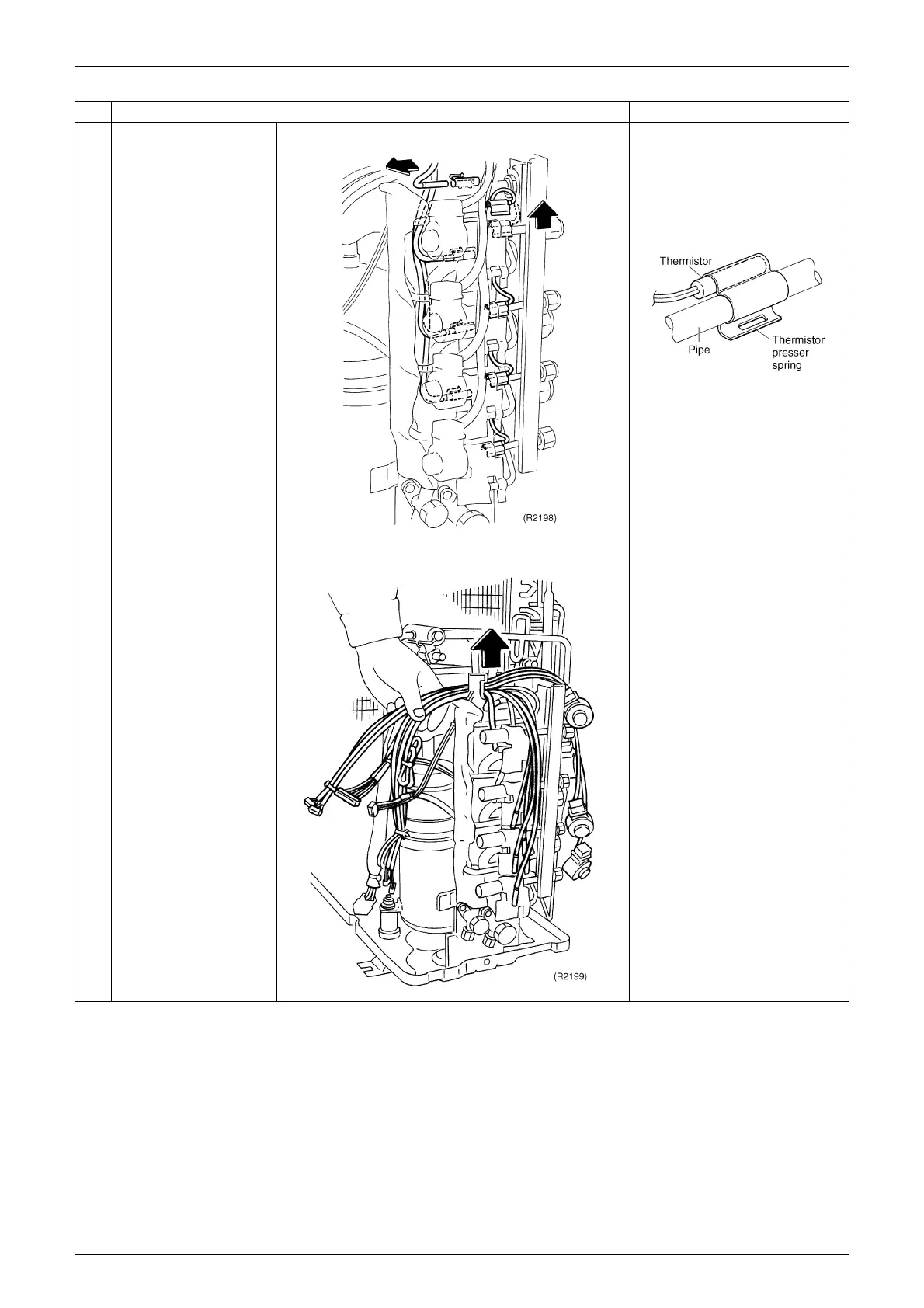

Take off the putty, and
remove each
thermistor.

Place the thermistor so that
its end comes up to the end
of the presser spring.

Be careful not to lose the
presser spring for the
discharge pipe thermistor.
6
Remove the wire
harness.
S90:

Outdoor air thermistor (Blue)

Heat exchanger thermistor
(Gray)

Discharge pipe thermistor
(Black)
S92: Gas pipe thermistor

Room A (Black)

Room B (Gray)

Room C (Brown)

Room D (Red)
S93: Liquid pipe thermistor

Room A (Black)

Room B (Gray)

Room C (Yellow)

Room D (Blue)
Step
Procedure Points
