Daikin 4MKS90EVMA - Removal of Compressor

Si12-794 Removal of Sound Blankets
Removal Procedure 33
4
Remove the sound
blanket (outer).

The sound blanket is fragile.
Carefully pass the blanket
through the discharge pipe.
5
Remove the sound
blanket (top inner).
6
Open the sound blanket
(inner) and pass it
through the part of the
mufflers.

The sound blanket is fragile.
Be careful of the notches of
the compressor mount (3
locations).
Step
Procedure Points

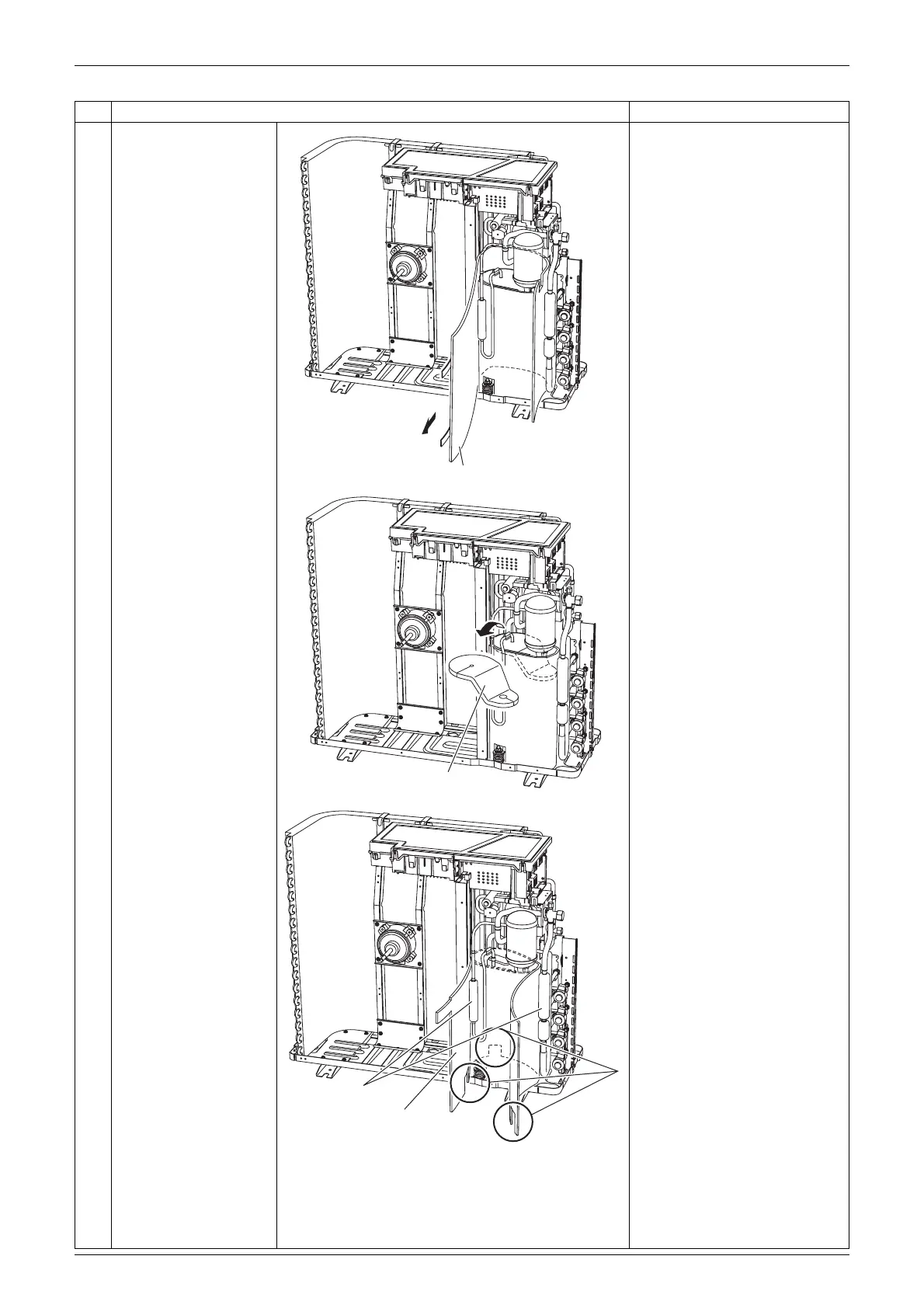

(R10436)
Sound blanket (outer)
(R10437)
Sound blanket (top inner)
(R10438)
Mufflers
Sound blanket
(inner)
