Daikin 4MKS90EVMA - Terminal Cover Removal; Compressor Lead Wires; Overload Protector Removal

Si12-794 Removal of Compressor
Removal Procedure 35
7. Removal of Compressor
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.

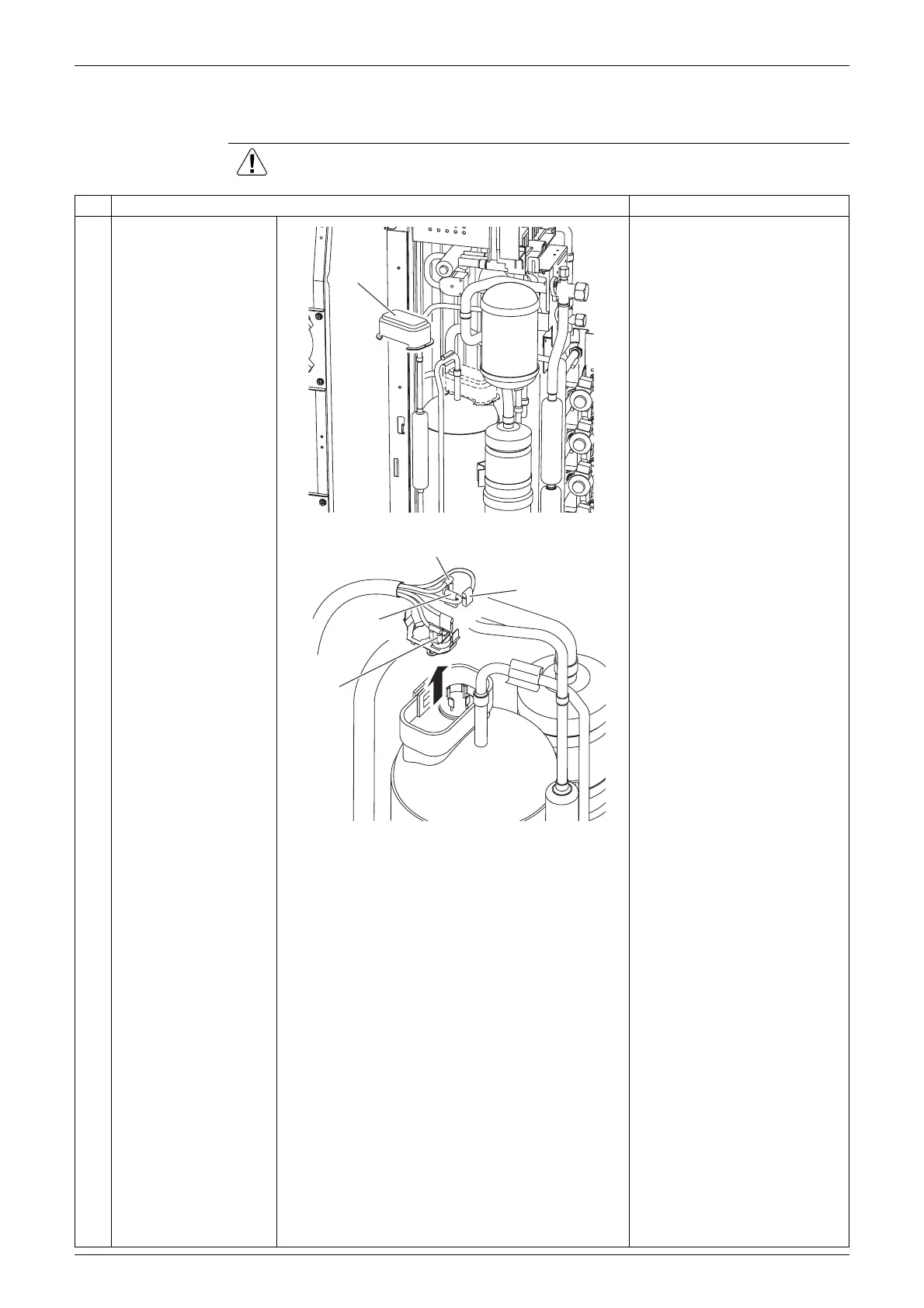

Step
Procedure Points
1
Remove the terminal
cover.
2
Disconnect the
compressor lead wires.

U : red, V : yellow, W : blue
3
Remove the overload
protector.
(R6466)
Terminal
cover
(R9471)
W(blue)
U(red)
Overload
protector
V(yellow)
