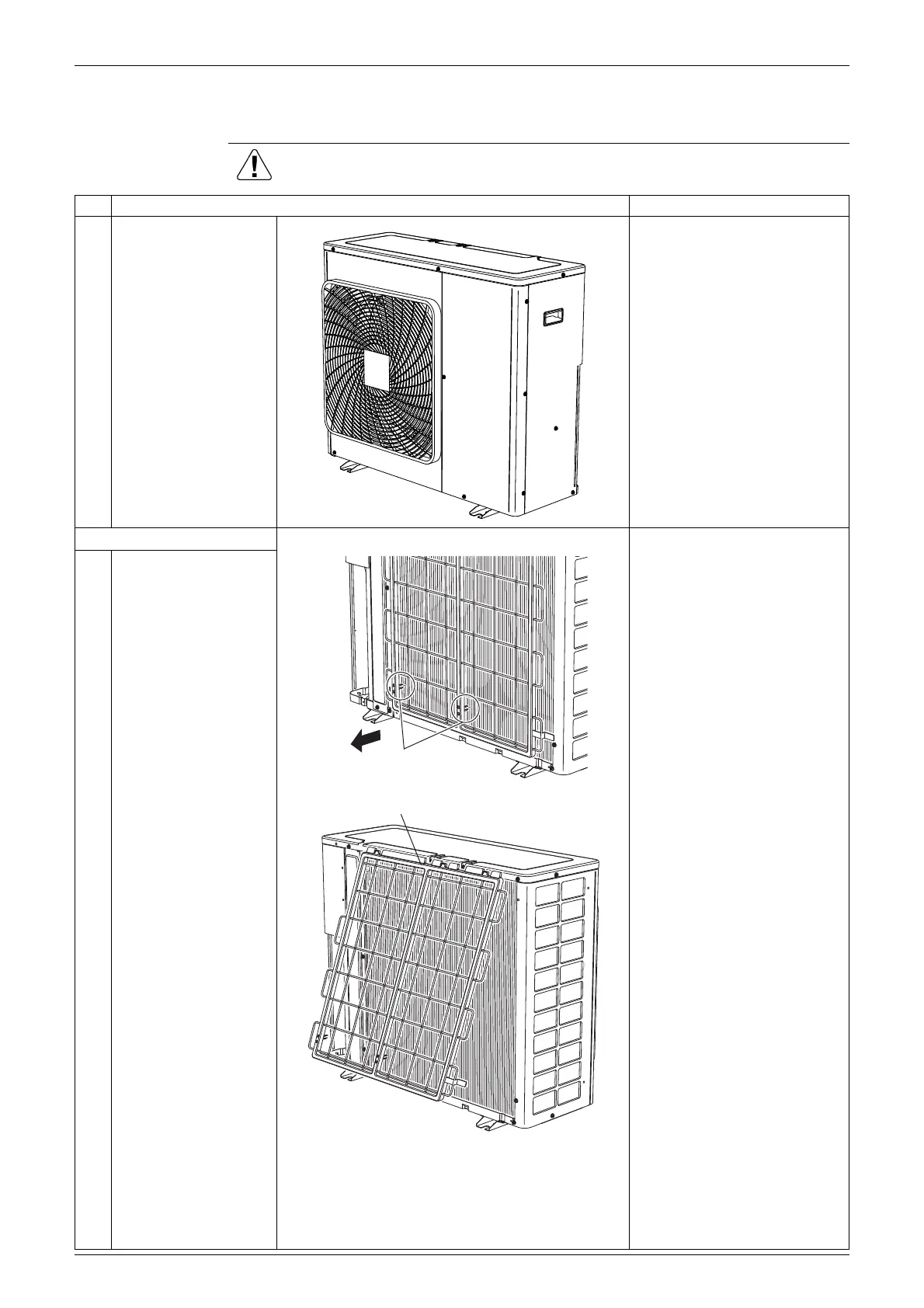

Removal of Outer Panels Si12-794
2 Removal Procedure
1. Removal of Outer Panels
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step
Procedure Points
Appearance features
1. Remove the suction grille.

The hooks are secured in
the clearances of the
outdoor heat exchanger fins.
1
Unfasten the 2 hooks at
the bottom first.
(
R6368
)
Hook
Rear side
(R14612)
Suction grille
(R6370)
