Daikin Altherma ERGA04E V3 Series Operation Manual

3 About the system
Operation manual
4
EBVZ16S18+23DJ
Daikin Altherma 3 R F
4P643606-1 – 2021.09
2.2 Instructions for safe operation
WARNING: MILDLY FLAMMABLE
MATERIAL
The refrigerant inside this unit is mildly
flammable.
WARNING
The appliance shall be stored so as to
prevent mechanical damage and in a
well-ventilated room without
continuously operating ignition sources
(example: open flames, an operating
gas appliance or an operating electric
heater).
WARNING
▪ Do NOT pierce or burn refrigerant
cycle parts.
▪ Do NOT use cleaning materials or
means to accelerate the defrosting
process other than those
recommended by the manufacturer.
▪ Be aware that the refrigerant inside
the system is odourless.
WARNING
The refrigerant inside the unit is mildly
flammable, but normally does NOT
leak. If the refrigerant leaks in the room
and comes in contact with fire from a
burner, a heater, or a cooker, this may
result in fire, or the formation of a
harmful gas.
Turn off any combustible heating
devices, ventilate the room, and
contact the dealer where you
purchased the unit.
Do NOT use the unit until a service
person confirms that the part from
which the refrigerant leaked has been
repaired.
WARNING
Air purging heat emitters or
collectors. Before you purge air from
heat emitters or collectors, check if
or is displayed on the home screen
of the user interface.
▪ If not, you can purge air immediately.
▪ If yes, make sure that the room
where you want to purge air is
sufficiently ventilated. Reason:
Refrigerant might leak into the water
circuit, and subsequently into the
room when you purge air from the
heat emitters or collectors.
3 About the system
Depending on the system layout, the system can:
▪ Heat up a space
▪ Cool down a space
▪ Produce domestic hot water
INFORMATION
Cooling is only applicable in case a conversion kit
(EKHVCONV*) is installed.
INFORMATION
If underfloor heating is installed in the main zone, then in
cooling mode the main zone can only provide refreshment.
Real cooling is then NOT allowed.

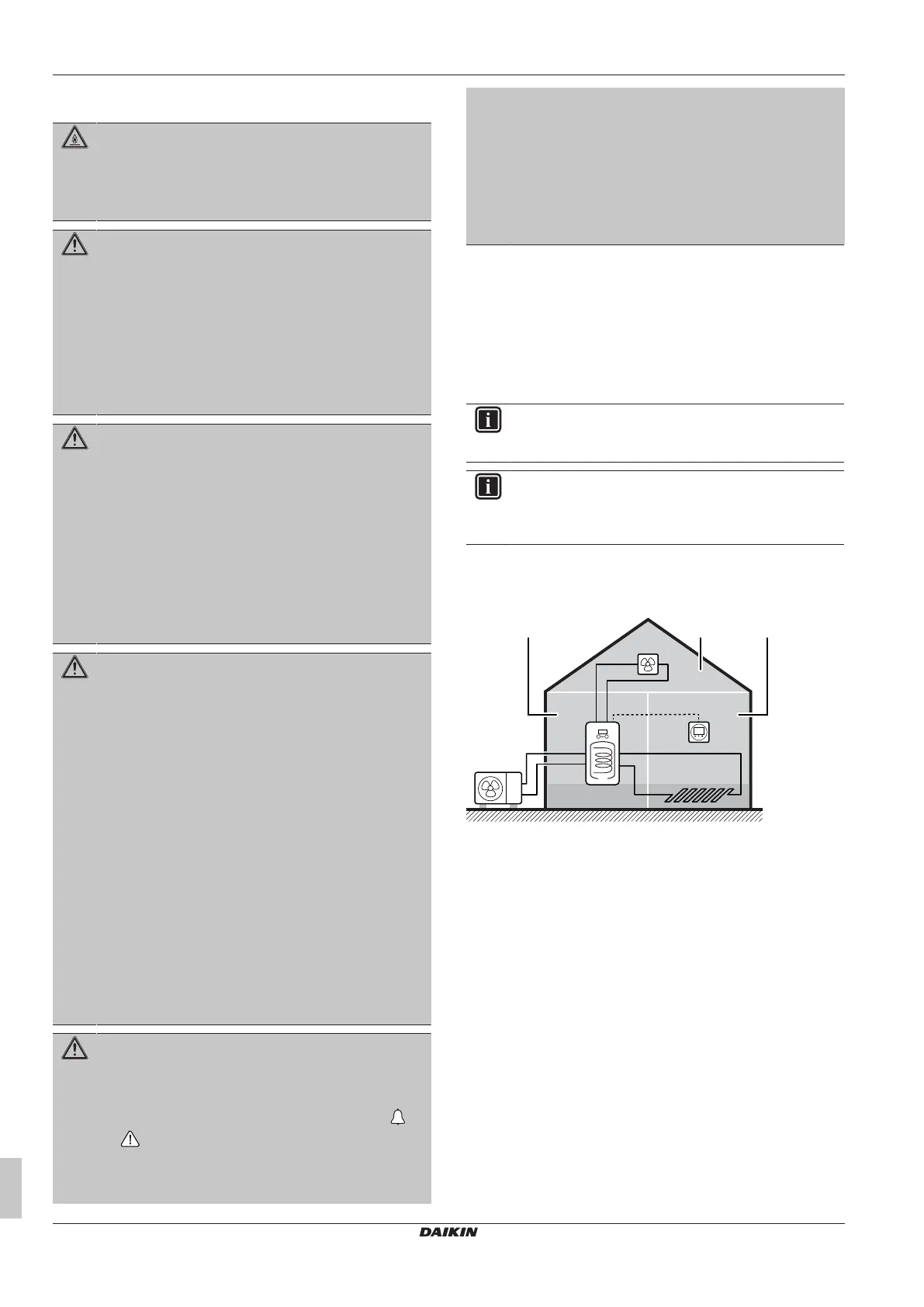

3.1 Components in a typical system
layout
g
A
db
a
f
e
c
BC
A Main zone. Example: Living room.
B Additional zone. Example: Bedroom.
C Technical room. Example: Garage.
a Outdoor unit heatpump
b Indoor unit heatpump
c Domestic hot water (DHW) tank
d User interface of the indoor unit
e Dedicated Human Comfort Interface (BRC1HHDA used as
room thermostat)
f Underfloor heating
g Radiators, heatpump convectors, or fancoil units
4 Quick guide
4.1 User permission level
The amount of information you can read out and edit in the menu
structure depends on your user permission level:
▪ User: Standard mode
▪ Advanced user: You can read out and edit more information
