14 Technical data
14.1 Overview: Technical data
This chapter contains information about:
• Dimensions and service space
• Centre of gravity
• Components
• Piping diagram
• Wiring diagram
• Technical specifications
• Operation range
• ESP curve
14.2 Dimensions and service space

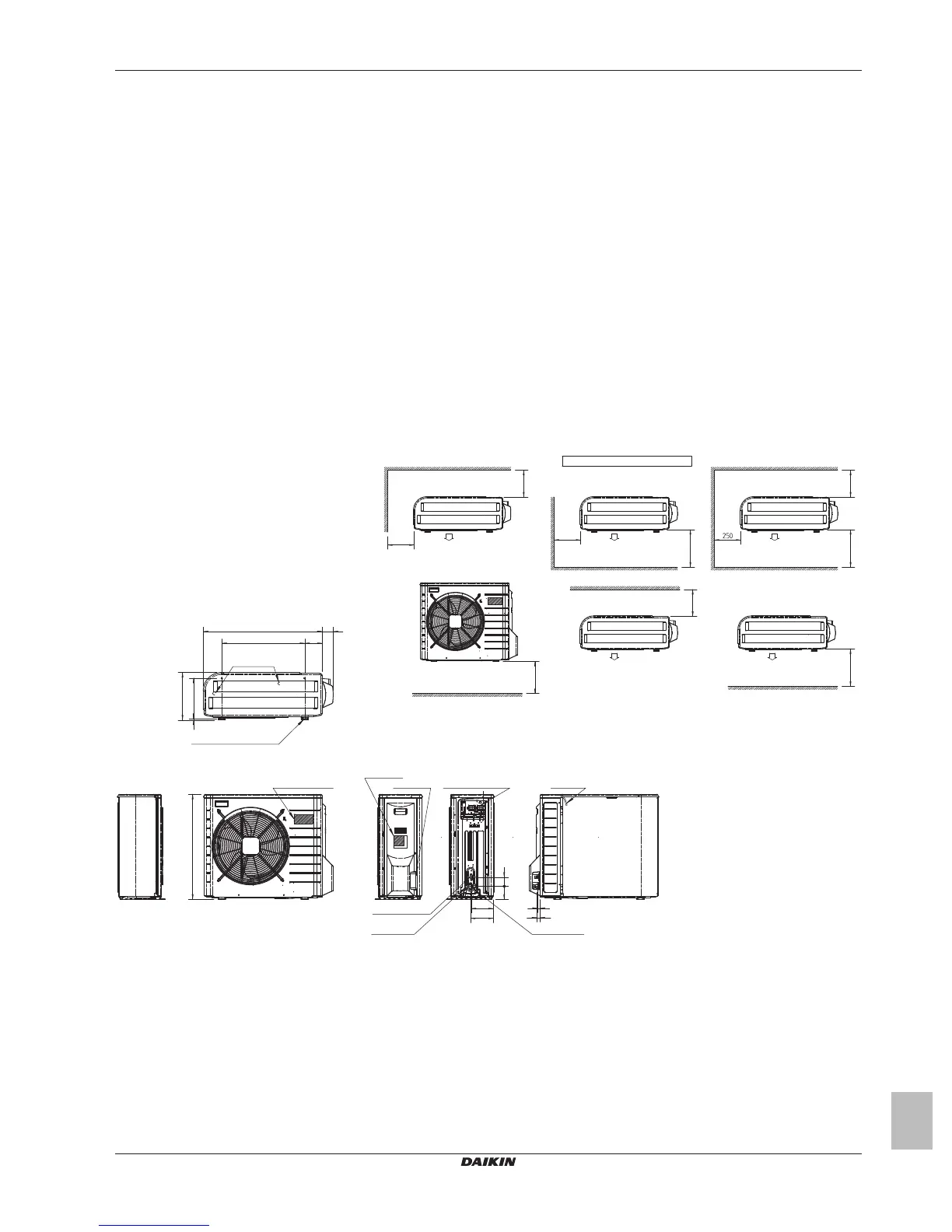

14.2.1 Dimensions and service space: Outdoor unit
3TW60814-1B
250
250 250
300
333
28310
250
350
250350
350
250
735
6491
160
155
23
18
580
832
121
78
(Ø6.4 CuT)
(Ø15.9 CuT)
4-HOLES FOR ANCHOR BOLTS
(M8 OR M10)
BRAND NAME LABEL
DRAIN OUTLET
NAME PLATE
WIRING INLET
TERMINAL STRIP
WITH EARTH TERMINAL
OUTDOOR AIR TEMPERATURE
THERMISTOR
LIQUID STOP VALVE
SERVICE PORT
GAS STOP VALVE
IN CASE OF REMOVING
STOP VALVE COVER
MINIMUM SPACE FOR AIR PASSAGE
WALL HEIGHT ON AIR OUTLET SIDE
= LESS THAN 1200

Daikin Altherma ERLQ004-006-008CA Specifications

General

Category	Air Conditioner
Model	ERLQ004-006-008CA
Energy Efficiency Class (Heating)	A++
Refrigerant	R-410A
Type	Heat Pump
Operating Temperature Range (Heating)	-20°C to 35°C
Operating Temperature Range (Cooling)	10 to 46 °C
