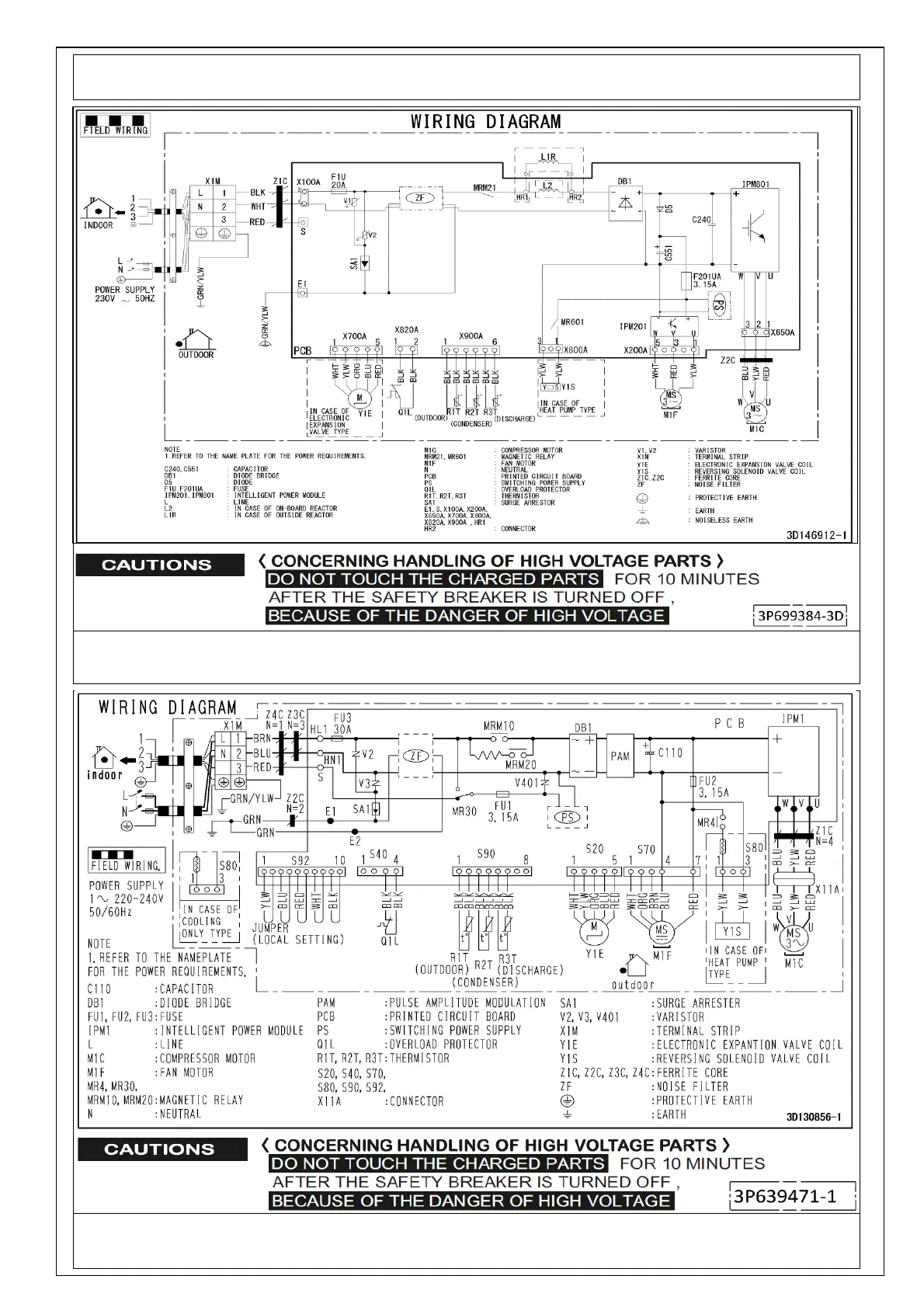

Outdoor Unit -Wiring Diagram
Applicable Model :- RKM50UV16VA,RKMG50UV16VA, RKU50UV16VF, RKUG50UV16VF,RKC48UV16W,RKC48UV16WF,
RKM50UV16VAC, RKM50UV16VAC, RKU50UV16VFC, RKMG50UV16VAC, RKUG50UV16VFC, RKM50UV16VAC, RKCG48UV16W,
RKCG48UV16WF, RKL50UV16VA & RKLG50UV16VA.
Applicable Model :- RKM60UV16U, RKMG60UV16U & RKM60UV16U.
