English
UNIT
CONFIGURATION

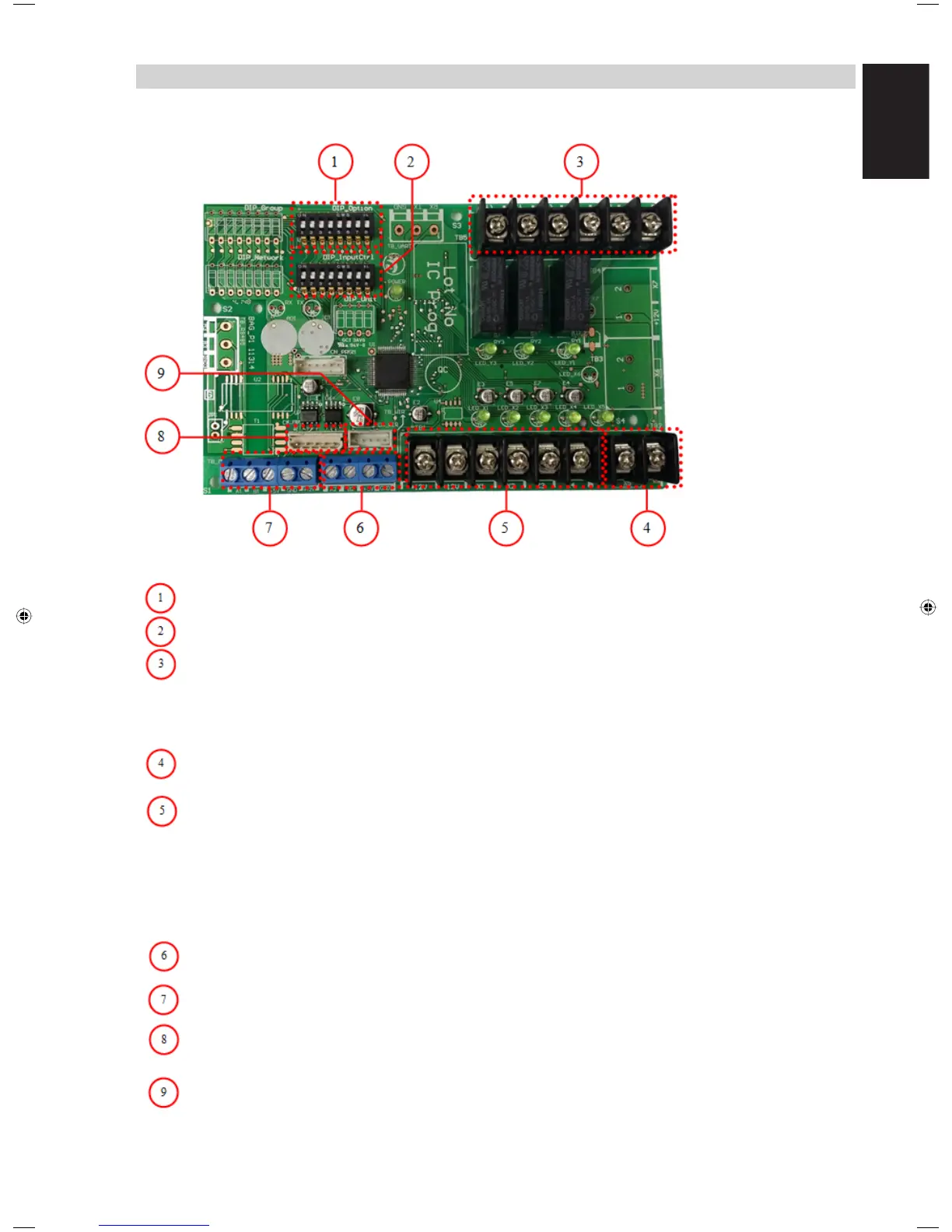

1 BOARD DESCRIPTIONS
Descriptions
Option setting dip switch, DIP_Option
Input control dip switch, DIP_InputCtrl
Dry contact outputs
Y1: On/ Off status output
Y2: Heat/ Cool or Dry or Fan operating mode output
Y3: Unit faulty status output
Resistance input
X5: Set temperature control
Input Contacts
X1: Force Off
X2: On/ Off control
X3: Cool/ Heat Operating mode
X4: Hi/ Low Fan speed control
Terminal block for connection to SQLCD (with RS-485)
Terminal block for connection to SQMB (with RS-485)
Connector for connection to mainboard controller
Connector for connection to SLM8 (BRC51A)/ SQSLM8 (BRC51A64)/
SLM9/ SQSLM9
4
