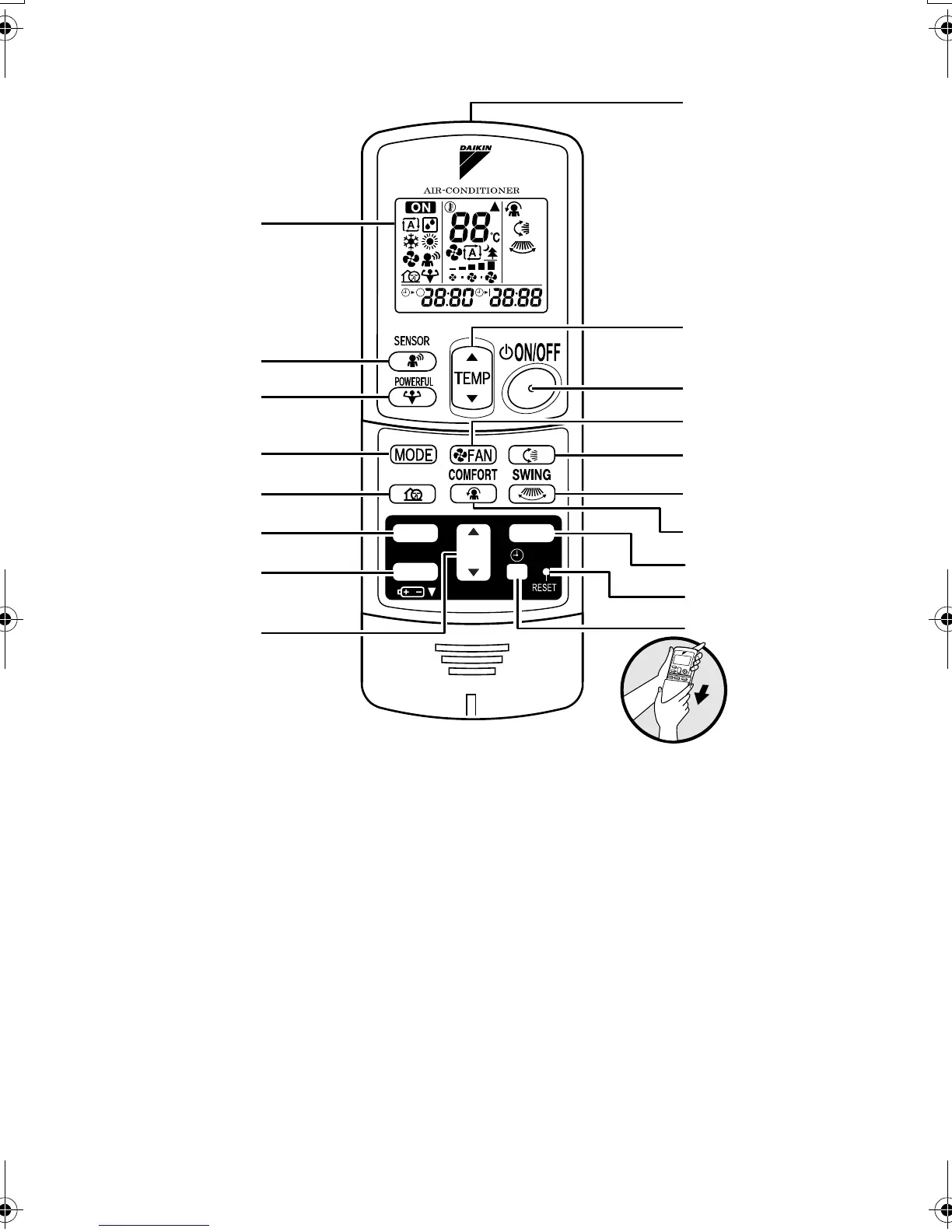

■ Remote Controller
1. Signal transmitter:
•
It sends signals to the indoor unit.
2. Display:
• It displays the current settings.
(In this illustration, each section is shown with all
its displays ON for the purpose of explanation.)
3. SENSOR button:
INTELLIGENT EYE
operation (page 16.)
4. POWERFUL button:
POWERFUL operation
(page 14.)
5. TEMPERATURE adjustment buttons:
• It changes the temperature setting.
6. ON/OFF button:
•
Press this button once to start operation.
Press once again to stop it.
7. MODE selector button:
• It selects the operation mode.
(AUTO/DRY/COOL/HEAT/FAN) (page 10.)
8. QUIET button:
OUTDOOR UNIT QUIET
operation
(page 15.)
9. FAN setting button:
• It selects the air flow rate setting.
10. SWING button:
(page 12.)
• Flap (Horizontal blade)
11. SWING button:
(page 12.)
• Louvers (Vertical blades)
12. COMFORT AIRFLOW mode button:
(page 13.)
13. ON TIMER button:
(page 19.)
14. OFF TIMER button:
(page 18.)
15. TIMER Setting button:
• It changes the time setting.
16. TIMER CANCEL button:
• It cancels the timer setting.
17. CLOCK button:
(page 9.)
18. RESET button:
• Restart the unit if it freezes.
QUIET
TIMER
ON
CANCEL
OFF
1
5
6
9
10
11
12
< ARC433B41 >
2
13
15
14
3
4
7
8
16
18
17
