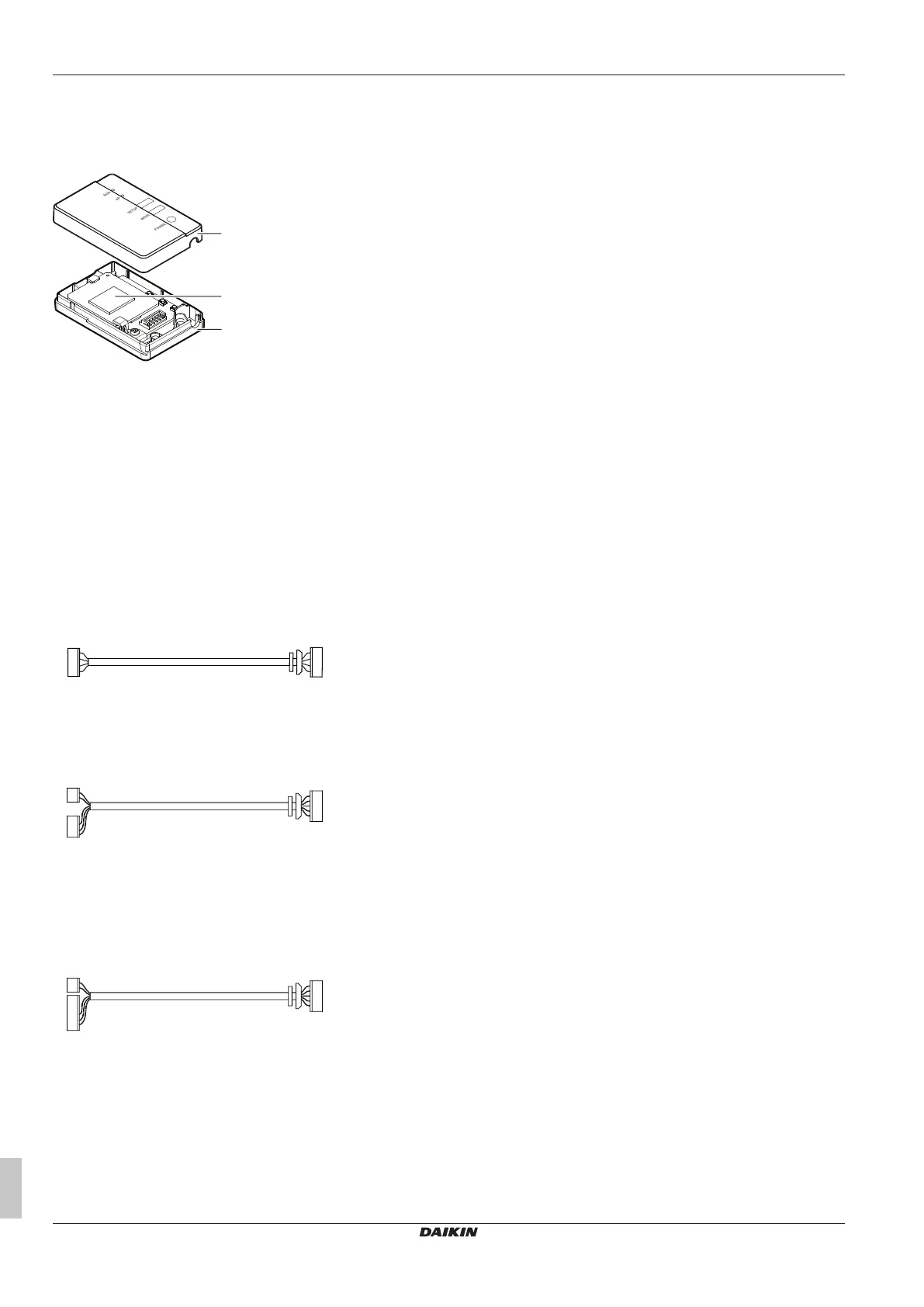

5.3.2 To connect the adapter with the unit
1 Separate the upper casing from the lower casing.
a
c
b
a Upper casing
b Adapter PCB
c Lower casing
2 Connect the indoor unit side connector to the indoor unit PCB port.
▪ BRP069C51: PCB port X801A
▪ BRP069C81 and BRP069C82: X35A and X50A
3 Connect the adapter side connector to the adapter.
Connection cable for BRP069C51:
a
b
a Indoor unit side connector X801A
b Adapter side connector
Connection cable for BRP069C81:
a
b
c
a Indoor unit side connector X35A
b Indoor unit side connector X50A (type 1)
c Adapter side connector
Connection cable for BRP069C82:
a
b
c
a Indoor unit side connector X35A
b Indoor unit side connector X50A (type 2)
c Adapter side connector
