Daikin BRP069C81 - Overview of Electrical Connections

5 Installation
Installation manual
9
BRP069C51, BRP069C81, BRP069C82
Wireless LAN connecting adapter BRP069C41
4P567679-2H – 2022.04

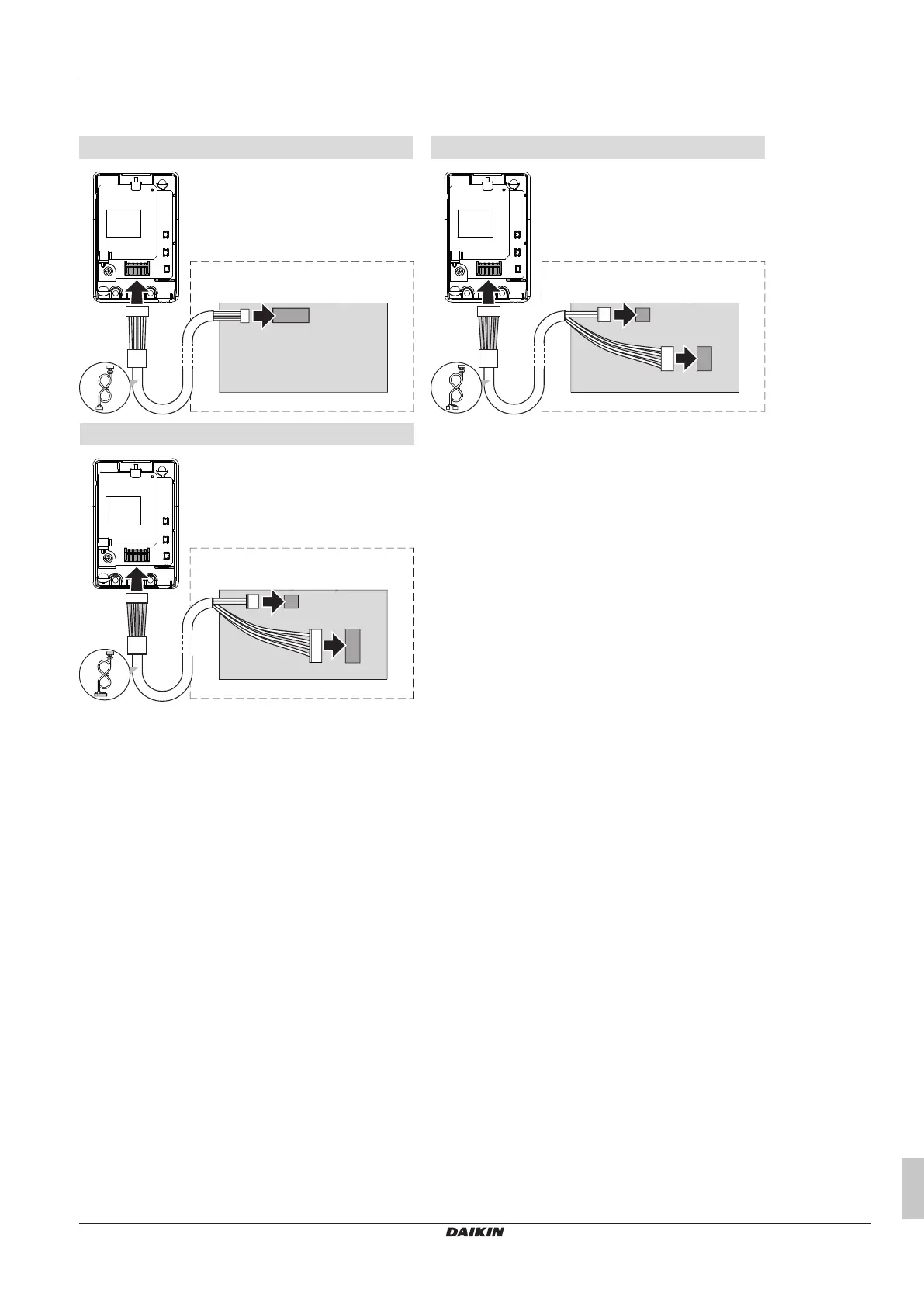

5.3.1 Overview of electrical connections
X801A
h
g
c
b1 b2
b3
a
X50A
X35A
h
g
e
d
a
BRP069C51 BRP069C81
X50A
X35A
h
g
e
f
a
BRP069C82
a Wireless LAN adapter BRP069C41
b1 BRP069C51 connection cable
b2 BRP069C81 connection cable
b3 BRP069C82 connection cable
c PCB port X801A
d PCB port X50A (type 1)
e PCB port X35A
f PCB port X50A (type 2)
g Indoor unit PCB
h Indoor unit
