SiUS12-814 Outdoor Unit – 4MXS32GVJU
Removal Procedure 205
2.2 Removal of the Electrical Box
Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Step
Procedure Points

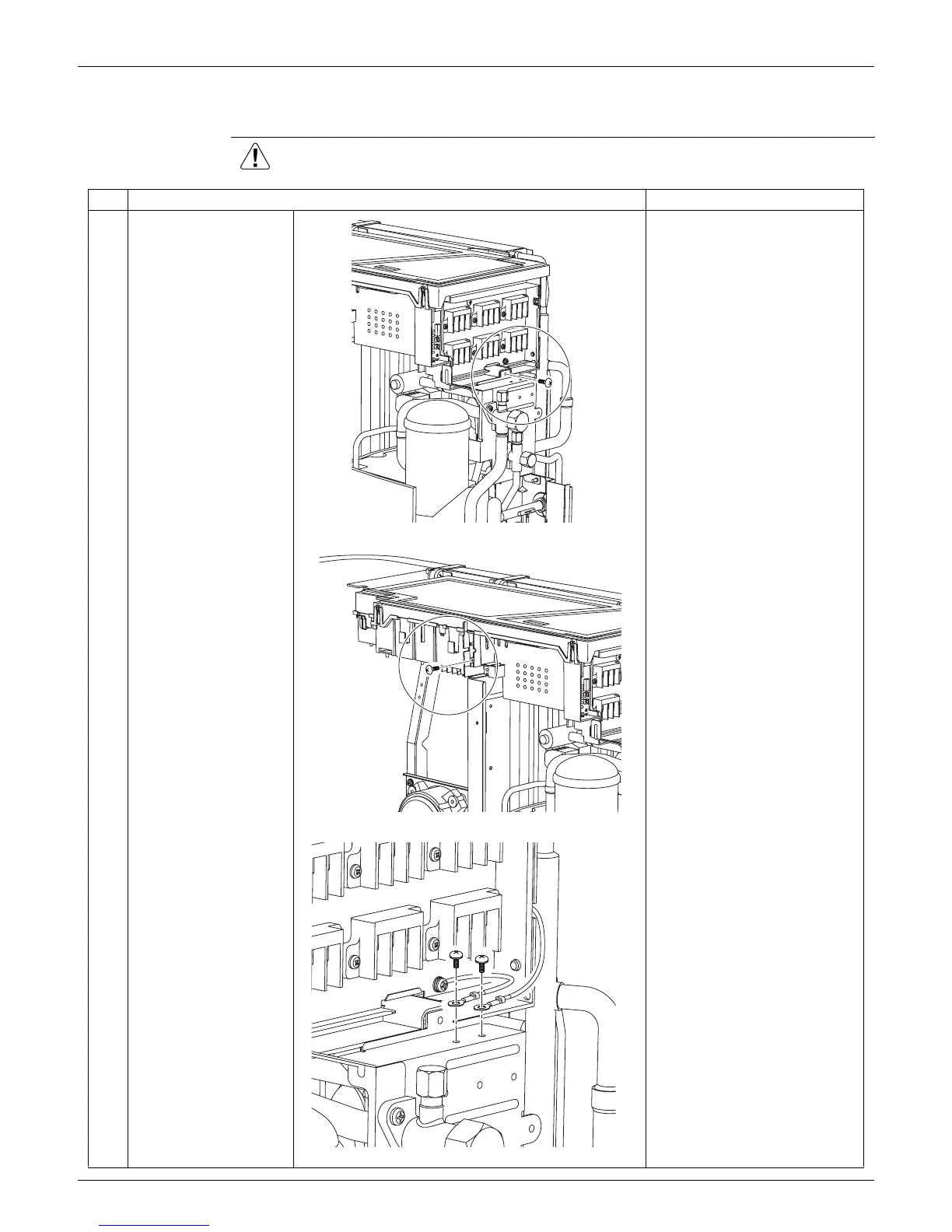

1
Remove the fixing
screw from the shutoff
valve mounting plate.
2
Remove the fixing
screw on the partition
plate.
3
Remove the 2 screws
to detach the ground
wires.
(R6410)
(R6411)
(R6412)
