NOTE:
Low Voltage
Terminal Strip
Thermostat wiring
for all units
connect to low
voltage strip
Ground
Lug
Line voltage connects
to power block on
Coolers, 230V Gas
Packs, and 2 Speed
Models.
Line voltage connects
to middle contactor
on 460v and 575v
Gas Packs
(or power block
if equipped)
Power Block -
(Coolers, 230V Gas
Packs, and 2 Speed
Models)
Field wiring enters
from this direction

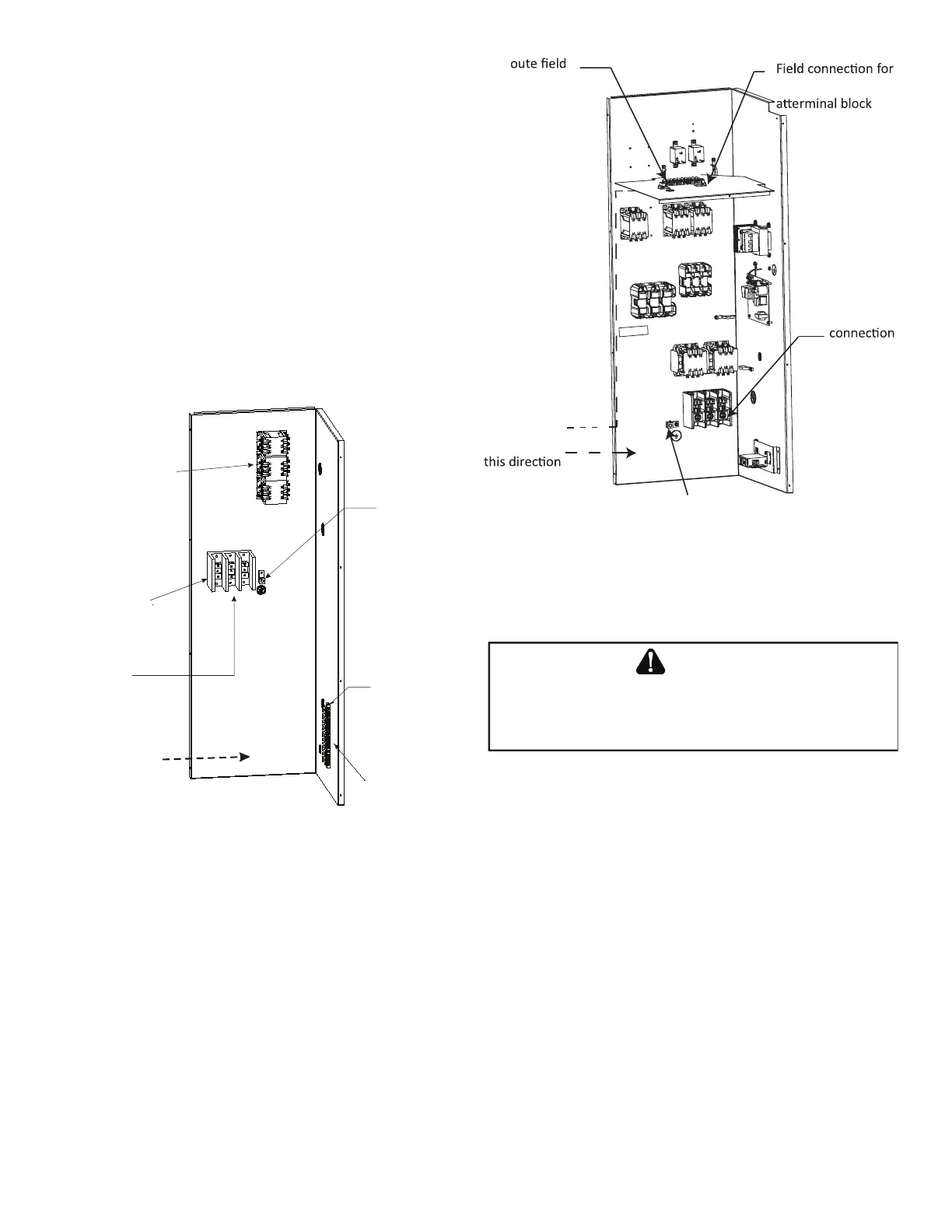

POWER AND LOW VOLTAGE BLOCK LOCATIONS
ntrol
ro
t
ntrol
r
lin
Gr
rsro
25 TONS MODEL POWER AND LOW VOLTAGE BLOCK LOCATIONS
NOTE:
F
AILURE
OF
UNIT
DUE
TO
OPERATION
ON
IMPROPER
LINE
VOLTAGE
OR
WITH
EXCESSIVE
PHASE
UNBALANCE
CONSTITUTES
PRODUCT
ABUSE
AND
IS
NOT
COVERED
BY
THE
WARRANTY
. I
T
MAY
CAUSE
SEVERE
DAMAGE
TO
THE
UNIT
ELECTRICAL
COMPONENTS
.
WARNING
NOTE:
