Daikin DC96SN - Filter Installation Locations; Possible Upright Upflow Filter Locations; Upflow Upright Filter Locations

34
Model 

1 - 16 X 25 Side or 1 - 14 X 24 Bottom Return

1 - 16 X 25 Side or Bottom Return
 1 - 16 X 25 Side or Bottom Return
 1 - 16 X 25 Side or Bottom Return
 2 - 16 X 25 Side or 1 - 20 X 25 Bottom Return
 2 - 16 X 25 Side or 1 - 20 X 25 Bottom Return¹

2 - 16 X 25 Side or 1 - 24 X 24 Bottom Return¹
 2 - 10 X 20 or 1 - 14 X 25 Top Return
 2 - 10 X 20 or 1 - 14 X 25 Top Return
 2 - 14 X 20 or 1 - 16 X 25 Top Return
 2 - 14 X 20 or 1 - 20 X 25 Top Return
 2 - 14 X 20 or 1 - 24 X 24 Top Return

Larger filters may be used, filters may also be centrally located.
¹ = use 2 - 16 X 25 filters and two side returns or 20 X 25 filter on
bottom return or combination side & bottom if furnace is
connected to a cooling unit over 4 tons nominal capacity


Consider installing an air cleaner with deep-pleated media
lter at the time of furnace installation. A deep-pleated
lter with a MERV rating of 8 (minimum) will often provide
better ltration to protect equipment and the air distribution
system than a standard 1” lter and often has lower static
pressure loss than a 1” lter. Also a deep-pleated lter
will typically require less frequent replacement intervals.
Avoid using highly restrictive 1” lters which produce static
pressure loss greater than .25” W.C. In some installations
the minimum lter size required (consult lter sizing chart
above) will not lend itself to a lter installation on the side
of the furnace. The installation of a centrally installed air
cleaner cabinet or a return duct lter installation may o󰀨er
more practicality.
Clean Comfort™ brand MERV 11 air cleaners have
5¼” media lters and are available in the following
congurations. Consult your distributor for information on
our complete line of IAQ Clean Comfort™ products.
Depending on the installation and/or customer preference,
di󰀨ering lter arrangements can be applied. Filters can
be installed in the central return register or a side panel
external lter rack kit (upows). As an alternative a media
air lter or electronic air cleaner can be used as the
requested lter.

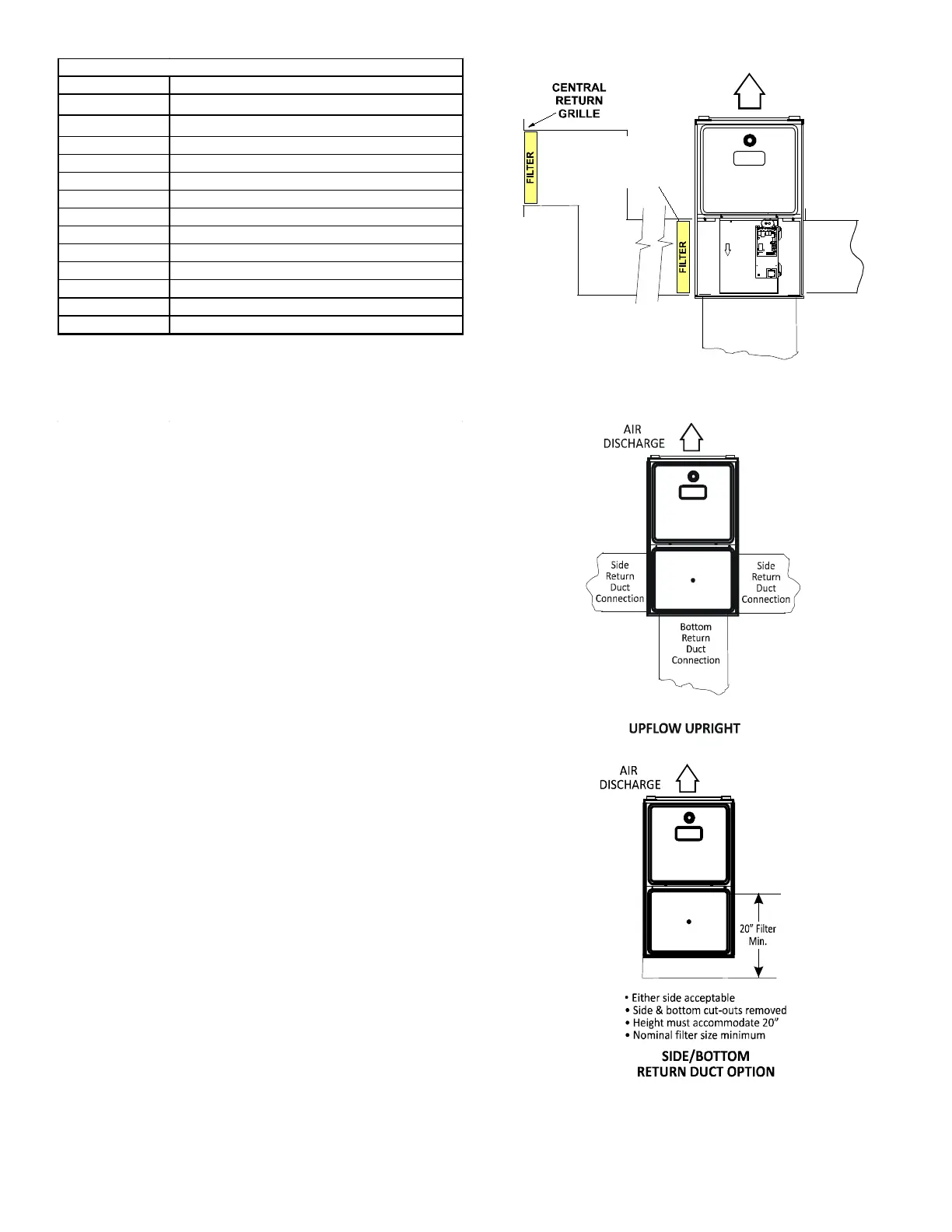

The following gures show possible lter locations:









