90°
ELBOWS
90°
ELBOWS
3”-24” BETWEEN PIPES

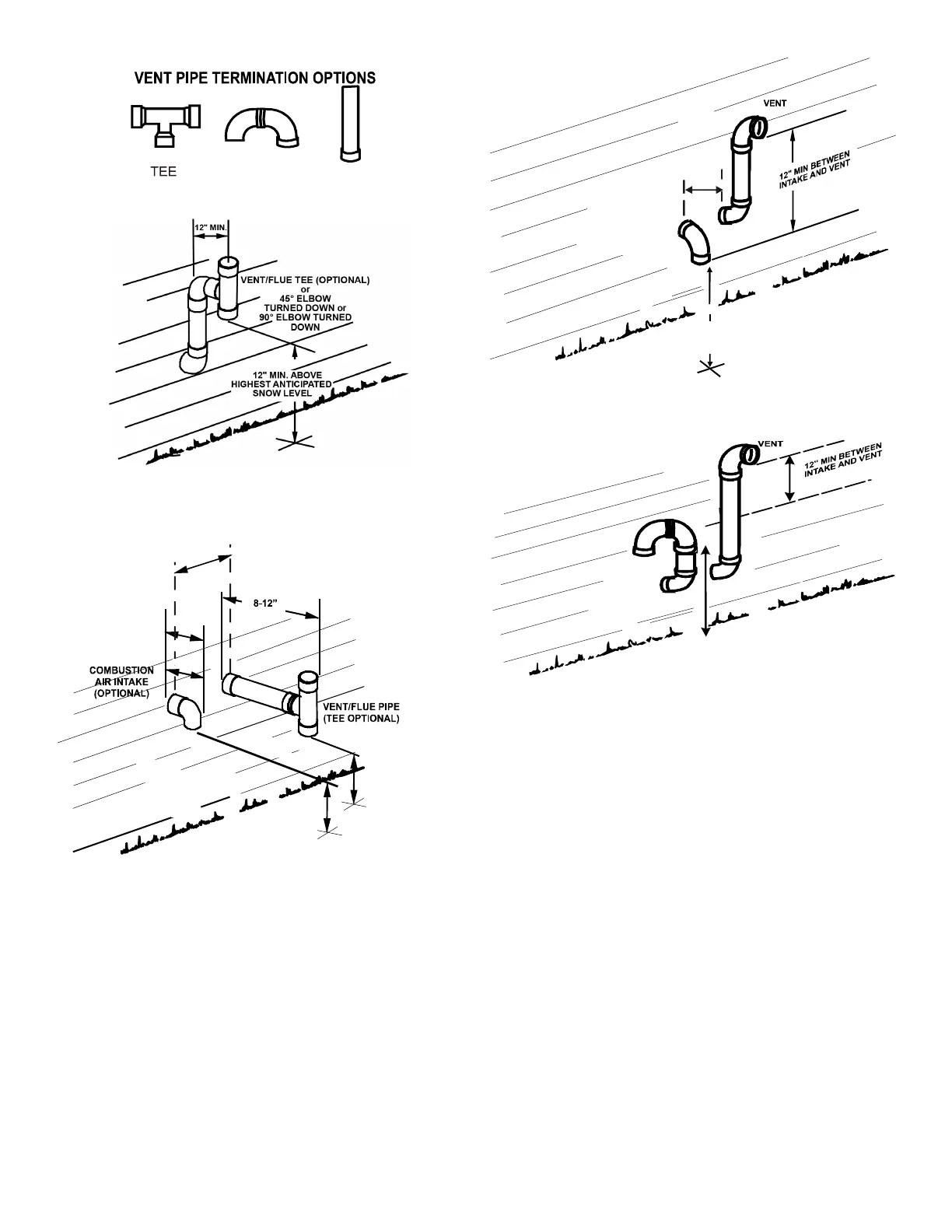

Center to center = 10” min / 24” max.
Vertical separation: 0” - 24”
Vent termination from wall = 8” min / 12” max.
Combustion air intake from wall = 6” max.
Vent and intake clearance to ground or anticipated snow
level = 12” min.
ELBOW
6” MAX
