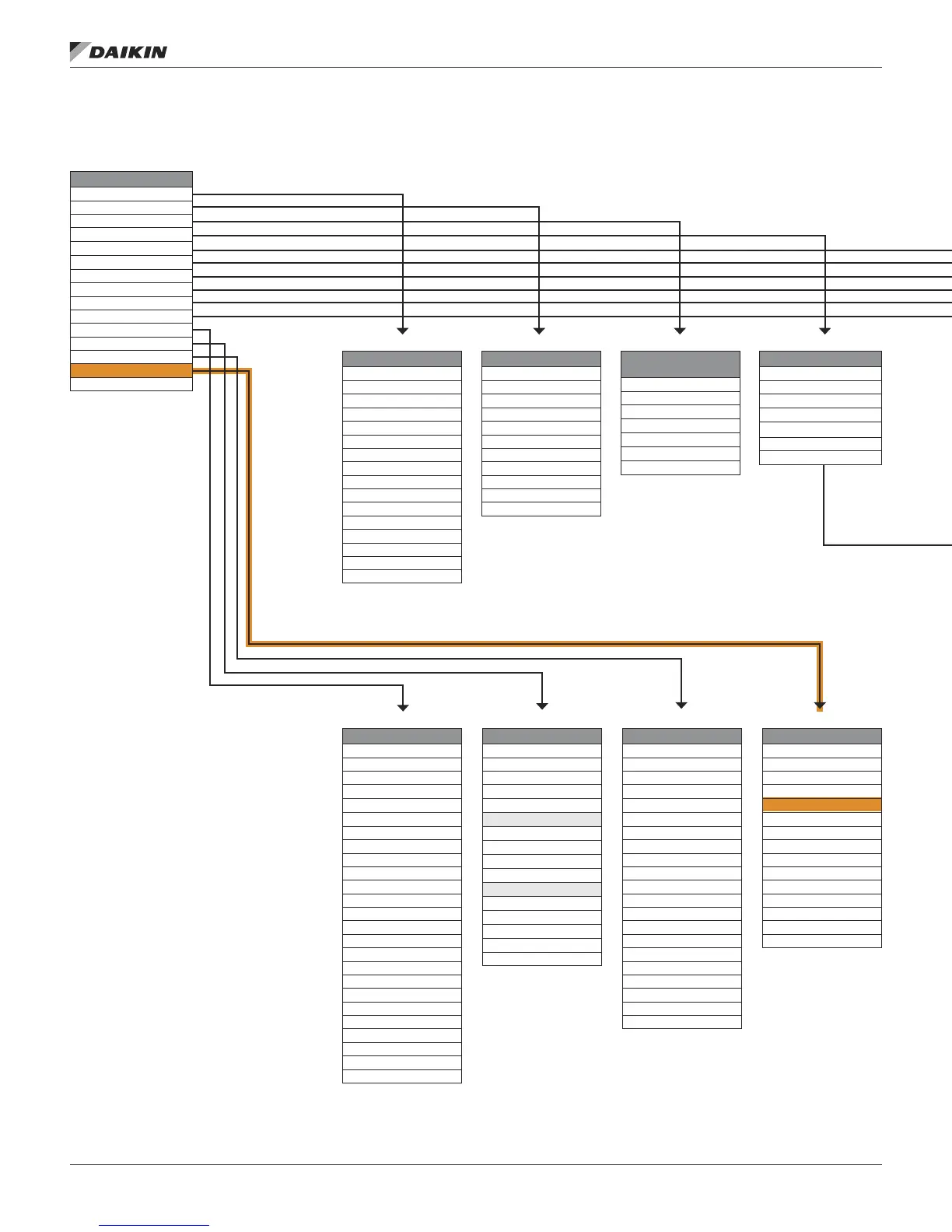

Figure 84: Service Menu – Keypad/Display Menu Structure
Operating Hours
Supply Fan= XXXXXh
Ret/Exh Fan= XXXXXh
Cmp Cooling= XXXXXh
INV Comp= XXXXXh
Comp 3= XXXXXh
Heating= XXXXXh
Cmp Heating= XXXXXh
Economizer= XXXXXh
Tnt Override= XXXXXh
Dehumid= XXXXXh
ER Wheel= XXXXXh
Active Alarms
Alm Count: xx Clr Alms= No
+Alarm 1: Alarm Type
►
+Alarm 2: Alarm Type
►
●
●
●
+Alarm 10: Alarm Type
►
Timer Settings
Service Time= 0min
Start Up= 180s
Recirculate= 180s
Zero OA Time= 0min
Tnt Override= 120min
Post Heat= 0s
Pwd Timeout= 10min
Low DAT= 6min
ClgStateDelay= 300s
Bypass Valve= 300s
Clg Stg Time= 5min
Htg Stg Time= 5min
MinExStrtTm= 120s
MinExStopTm= 120s
ER Whl Stg Tm= 5min
ER Whl Off Tm= 20min
Modbus Status
SF MB Status=_________
RF/EF MB Status=______
ER MB Status=________
IFB MB Status=________
OF Status= ___________
VCMP MB STATUS
SAF VFD Ex Flt=
RXF VFD Ex Flt=
ER VFD Ex Flt=
OF VFD Ex Flt=
D3 MB STATUS
MB Resistance=
ECM CONFIG
D3 MB Status=_________
MB Resistance= Yes
ECM Cong= Done
D3 Status
D3 Comm Sts= ________
D3 Addr Err= __________
D3 On/Off= ___________
D3 Mode= ____________
D3 Clg Spt= XXX.XºF
D3 Htg Spt= XXX.XºF
D3 Fan Spd= __________
D3 Min Load= XXX%
D3 Max Load= XXX%
D3 Eco Ena= __________
D3 OA Enthalpy= XXXBTU/lb
OA Hum Ratio= g/kg
D3 SWVers= XXXXXXXXXX
OAAdd1–16= __________
OAAdd17–32= _________
OAAdd33–49= _________
OAAdd50–64= _________
SetOAAddr= XX
CurrOAAddr= XX
CurrOAAmps= XXXA
CurrOARLA= XXXA
Sensor Offsets
Disch Air= 0.0ºF
Return Air= 0.0ºF
OA Temp=
Space Temp= 0.0ºF
OA Temp= 0.0ºF
EF/LC Temp= 0.0ºF
ER LAT= 0.0ºF
ER EAT= 0.0ºF
DRT1= 0.0ºF
DRT2= 0.0°F
DRT3= 0.0ºF
SRT= 0.0ºF
DFT= 0.0ºF
IRT= 0.0ºF
ORT= 0.0ºF
Network Input Status
Net OAT In= XXX.XºF
Net Space In= XXX.XºF
NetCurrState= _________
NetNextState= _________
NetTmToNxtSt= XXXXXmin
Net App Mode= ________
Net Cl Ena Sw= X.X
Net Cl Ena VI= XXX%
Net Ht Ena Sw= X.X
Net Ht Ena VI= XXX%
Net Ec Ena Sw= X.X
Net Ec Ena VI= XXX%
Net SAF Cap= XXX%
Net ExhF Cap= XXX%
Net Space IAQ= XXXXPPM
Net Rel Humid= XXX%
Net DATClgSpt= XXX.XºF
Net DATHtgSpt= XXX.XºF
nviSetpoint= XXX.XºF
OccManCmd= _________
Net Min OA= XXX%
nvoEffSpt= XXX.XºF
nciOccClgSpt= XXX.XºF
nciOccHtgSpt= XXX.XºF
nciHVACType= _________
Save/Restore
Settings
Save Params=
Rstr Params=
Rstr Factory=
SaveToCard=
LoadFromCard=
Create Trace=
Trace to SD=
Service Menus
Timer Settings
►
Operating Hours
►
Save/Restore Settings
►
Active Alarms
►
Alarm Log
►
Alarm Conguration
►
Analog Input Status
►
Universal I/O Status
►
Digital Input Status
►
Digital Output Status
►
Network Input Status
►
Modbus Status
►
D3 Input Status
►
Sensor Offsets
►
Reset Counte= XXXX
IM 1125-7 • REBEL ROOFTOPS 116 www.DaikinApplied.com
appendIx – keypad/dIsplay Menu sTruCTure
