Daikin DPS005 - Manual Control; Commission Unit

For more detail go to:
Figure 84, page 116
For more detail go to:
Figure 83, page 114
For more detail go to:
Figure 86, page 118
For more detail go to:
Figure 85, page 118
Manual Control
Manual Control= Normal
Supply Fan= Off
SAF Spd Cmd= 0%
INV/OF Ena= Off
INV Comp= Off
INV Spd Cmd= 0%
Comp 3= Off
OA Fan= Off
OA Fan Cmd= 0%
4 Way Valve= Cool
RcvrSol Valve= Closed
BP Sol Valve= Closed
EVI Cmd= 0%
EVO Cmd= 0%
RF/EF VFD= Off
RF/EF Spd Cmd= 0%
Var Cmp=
Var Cmp Cmd=
VComp Emg Stop=
Htg Valve= 0%
SCR Out= 0%
Htg Stg 1= Off
SCR Ena 1= Off
Htg Stg 2= Off
Htg Stg 3= Off
Htg Stg 4= Off
Reheat Valve= 0%
RH Output=
ERec Wheel= Off
ER Whl Cmd= 0%
ER BP Dmpr Cl= Off
ER BP Dmpr Op= Off
Alm Output= Off
Fan Op Out= Off
Unit Maintenance
Operating Hours
BMS Communications
LON Set-Up
►
BACnet MSTP Set-Up
►
BACnet IP Set-Up
►
D-Net Set-Up
►
Network Unit Set-Up
►
Commission Unit
Unit Set-Up
►
Timer Settings
►
SAF Set-Up
►
RF/EF Set-Up
►
Htg/Clg ChgOvr Set-Up
►
Cooling Set-Up
►
INV Cmp Set-Up
►
Econo Set-Up
►
Min OA Set-Up
►
Heating Set-Up
►
OA Fan Set-Up
►
Exp Valve Set-Up
►
Defrost Set-Up
►
Dehum Set-Up
►
Energy Rec Set-Up
►
D3 Set-Up
►
Alarm Conguration
►
Service Menus
Timer Settings
►
Operating Hours
►
Save/Restore Settings
►
Active Alarms
►
Alarm Log
►
Event Log (65300)
Data Snapshots (65500)
Alarm/Event Cong
Analog Input Status
►
Universal I/O Status
►
Digital Input Status
►
Digital Output Status
►
Network Input Status
►
Modbus Status
►
IP Set Up
D3 Status
►
Sensor Offsets
►
Reset Counte= XXXX
Last Reset Info
Trending
Trending Ena= No
Apply Chgs= No
Sample Time= 300s
TrendOnOff= Off
Auto Exp Time=
Export Data= No
Clear Trend= Done
Trend Full=
Points 1–8 (Fixed)
►
Points 9–24 (from List)
►
Points 25–27 (with IDs)
►
Points 28–30 (with IDs)
►
www.DaikinApplied.com 111 IM 1125-7 • REBEL ROOFTOPS

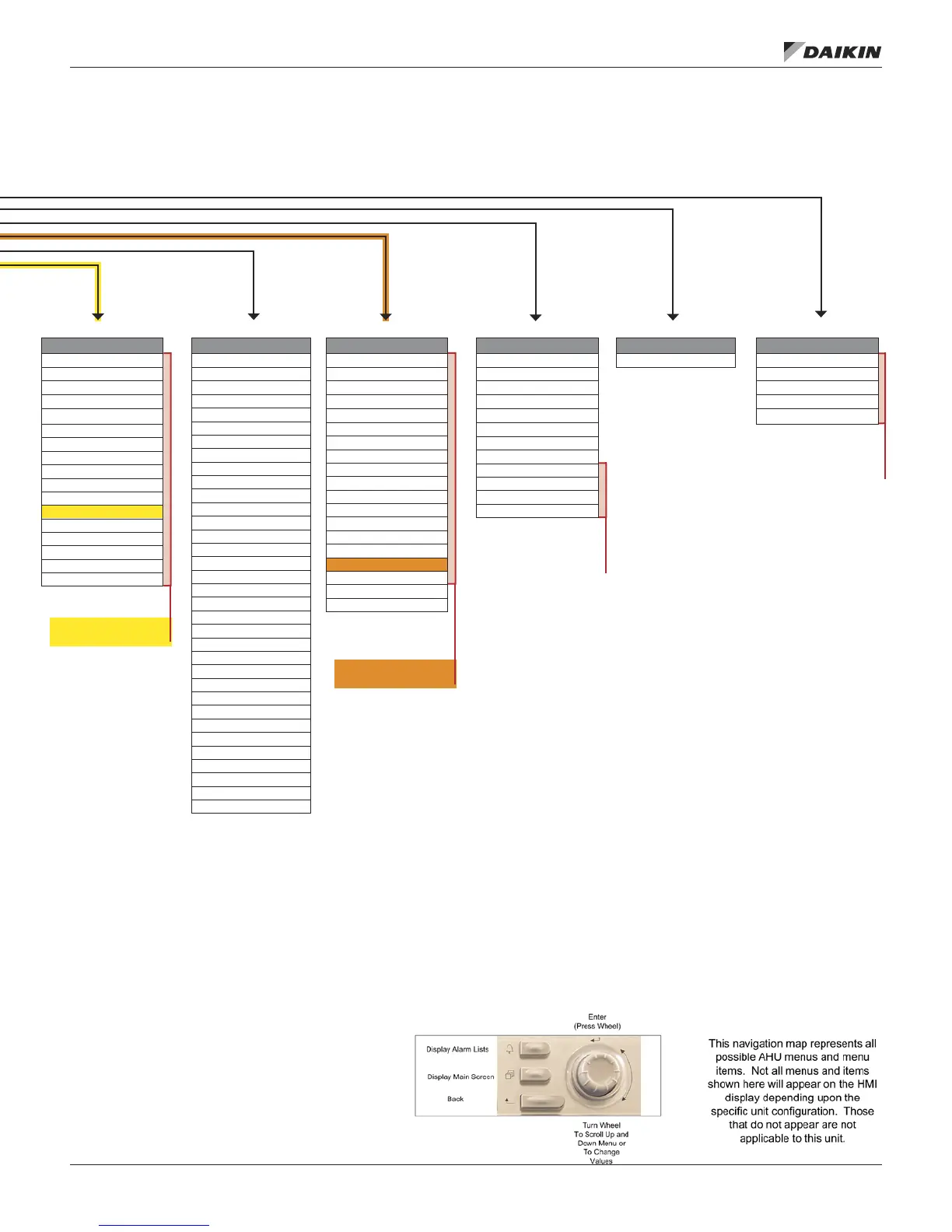

appendIx – keypad/dIsplay Menu sTruCTure
