1, 2 See Figure 84, page 117 for
the expansion information
INV Cmp Set-Up
COMPRESSOR STATUS COMPRESSOR SETUP
Clg State= ____________ Clg Lo OAT Lk= 55°F
Htg State= ____________ Htg Lo OAT Lk= 0.0ºF
INV Cmp Spd= XXX.X% Htg Hi OAT Lk= 55.0ºF
INV Spd Cmd= XXX.X% EffHtgOATLk= 55.0ºF
VCmp Oil Status= OAT Diff= 2ºF
Comp 3=_____________ INV Period= 20s
Fault Code Details
►
INV Gain= 2.5
INV Port Temp= XXX.XºF INV PAT= 10s
INV Fin Temp= XXX.XºF INV Max Chg= 15%
INV Amps= XX.XA Oil Management=
REFRIG CIRCUIT STATUS Low Oil Time=
PTS= XXX.Xpsi Oil Boost Time=
PTD= XXX.Xpsi Inv Man Dsbl=
4 Way Valve=__________ Comp 3 Man Dsbl=
RcvrSol Valve=_________ VFD Status=
BP Sol Valve=_________ VFD Alm/Wrn=
IFB COMM STATUS
►
Cooling Set-Up
Clg Stage Time= 5min
Clg DB= 2.0°F
Clg Lo OAT Lk= 55ºF
OAT Diff= 2.0°F
Clg Reset= None
Min Clg Spt= 55.0°F
Min Clg Spt @= 0
Max Clg Spt= 65.0°F
Max Clg Spt@= 100
Unocc Diff= 3°F
Htg/Clg ChgOvr Set-Up
Ctlr Temp Src= RAT
Use Tstat Spt= No
Occ Clg DB= 2.0°F
Clg Period= 60s
Clg Gain= 0.1
Clg PAT= 600s
Max Clg Chg= 5.0°F
Occ Htg DB= 2.0°F
Htg Period= 60s
Htg Gain= 0.1
Htg PAT= 600s
Max Htg Chg= 5.0°F
Cal D Rem Spt @10°C=
Cal D Rem Spt @50°F=
Cal D Rem Spt @30°C=
Cal D Rem Spt @80°F=
Demand Shed=
Clg Demd Shed=
Htg Dmd Shed=
Clg Shed Rate=
Htg Shed Rate=
RF/EF Set-Up
RF/EF Ctrl= None
SPEED CONTROL
Rem ExhF Cap= 5%
Rem RAF Cap
BSP CONTROL
BSP DB= 0.010in
BSP Period=
BSP Gain=
Max Spd Chg=
RF/EF SET UP
RFEF Ctrl Dly=
Min Speed=
MinExStrtTm=
MinExStopTm=
MinExOAPos=
MinExSAFCap=
ExhOnOAPos= 40%
ExhMxOAPos= 100%
Max Vent Spd= 100%
Max RFEF RPM= 2600
ECM Status= _________
Exp Valve Set-Up
EXP VALVE STATUS EXP VALVE SETUP
EVI Pos= XXX% SSH DB= 2.0ºF
EVO Pos= XXX% SH Lo Base= 5.0ºF
EVStatus=____________ SH Hi Base= 9.0ºF
REFRIG CIRCUIT STATUS Htg EVI Meth= SbC
PTS= XXX.Xpsi IC SC Spt= 9.0ºF
PTD= XXX.Xpsi IC SC DB= 2.0ºF
Suction SH= XX.XºF HtgSC EVI Min= 0%
Discharge SH= XX.XºF Clg EVO Meth= SbC
Subcooling= XX.X°F OC SC Spt= 9.0ºF
Eff SSH Spt= XX.X°F OC SC DB= 2.0ºF
EffSH Base= XX.X°F ClgSC EVO Min= 0%
Eff SC Spt= XX.X°F ManCtrl EV Op= Auto
Eff SC Lo Lmt= XXX%
SRT= XXX°F
Disch Sat Tmp= XXX.X°F
Sucn Sat Tmp= XXX.X°F
IRT= XXX°F
ORT= XXX°F
Dehum Set-Up
Dehum Method= None
RH DB= 2%
Dewpoint DB= 2°F
RH Period= 30s
RH Gain= 1
LCS Lo Gain=
RH PAT= 30s
RH Max Chg= 10%
Dehum Ctrl= Occupied
Sensor Loc= Return
Mn Lvg Coil T= 45.0°F
Mx Lvg Coil T= 52.0°F
Min Rheat Spt= 55.0°F
Max Rheat Spt= 65.0°F
RH Sens Type= VDC
RH Min Sig= 0V
RH Max Sig= 10V
Min Dehum Spd= 33%
Max Dehum Spd= 100%
RH Min Pos= 15%
RH Dec Rate= 1.0%/s
RH OutMaxV=
BackUp RH Ena=
D3 Set-Up
Itouch Vers= __________
Unit D3 Addr= 1–00
Set D3 Addr= No
OA Unit Num= 0
OA Unit Amps= 0
OA Unit Addr= 0
Set OA Unit= No
Rst All OA= No
Min Load= 20%
Max Load= 50%
HiCapReset= No
DATLoDiff= 10.0ºF
Eco Method= None
DATHiDiff= 10.0ºF
OA Enth Max= 25.5 BTU/lb
OA Hum Max= 0.0107lb/lb
OAT Max= 84ºF
Temp Display= DAT
Low Speed= 33%
Med Speed= 66%
Hi Speed= 100%
Defrost Set-Up
Defrost State= _________
Manual DF= No
MinCmpOpTm= 10min
MinAccCmpTm= 40min
MaxFrostTm= 120min
Defrost Temp= XXºF
Tdef Adj= 0.0ºF
CmpOpTime= XXXmin
AccCmpOpTm= XXXmin
LoFrstAccTm= XXXmin
HiFrstAccTm= XXXmin
Energy Rec Set-Up
Energy Rcvy= Yes
ER Wheel= ___________
Wheel Speed= XXX%
Whl Spd Cmd= XXX%
ER LAT= XXX°F
ER EAT= XXX°F
Min ExhT Diff= 2.0°F
Max ExhT Diff= 6.0°F
ER Whl Stg Tm= 5min
ER Whl Off Tm= 20min
Rel Humidity= XXX%
Min Whl Spd= 5%
Intersect Pt= XXX.XºF
Fst Mgnt Meth= Timed
OA Frst Temp= -5.0°F
Defrost Time= 5min
Defrost Period= 60min
Defrst On Tm= 1s
Defrst Off Tm= 24s
ER Whl Period= 30s
ER Whl Gain= 1.0
ER Whl PAT= 30s
ER Whl Chg= 10%
Lo ERLAT Cnplk=
Cap Limiting=
1
2
www.DaikinApplied.com 115 IM 1125-7 • REBEL ROOFTOPS

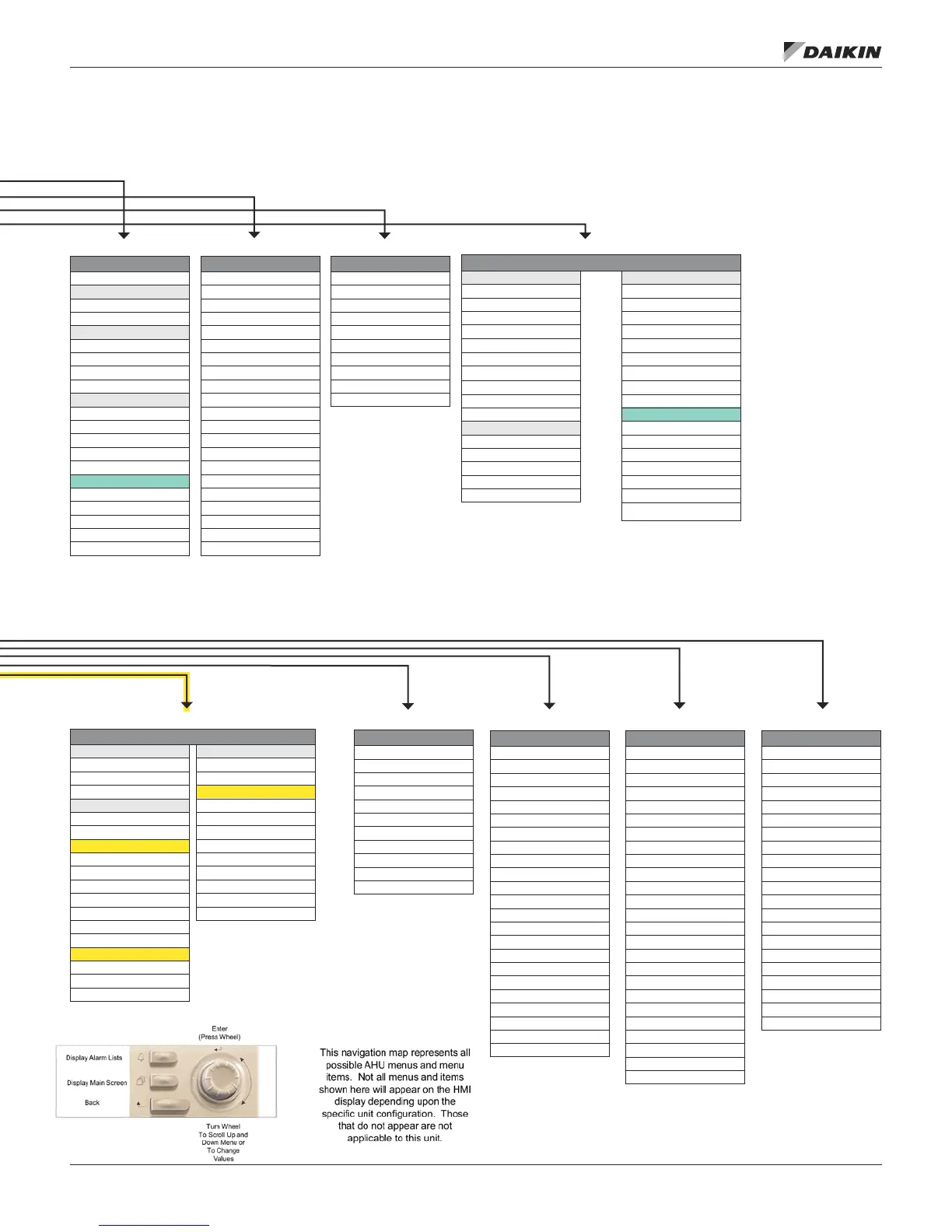

appendIx – keypad/dIsplay Menu sTruCTure
