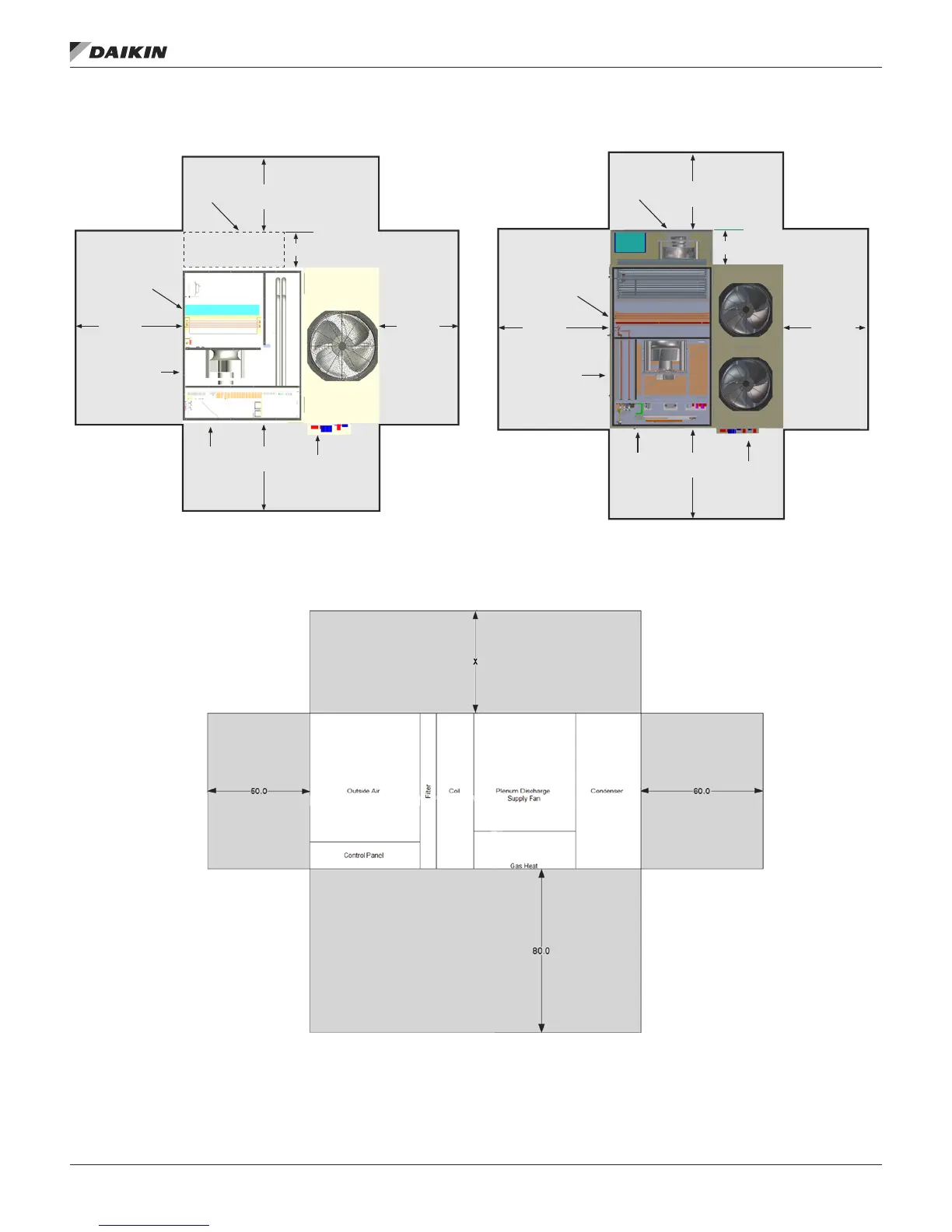

Figure 1: Service Clearances
48.00
(1219 mm)
50.00
(1270 mm)
17.00 (431 mm)
60.00
(1524 mm)
Filter
Access
Exhaust
Fan Access
Outdoor Air
Hood
Supply Fan
Access
Control
Panel
Access
Gas
59.2"
(1504 mm)
36.00
914 mm)
48.00
(1219 mm)
50.00
(1270 mm)
21.00 (533 mm)
60.00
(1524 mm)
Filter
Access
Exhaust
Fan Access
Outdoor Air
Hood
Plenum Discharge,
Electric Heat &
Supply Fan Access
Control
Panel
Access
Gas
59.2"
(1504 mm)
36.00
(914 mm)
Small Cabinet
003—006
Medium Cabinet
007—015
Large Cabinet
016—028
