3 | Components
Service manual
183
EBLA09~16DA + EDLA09~16DA
Daikin Altherma 3 M
ESIE20-06A – 2021.03

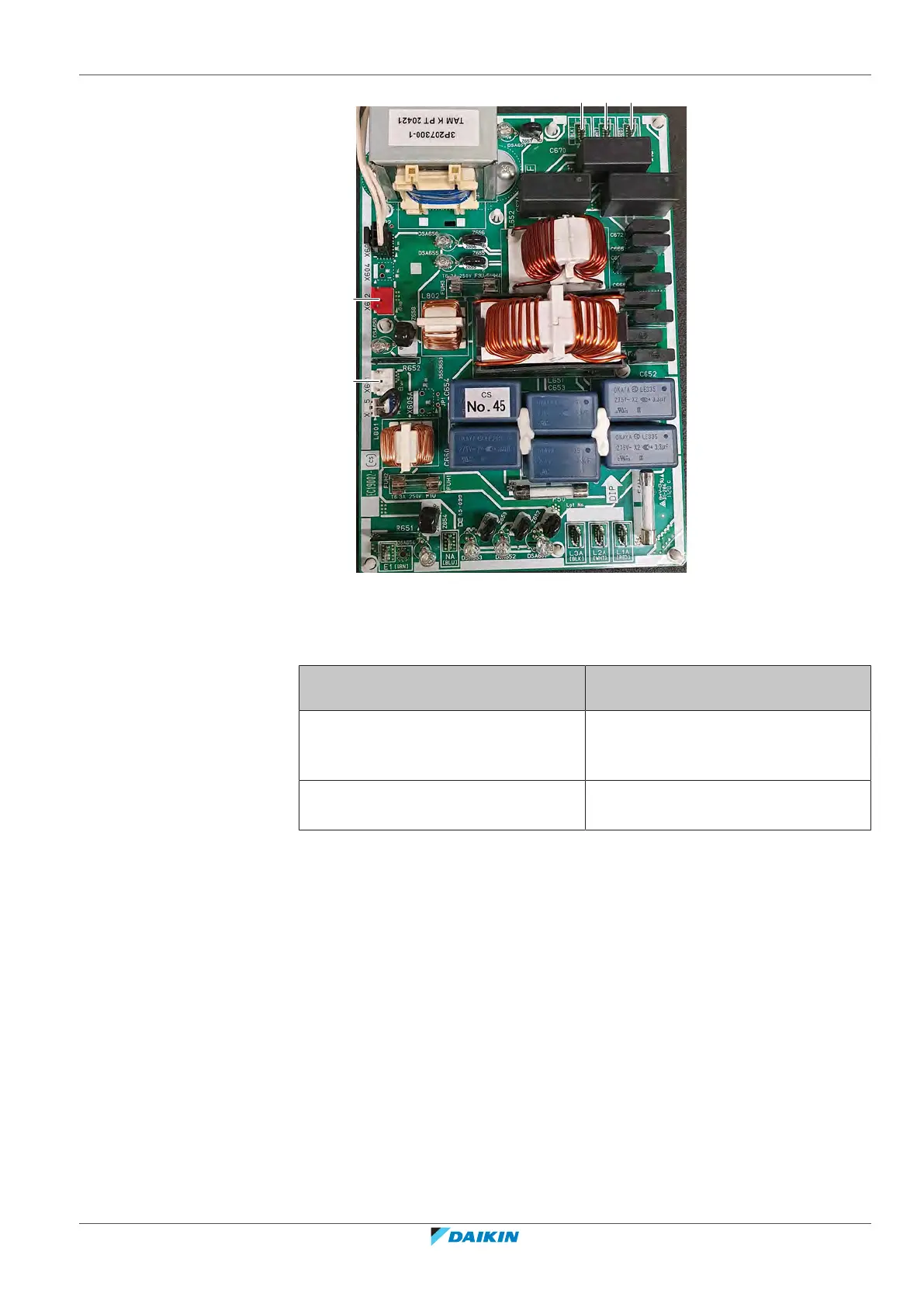

ab
c
d
e
a L1B
b L2B
c L3B
d Connector X601
e Connector X602
Is the output voltage on the noise filter
PCB correct?
Action
Yes Correct the wiring between the main
PCB and the noise filter PCB, see
"4.1.2Repair procedures"[4286].
No Perform a check of the noise filter PCB,
see "Checking procedures"[4204].
To check the HAP LED of the main PCB
Prerequisite: First check the power supply to the main PCB, see "Checking
procedures"[4181].
1 Locate the HAP LED on the main PCB.
