6 | Technical data
Service manual
337
EBLA09~16DA + EDLA09~16DA
Daikin Altherma 3 M
ESIE20-06A – 2021.03

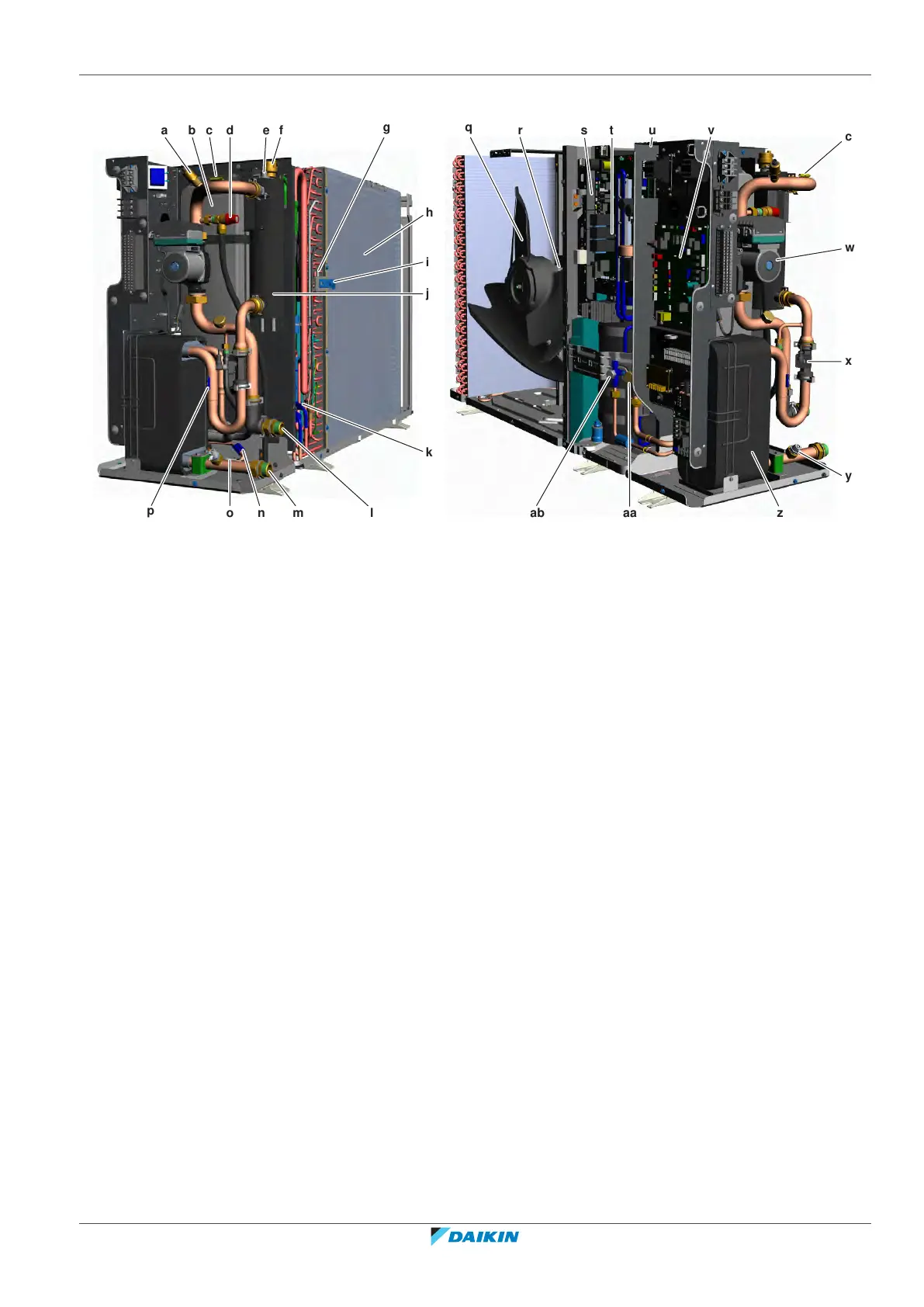

6.4.3 Component overview: Three phase with backup heater
q
w
x
y
zaaab
g
h
j
k
l
p
a b c d e f
i
mno
r s t u v
c
a Water pressure sensor B1PW o Inlet water thermistor R4T
b Expansion vessel p Outlet water after plate type heat exchanger
thermistor R1T
c Outlet water after backup heater thermistor R2T q Fan
d Safety valve r Fan motor M1F
e Backup heater thermal protector s Switch box with noise filter PCB A2P on back side
f Automatic air purge valve t Main PCB A1P
g Heat exchanger (middle) thermistor R5T u Hydro box
h Heat exchanger v Hydro PCB A1P
i Air thermistor R1T w Water pump
j Backup heater x Water flow sensor B1L
k Heat exchanger thermistor R4T y Drain valve
l Water outlet z Plate type heat exchanger
m Water inlet aa Gas stop valve with service port
n Refrigerant liquid thermistor R3T ab Liquid stop valve with service port
