6 | Technical data
Service manual
335
EBLA09~16DA + EDLA09~16DA
Daikin Altherma 3 M
ESIE20-06A – 2021.03

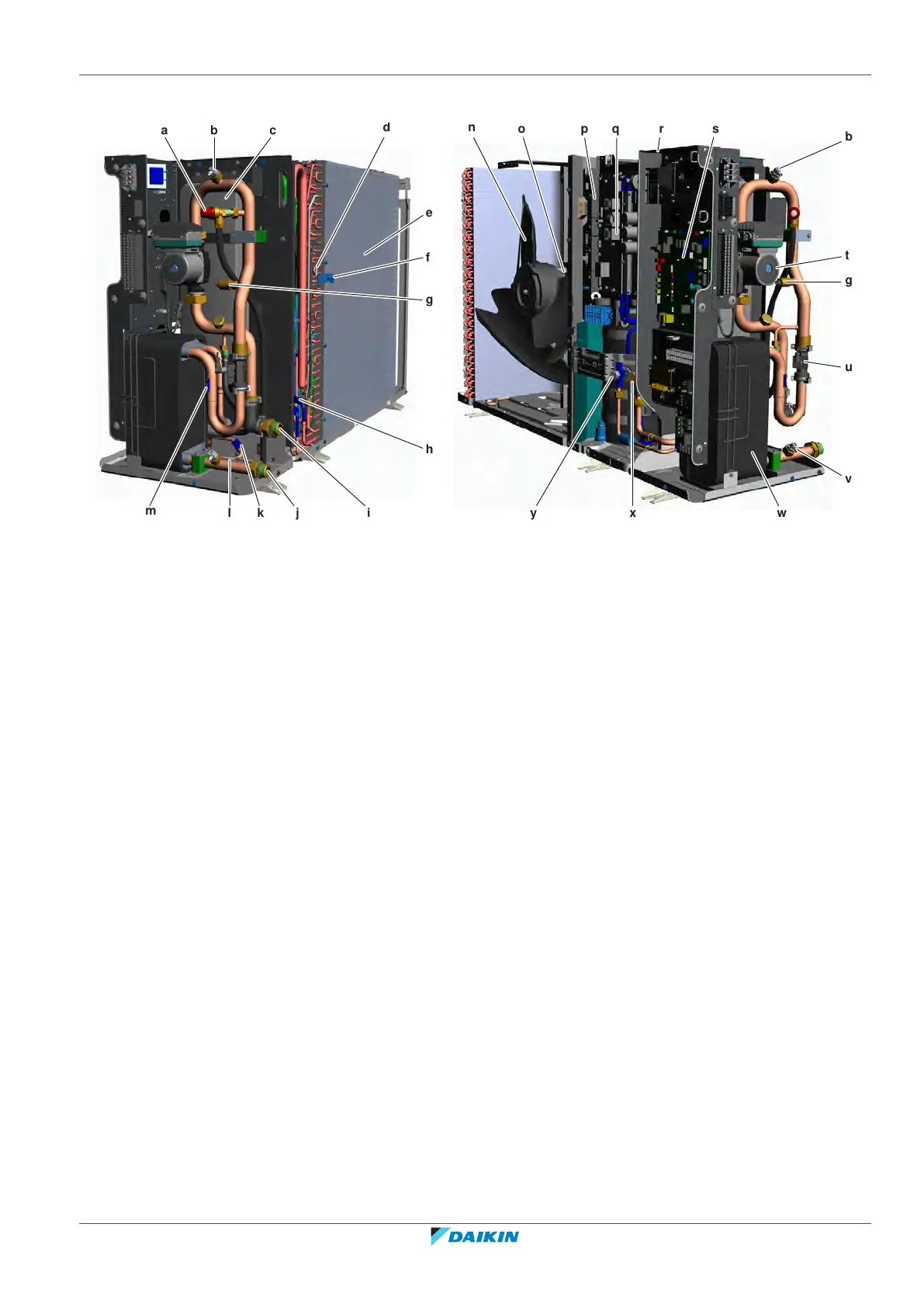

6.4.2 Component overview: Single phase without backup heater
n
t
u
v
wxy
d
e
g
h
i
m
a cb
f
jkl
o p q r s
b
g
a Safety valve n Fan
b Manual air purge valve o Fan motor M1F
c Expansion vessel p Switch box with noise filter PCB A2P on back side
d Heat exchanger (middle) thermistor R5T q Main PCB A1P
e Heat exchanger r Hydro box
f Air thermistor R1T s Hydro PCB A1P
g Water pressure sensor B1PW t Water pump
h Heat exchanger thermistor R4T u Water flow sensor B1L
i Water outlet v Drain valve
j Water inlet w Plate type heat exchanger
k Refrigerant liquid thermistor R3T x Gas stop valve with service port
l Inlet water thermistor R4T y Liquid stop valve with service port
m Outlet water after plate type heat exchanger
thermistor R1T
