1 Remove the required plate work, see "3.17Plate work"[4230].

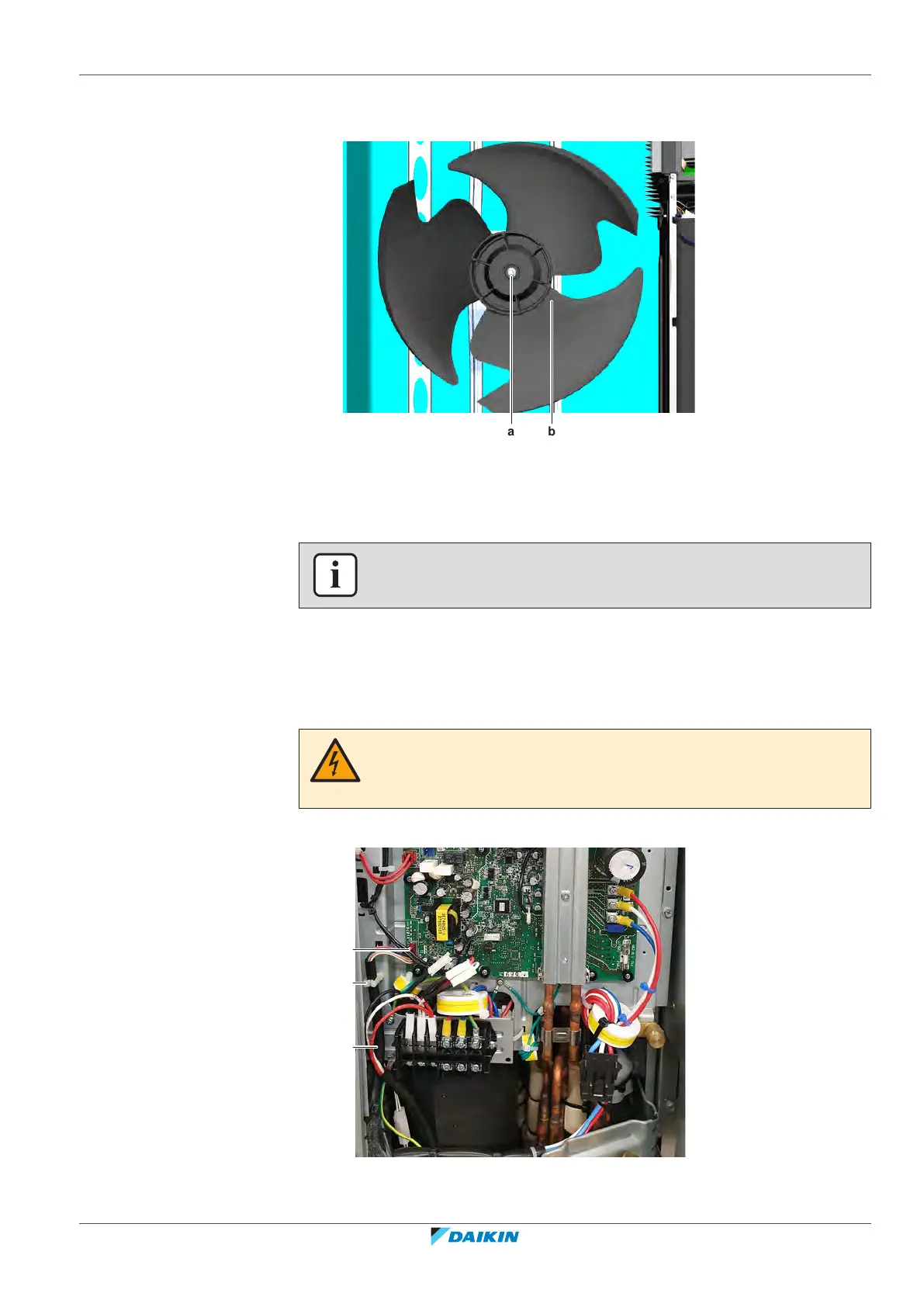

2 Remove the nut that fixes the propeller fan blade assembly.
a b
a Nut
b Propeller fan blade assembly
3 Pull and remove the propeller fan blade assembly from the DC fan motor
assembly.
INFORMATION
Use a pulley remover if the propeller cannot be removed manually.
4 To install the propeller fan blade assembly, see "Repair procedures"[4220].
To remove the DC fan motor assembly
1 Remove the propeller fan blade assembly from the DC fan motor assembly,
see "Repair procedures"[4220].
DANGER: RISK OF ELECTROCUTION
Confirm the rectifier voltage is below 10 V DC before proceeding, see "To prevent
electrical hazards"[4285].
2 Disconnect the DC fan motor connector X106A from the main PCB.
a
b
c
a DC fan motor connector X106A
b DC fan motor harness
c Wire clamp
