42 Photocatalytic Air Purifiers
Removal Procedure EDBE81-327
7.5 Removal of Fan Motor
Procedure Points
* The front panel has
been removed.
* The back cover has
been removed.

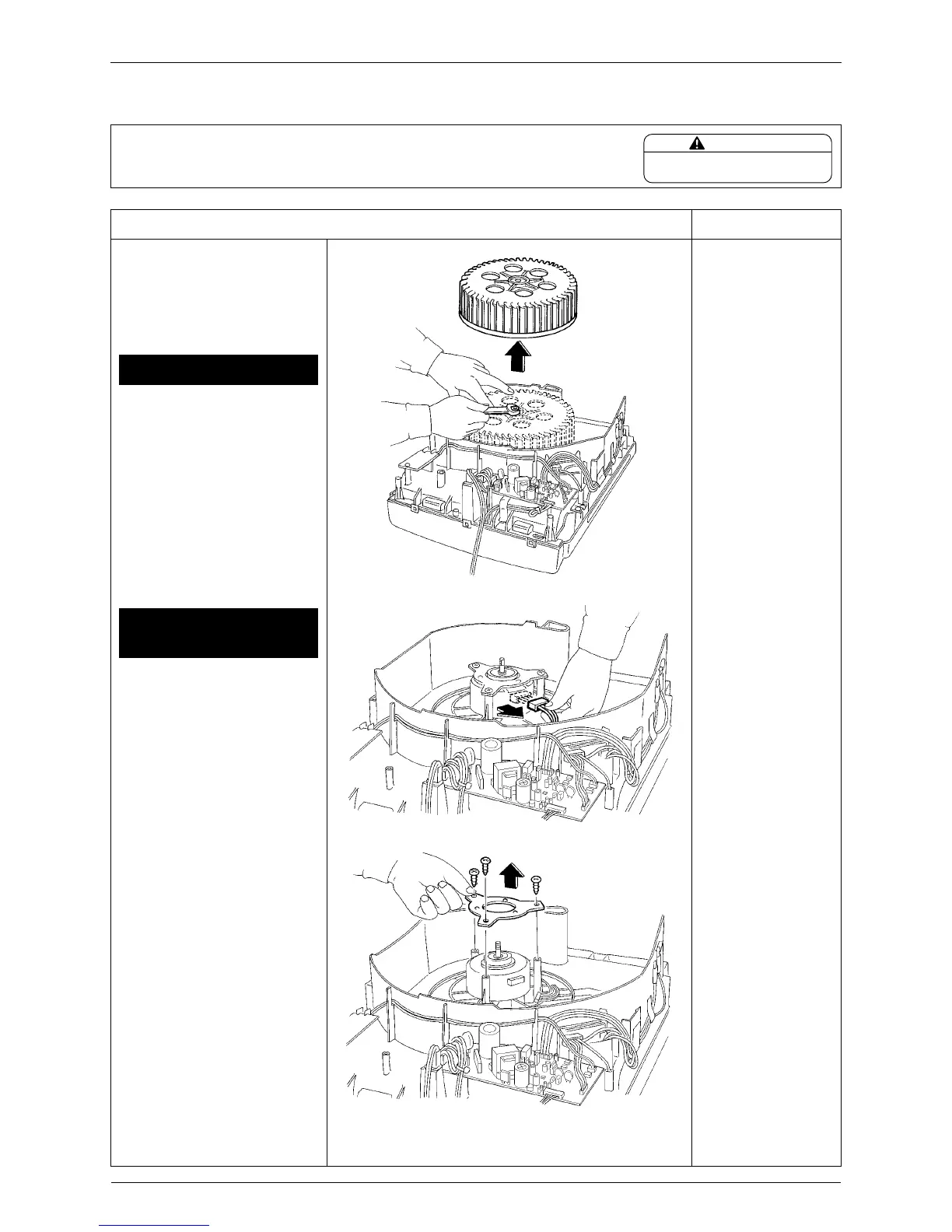

1. Removing the fan
* When assembling,
align the
T mark on
the fan with the D cut
on the motor shaft.
(1) Remove the nut and
pull out the fan.
2. Removing the fan
motor
(1) Disconnect the
connector.
(2) Remove the three
screws and detach
the motor mounting
plate for the fan
motor.
WARNING
Make sure the unit is disconnected from
any power source before disassembly.
