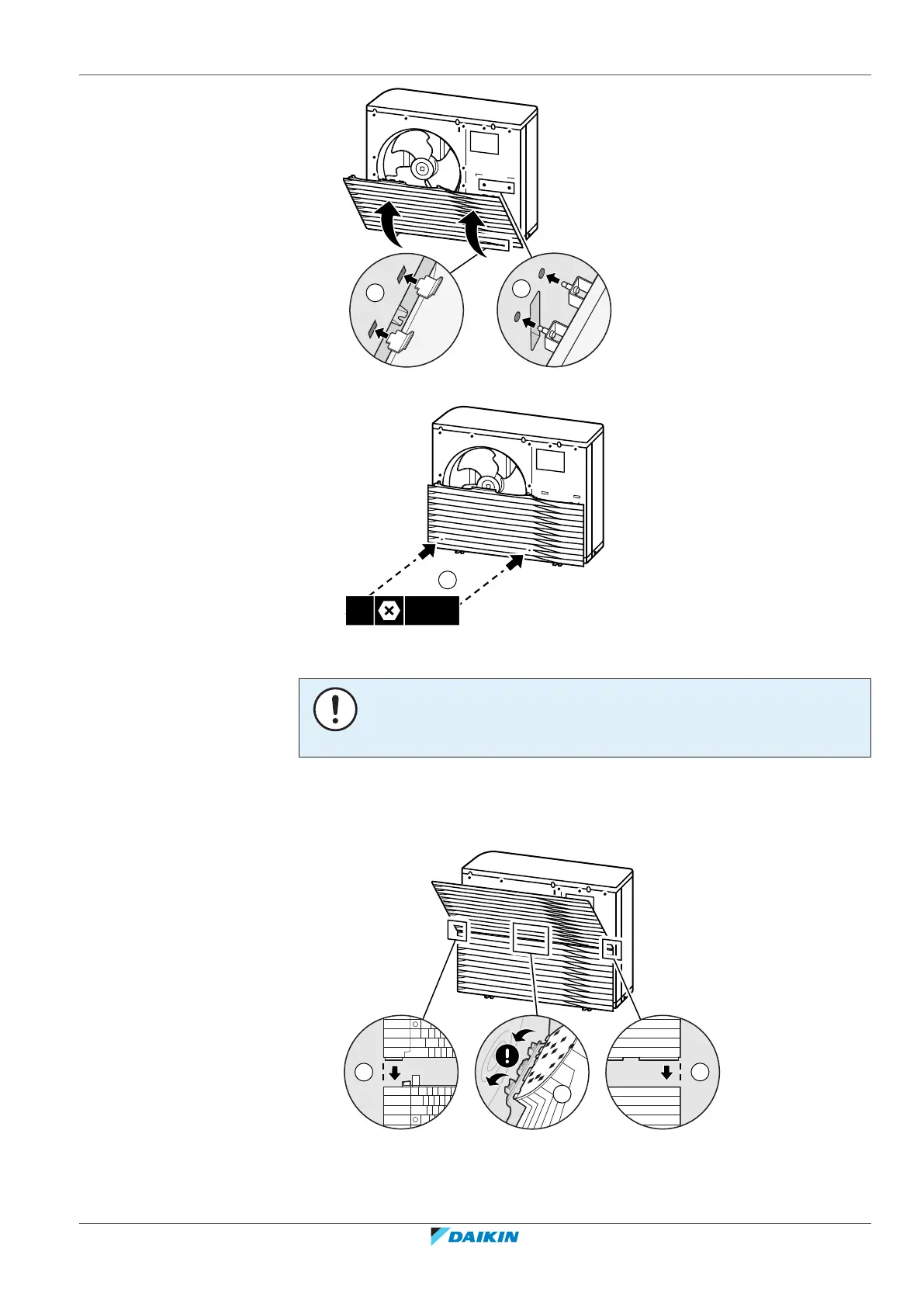

Install the upper part of the discharge grille
NOTICE
Vibrations. Make sure the upper part of the discharge grille is attached seamlessly to
the lower part to prevent vibrations.
4 Align and attach the left side.
5 Align and attach the middle part.
6 Align and attach the right side.
5
4
6
7 Insert the hooks.
8 Insert the ball studs.
