4 Unit installation
Installation manual
11
EWAA004~008D + EWYA004~008D
Packaged air-cooled water chillers
and packaged air to water heat pumps
4P688014-1D – 2022.10
4 Attach the ends of the cables.
5 Tighten the cables.

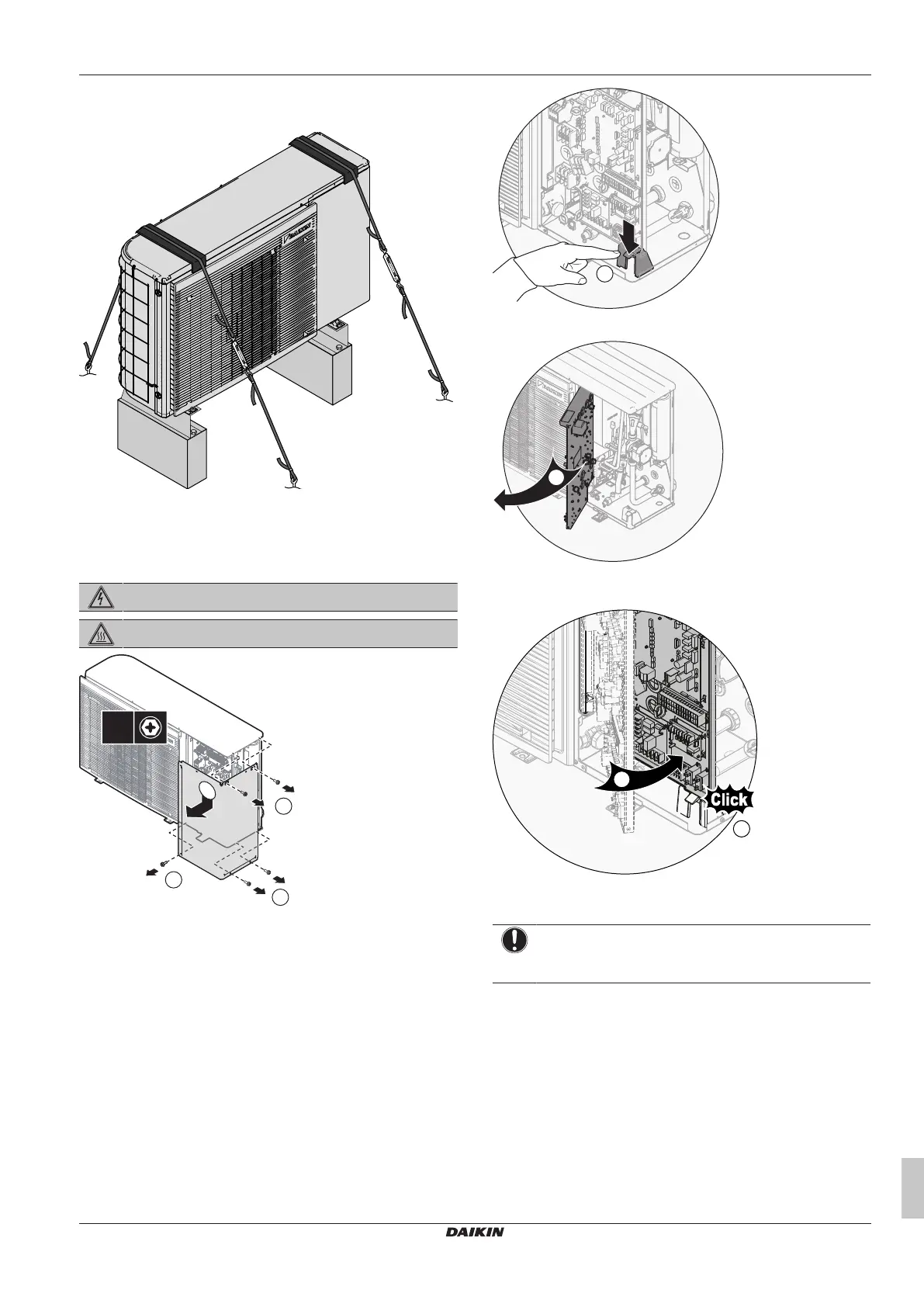

4.3 Opening and closing the unit
4.3.1 To open the outdoor unit
DANGER: RISK OF ELECTROCUTION
DANGER: RISK OF BURNING/SCALDING
1
1
1
5×
2
4.3.2 To rotate the switch box
During the installation, you will need access to the inside of the
outdoor unit. To have easier front access, rotate the switch box out
of the unit as follows:
Prerequisite: The front plate has been removed.
1 Push down the clip of the switch box holder.
1
2 Rotate the switch box out of the unit.
2
3 Rotate the switch box back until it engages properly in the
switch box holder.
3
4
4.3.3 To close the outdoor unit
NOTICE
Speed nut. Make sure the speed nut for the top screw is
correctly attached to the service cover.
