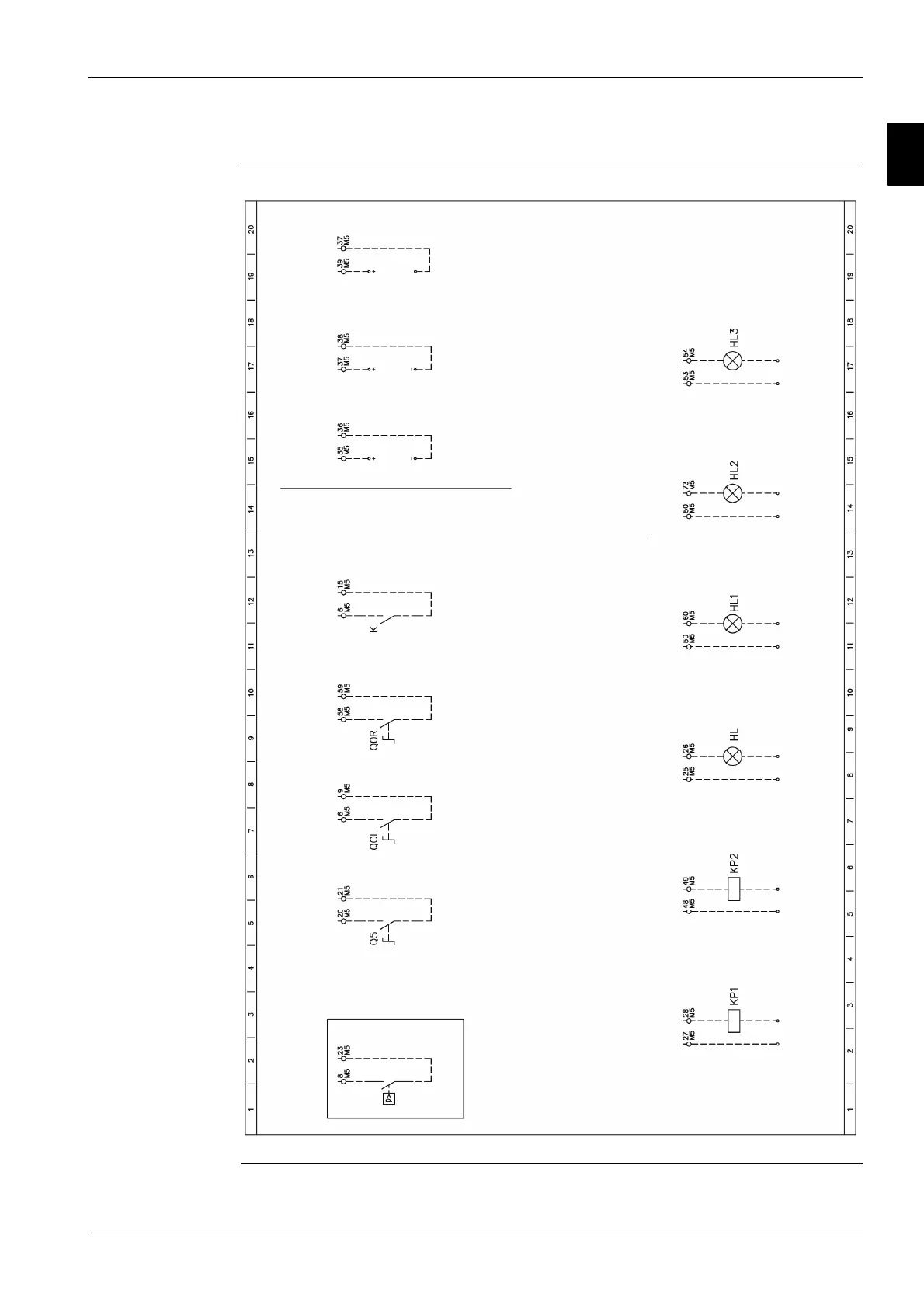

1.36.33 Field Wiring Connection
Digital input terminals Digital output terminals
Analog input terminals
OBLIGATORY
Flow switch
Double setpoint (remove wire “322”)
Pump#1 contact Maximum load: 2A-230VAC
External power
supply
(24VAC to 230VAC)
External power
supply
(24VAC to 230VAC)
External power
supply
(24VAC to 230VAC)
External power
supply
(24VAC to 230VAC)
External power
supply
(24VAC to 230VAC)
External power
supply
(24VAC to 230VAC)
Pump#2 contact Maximum load: 2A-230VAC
Unit Alarm NO (default) Maximum load: 2A-230VAC
Comp#1 Alarm NO (default) Maximum load: 2A-230VAC
Comp#2 Alarm NO (default) Maximum load: 2A-230VAC
Comp#3 Alarm NO (default) Maximum load: 2A-230VAC
Current limit enable (remove wire “418”)
ON-OFF Remote (remove wire “324”)
External fault (remove wire “323”)
Setpoint override
4 to 20mA
4 to 20mA
4 to 20mA
Demand limit Current limit
