English 1
CONTENTS
ILLUSTRATION ................................................... [1]
1. WHAT TO DO BEFORE OPERATION .......... 1
2. SAFETY CONSIDERATIONS........................ 1
3. OPERATION RANGE .................................... 3
4. INSTALLATION SITE .................................... 3
5. OPERATION PROCEDURE.......................... 4
6. OPTIMUM OPERATION................................ 5
7. MAINTENANCE
(FOR SERVICE PERSONNEL) ..................... 5
8. NOT MALFUNCTION OF THE AIR
CONDITIONER.............................................. 7
9. TROUBLE SHOOTING.................................. 7
Important information regarding the refrig-
erant used
This product contains fluorinated greenhouse gases
covered by the Kyoto Protocol.
Refrigerant type : R410A
GWP
(1)
value : 1975
(1)
GWP = global warming potential
Periodical inspections for refrigerant leaks may be
required depending on European or local legislation.
Please contact your local dealer for more information.
This operation manual is for the following systems with
standard control. Before initiating operation, contact
your Daikin dealer for the operation that corresponds
to your system.
NOTE
• Read the operation manual that came with the
remote controller you are using.
If your installation has a customized control system,
ask your Daikin dealer for the operation that corre-
sponds to your system.
• Heat pump type
This system provides cooling, heating, automatic,
program dry, and fan operation modes.

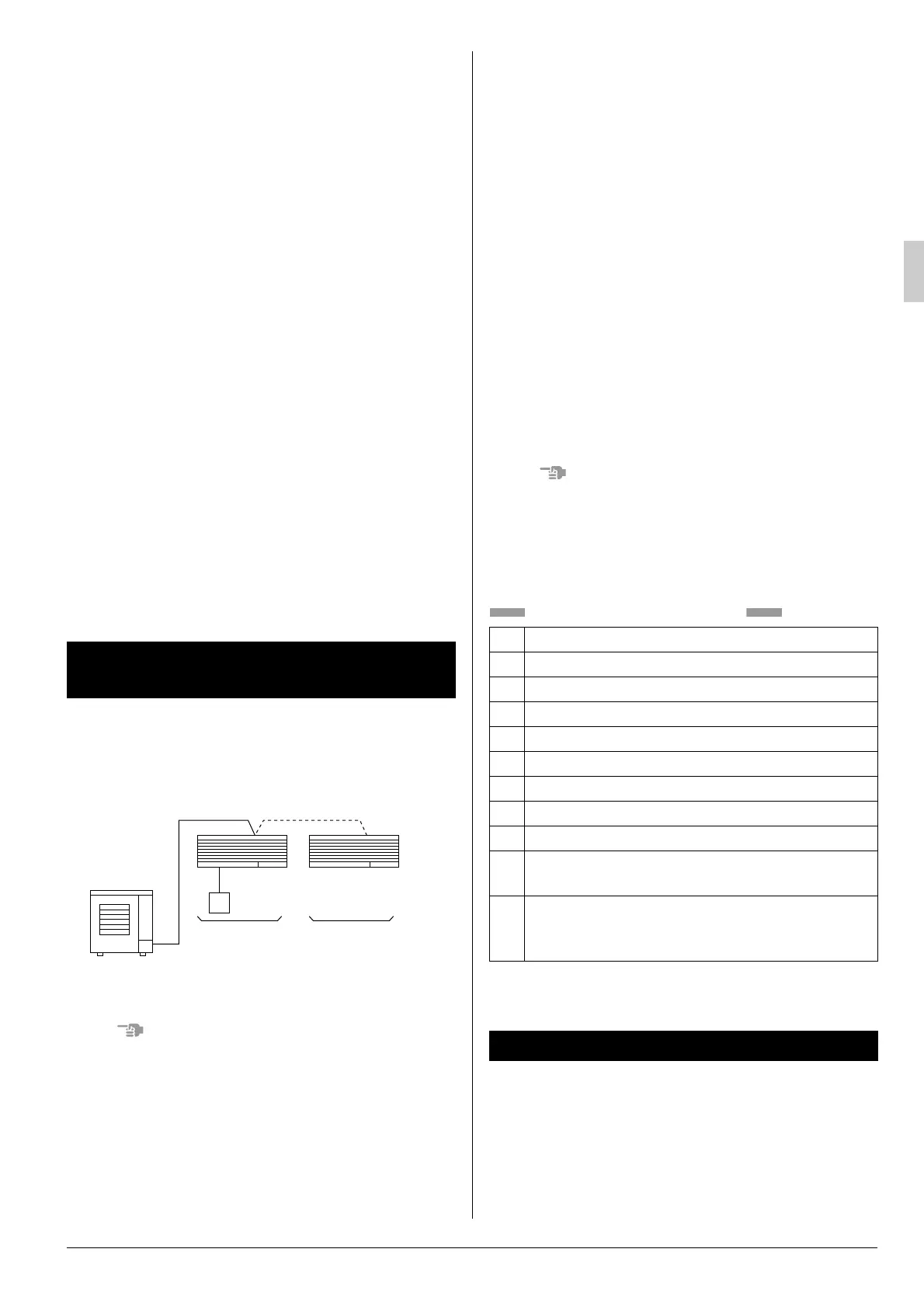

1. WHAT TO DO BEFORE OPERA-
TION
Indoor unit
Outdoor unit
Unit with
remote
controller
Unit without romote
controller
(When used as
simultaneous
operation system)
• Cooling only type
This system provides cooling, program dry, and
fan operation modes.
PRECAUTIONS FOR GROUP CONTROL
SYSTEM OR TWO REMOTE CONTROLLER
CONTROL SYSTEM
This system provides two other control systems
beside individual control (one remote controller con-
trols one indoor unit) system. Confirm the following if
your unit is of the following control system type.
• Group control system
One remote controller controls up to 16 indoor units.
All indoor units are equally set.
• Two remote controller control system
Two remote controllers control one indoor unit (In case
of group control system, one group of indoor units)
The unit is individually operated.
NOTE
• Contact your Daikin dealer in case of changing
the combination or setting of group control and
two remote controller control systems.
Refer to figure on page [1]
We recommend that you read this instruction man-
ual carefully before use to gain full advantage of the
function of the air conditioner, and to avoid malfunc-
tion due to mishandling.
This air conditioner comes under the term “appli-
ances not accesible to the general public”.
Names and functions of parts
a Indoor unit
b Outdoor unit
c Remote controller
d Inlet air
e Discharged air
f Air outlet
g Air flow flap (at air outlet)
h Refrigerant piping, connection electric wire
i Drain pipe
j
Air inlet
The built-in air filter removes dust and dirt.
k
Ground wire
Wire to ground from the outdoor unit to pre-
vent electrical shocks.
2. SAFETY CONSIDERATIONS
