Daikin FBA71A2VEB9 Installation Manual

5 Installation
Installation manual
10
FBA35~140A2VEB9+FBA35~71A2VEB9+ADEA35~125A2VEB
Split system air conditioners
4P456962-1D – 2018.08

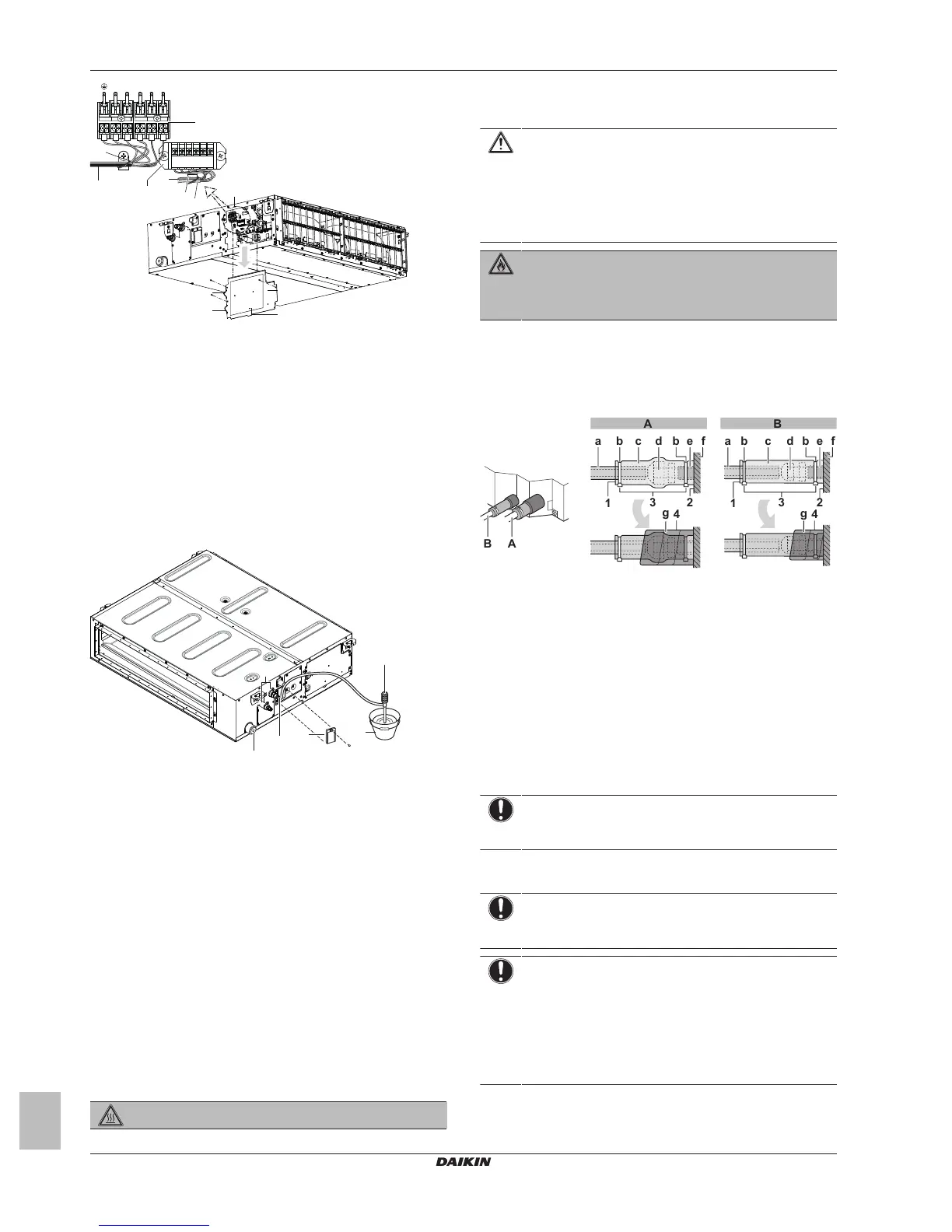

g
h
j
k
f
i
f
L N1 2 3
P1 P2 F1 F2 T1 T2
a
d
b
c
e
a Switch box cover
b Transmission wiring port
c Power supply wiring port
d Wiring diagram
e Switch box
f Plastic clamp
g User interface wiring
h Terminal board for unit transmission wiring
i Power supply wiring
j Power supply terminal board
k Transmission wiring between units
5 Turn ON the power.
6 Start cooling operation (see "7.2 To perform a test run" on
page13).
7 Gradually pour approximately 1 l of water through the air
discharge outlet, and check for leaks.
c
e
f
8
d
b
a
a Water inlet
b Portable pump
c Water inlet cover
d Bucket (adding water through water inlet)
e Drain outlet for maintenance
f Refrigerant pipes
8 Turn OFF the power.
9 Disconnect the electrical wiring.
10 Remove the control box cover.
11 Disconnect the power supply and earth.
12 Reattach the control box cover.
When electrical wiring is finished already
1 Start cooling operation (see "7.2 To perform a test run" on
page13).
2 Gradually pour approximately 1 l of water through the air
discharge outlet, and check for leaks (see "When electrical
wiring is not finished yet"on page9).
5.2 Connecting the refrigerant piping
DANGER: RISK OF BURNING
5.2.1 To connect the refrigerant piping to the
indoor unit
CAUTION
Install the refrigerating piping or components in a position
where they are unlikely to be exposed to any substance
which may corrode components containing refrigerant,
unless the components are constructed of materials that
are inherently resistant to corrosion or are suitably
protected against corrosion.
WARNING: FLAMMABLE MATERIAL
The R32 refrigerant (if applicable) in this unit is mildly
flammable. Refer to the outdoor unit specifications for the
type of refrigerant to be used.
▪ Pipe length. Keep refrigerant piping as short as possible.
▪ Flare connections. Connect refrigerant piping to the unit using
flare connections.
▪ Insulation. Insulate the refrigerant piping on the indoor unit as
follows:
A B
a dc e fb b
a dc e fb b
2
4
3
g
1
23
4
g
AB
1
A Gas piping
B Liquid piping
a Insulation material (field supply)
b Cable tie (accessory)
c Insulation pieces: Large (gas pipe), small (liquid pipe)
(accessories)
d Flare nut (attached to the unit)
e Refrigerant pipe connection (attached to the unit)
f Unit
g Sealing pads: Medium 1 (gas pipe), medium 2 (liquid pipe)
(accessories)
1 Turn up the seams of the insulation pieces.
2 Attach to the base of the unit.
3 Tighten the cable ties on the insulation pieces.
4 Wrap the sealing pad from the base of the unit to the top of
the flare nut.
NOTICE
Make sure to insulate all refrigerant piping. Any exposed
piping might cause condensation.
5.2.2 To check for leaks
NOTICE
Do NOT exceed the unit's maximum working pressure (see
"PS High" on the unit name plate).
NOTICE
Make sure to use a recommended bubble test solution
from your wholesaler. Do not use soap water, which may
cause cracking of flare nuts (soap water may contain salt,
which absorbs moisture that will freeze when the piping
gets cold), and/or lead to corrosion of flared joints (soap
water may contain ammonia which causes a corrosive
effect between the brass flare nut and the copper flare).
1 Charge the system with nitrogen gas up to a gauge pressure of
at least 200 kPa (2 bar). It is recommended to pressurize to
3000kPa (30bar) in order to detect small leaks.
