6
Application Information
Model: FDM28CXV1 – R28CXV1 / FDM30CXV1 – R28CXV1
FDB30CXV1 – R28CXV1

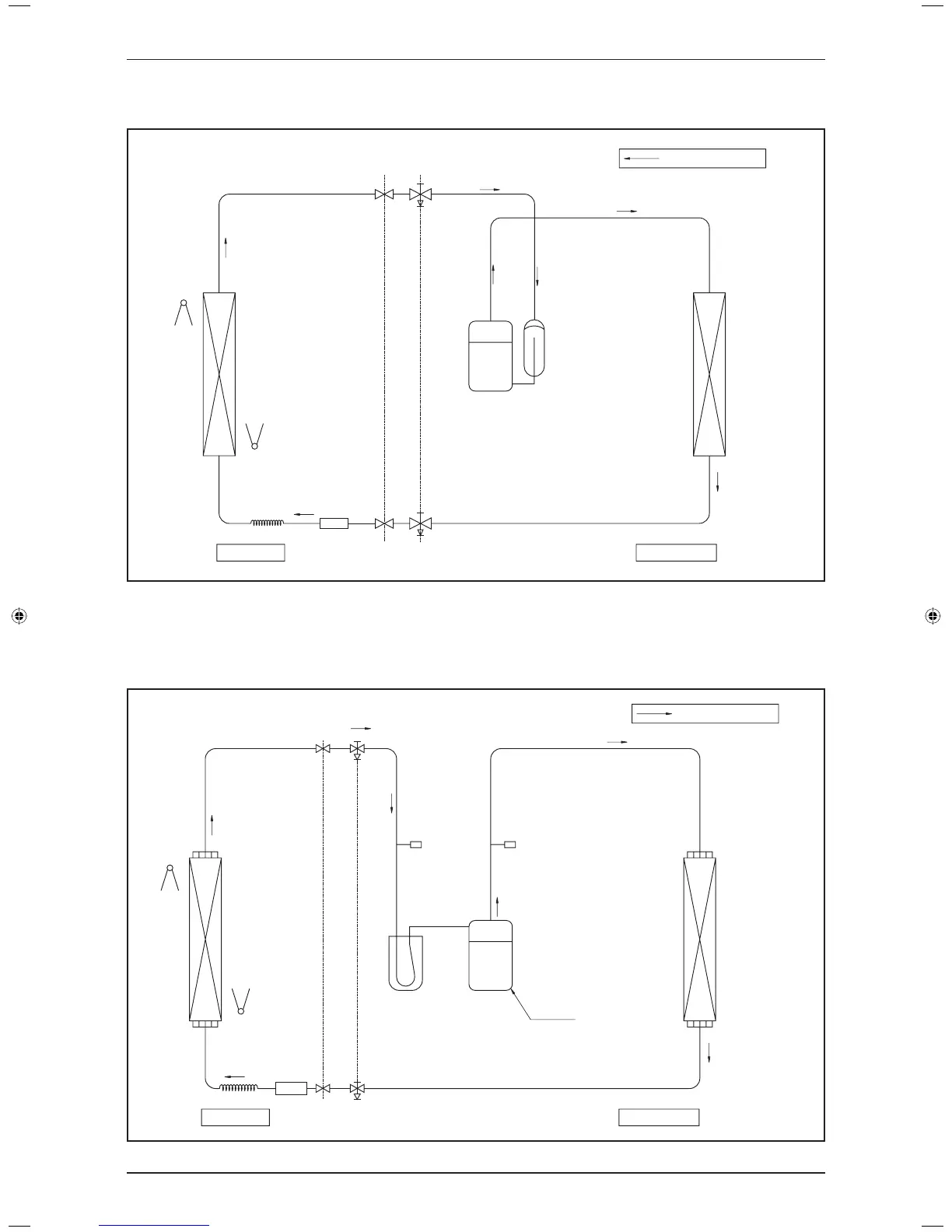

COOLING OPERATION
INDOOR UNIT OUTDOOR UNIT
RETURN
AIR SENSOR
HEAT EXCHANGER
(INDOOR UNIT)
PIPE TEMPERATURE
SENSOR
DISCHARGE
ACCUMULATOR
COMPRESSOR
3 WAY
VALVE
3 WAY
VALVE
COOLING
CAP TUBE
STRAINER
HEAT EXCHANGER
(OUTDOOR UNIT)
Model: FDM28/30CXV1 – R30DXV1 / FDM30CXV1 – R30DXY1 / FDM38/40CXV1 – R35/40DXV1 /
FDM38/40CXV1 – R40DXY1 / FDM50CXV1 – R50DXY1
FDB30CXV1 – R30DXV1 / FDB30CXV1 – R30DXY1 / FDB40CXV1 – R35/40DXV1 /
FDB40CXV1 – R40DXY1 / FDB50CXV1 – R50DXY1
COOLING OPERATION
INDOOR UNIT OUTDOOR UNIT
DISCHARGE
ACCUMULATOR
LOW
PRESSURE
SWITCH
HIGH
PRESSURE
SWITCH
3 WAY
VALVE
3 WAY
VALVE
RETURN
AIR SENSOR
HEAT EXCHANGER
(INDOOR UNIT)
PIPE TEMPERATURE
SENSOR
CAP TUBE
STRAINER
HEAT EXCHANGER
(OUTDOOR UNIT)
COMPRESSOR
