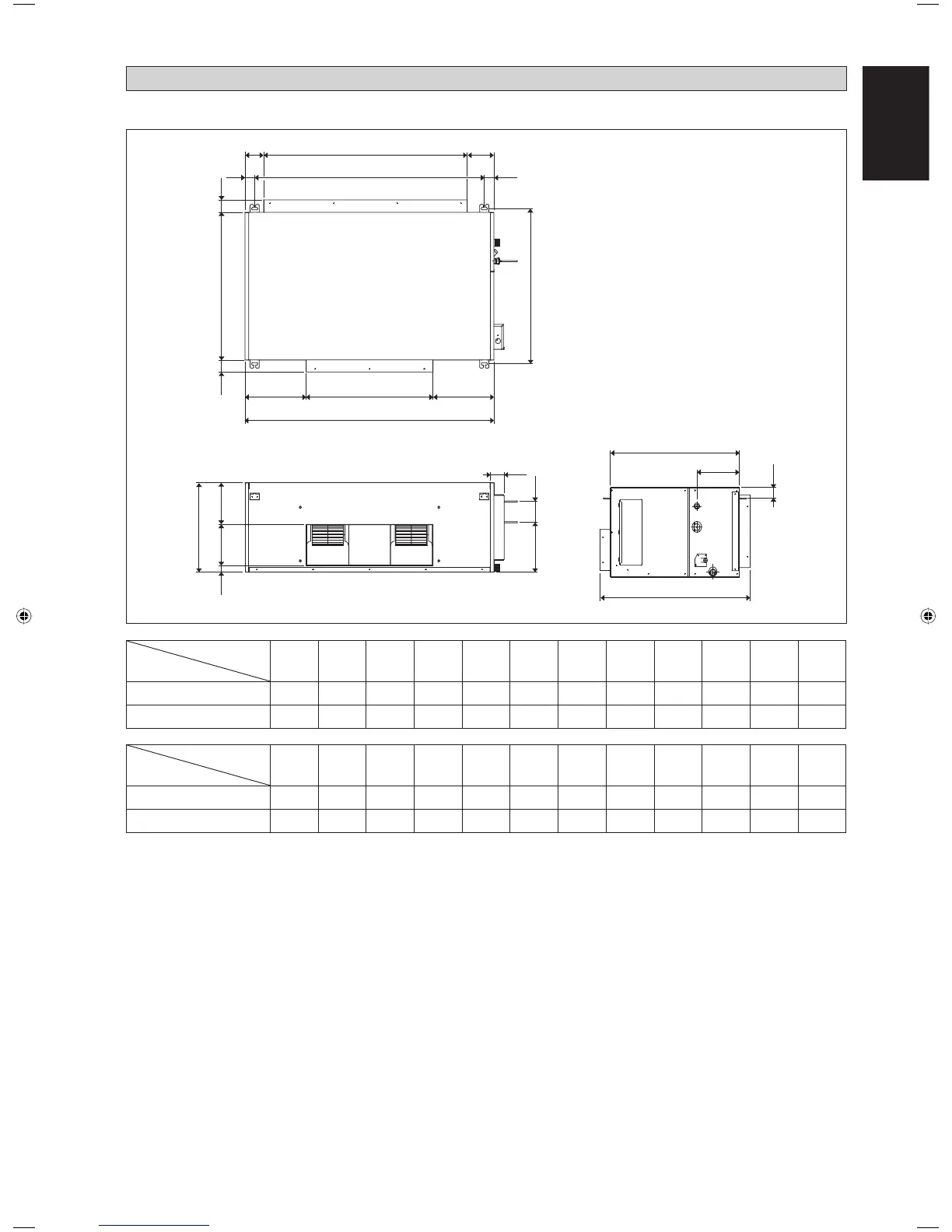

OUTLINE AND DIMENSIONS
FD(Y)M(P) 75/100D
All dimensions are in mm
Original Instruction
Dimension
Model
ABCDEFGH I JKL
75D 1120 1264 336 699 336 1370 710 746 103 53 63 56
100D 1349 1493 331 940 328 1599 710 746 103 53 60 56
Dimension
Model
MNO PQR S TUVWX
75D 147 201 198 430 32 76 100 241 710 234 50 83
100D 147 201 198 430 32 76 100 237 710 234 50 83
