1-7
English
2FGY(P) 250/300E
3FGY(P) 300/350/450E
4FGY(P) 400/500E

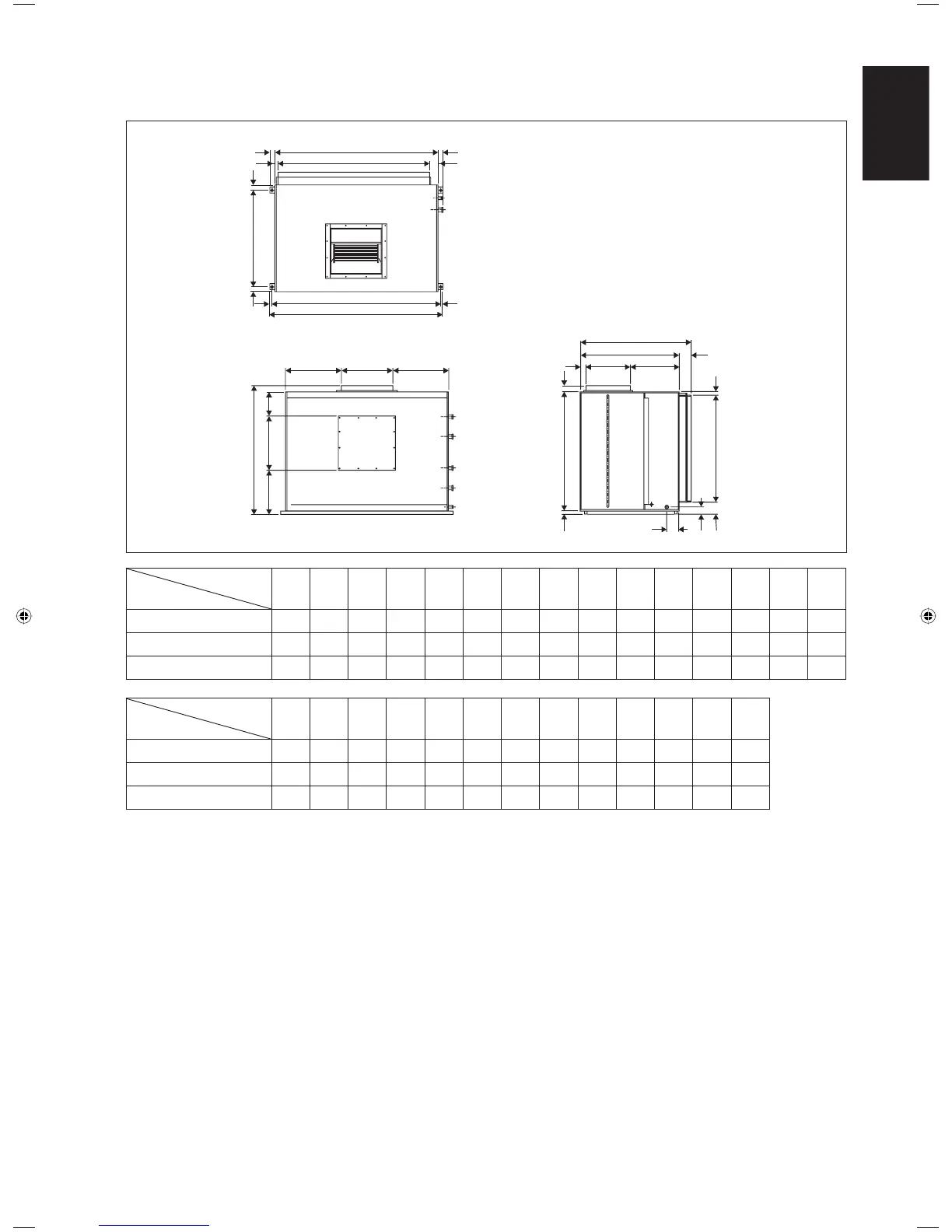

All dimensions are in mm
Dimension
Model
ABCDEFGH I JKLMNO
250/300E 1826 1636 973 1231 1259 1766 1866 560 603 542 444 245 50 35 48
350E 2082 1852 973 1451 1259 2022 2122 560 731 542 407 286 50 55 48
400/450/500E 2234 2004 1271 1451 1556 2174 2274 694 740 758 407 286 50 55 48
Dimension
Model
PQRSTUVWXYZZAZB
250/300E 20 1196 35 528 482 60 129 1069 130 123 1073 73 95
350E 20 1451 35 528 482 60 129 1069 130 123 1326 73 115
400/450/500E 20 1451 35 578 698 60 129 1366 130 123 1326 73 115
NOTE:
FOR VERTICAL AIR DISCHARGE
U
W
RZ
ZA
Q
V
Y
T
KJL
P
AP
I
COO
FMM
BNZB
G
HI
D
S
X
E
UR
1-IM-CC&SB-D_ER-0412(0)-DAIKIN-E7 71-IM-CC&SB-D_ER-0412(0)-DAIKIN-E7 7 7/19/12 2:34:25 PM7/19/12 2:34:25 PM
