2 About the box
Installation and operation manual
4
FFA25~60A2VEB
Split system air conditioners
4P456960-1 – 2017.03
▪ General safety precautions:
▪ Safety instructions that you must read before installing
▪ Format: Paper (in the box of the indoor unit)
▪ Indoor unit installation and operation manual:
▪ Installation and operation instructions
▪ Format: Paper (in the box of the indoor unit)
▪ Installer and user reference guide:
▪ Preparation of the installation, good practices, reference data,…
▪ Detailed step-by-step instructions and background information
for basic and advanced usage
▪ Format: Digital files on http://www.daikineurope.com/support-
and-manuals/product-information/
Latest revisions of the supplied documentation may be available on
the regional Daikin website or via your dealer.
The original documentation is written in English. All other languages
are translations.
Technical engineering data
▪ A subset of the latest technical data is available on the regional
Daikin website (publicly accessible).
▪ The full set of latest technical data is available on the Daikin
extranet (authentication required).
For the installer
2 About the box
2.1 Indoor unit

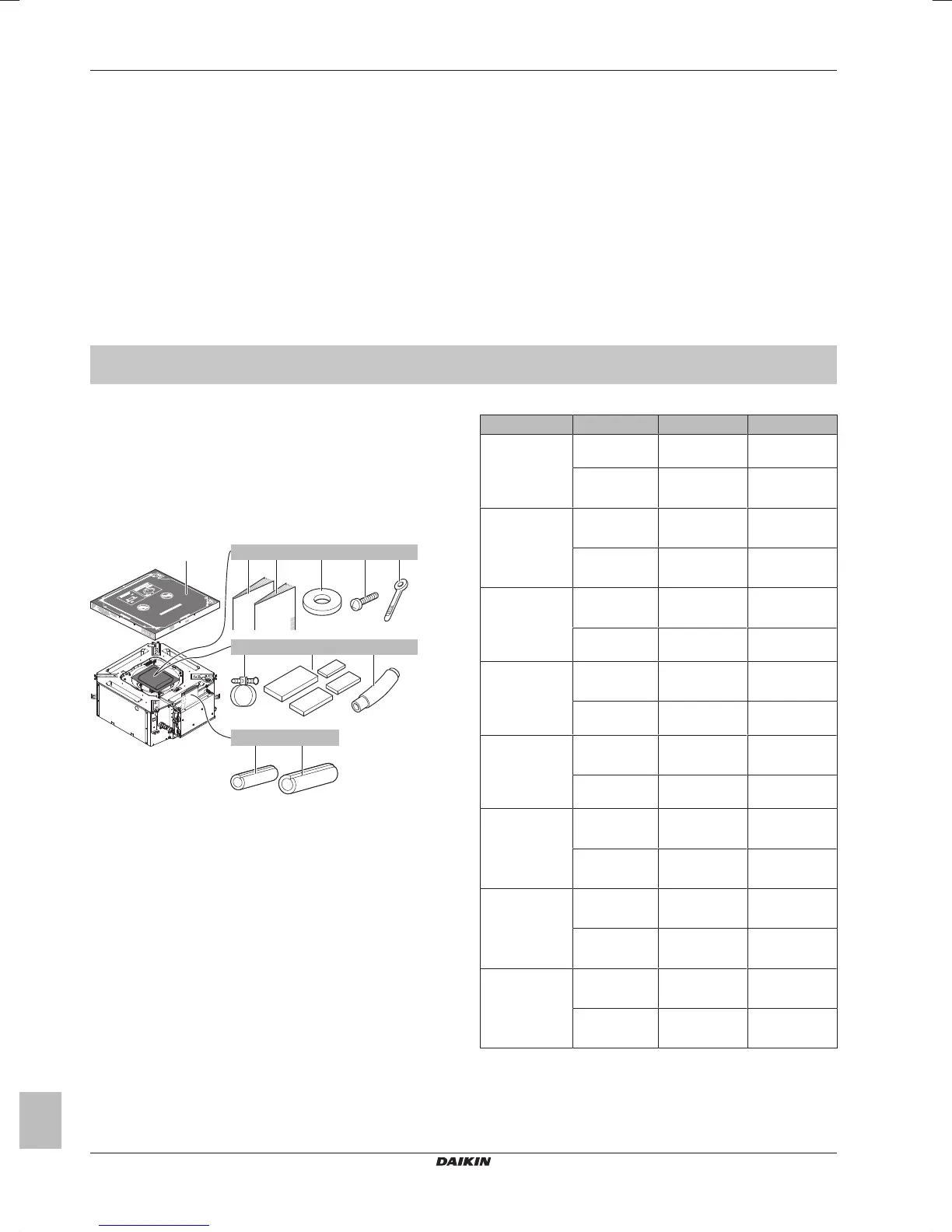

2.1.1 To remove the accessories from the
indoor unit
4× 7×8×1× 1×
a
4×
1×
1×
1×
1×
e fdcb
g h
i
j k
a Paper pattern for installation (upper part of packing)
b General safety precautions
c Indoor unit installation and operation manual
d Washers for hanger bracket
e Screws
f Cable ties
g Metal clamp
h Sealing pads: Large (drain pipe), medium 1 (gas pipe),
medium 2 (liquid pipe), small (electrical wiring)
i Drain hose
j Insulation piece: Small (liquid pipe)
k Insulation piece: Large (gas pipe)
3 About the units and options
3.1 About the indoor unit
Use the system in the following temperature and humidity ranges for
safe and effective operation.
For combination with R410A outdoor unit, refer to the following table:
Outdoor units Cooling Heating
RR71~125 Outdoor
temperature
–15~46°CDB —
Indoor
temperature
18~37°CDB
12~28°CWB
—
RQ71~125 Outdoor
temperature
–5~46°CDB –9~21°CDB
–10~15°CWB
Indoor
temperature
18~37°CDB
12~28°CWB
10~27°CDB
RXS25~60 Outdoor
temperature
–10~46°CDB –15~24°CDB
–16~18°CWB
Indoor
temperature
18~32°CDB 10~30°CDB
2MXS50 Outdoor
temperature
10~46°CDB –15~24°CDB
–16~18°CWB
Indoor
temperature
18~32°CDB 10~30°CDB
3MXS40~68
4MXS68~80
5MXS90
Outdoor
temperature
–10~46°CDB –15~24°CDB
–16~18°CWB
Indoor
temperature
18~32°CDB 10~30°CDB
RZQG71~140 Outdoor
temperature
–15~50°CDB –19~21°CDB
–20~15.5°CWB
Indoor
temperature
18~37°CDB
12~28°CWB
10~27°CDB
RZQSG71~140 Outdoor
temperature
–15~46°CDB –14~21°CDB
–15~15.5°CWB
Indoor
temperature
20~37°CDB
14~28°CWB
10~27°CDB
RZQ200~250 Outdoor
temperature
–5~46°CDB –14~21°CDB
–15~15°CWB
Indoor
temperature
20~37°CDB
14~28°CWB
10~27°CDB
For combination with R32 outdoor unit, refer to the following table:
