Procedure to Remove Suction Grille Si241305
2 Removal Procedure
1. Procedure to Remove Suction Grille
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step
Procedure Points
1
Press the 2 buttons
simultaneously and pull
the suction grille slowly.
When closing, press up the
grille slowly.

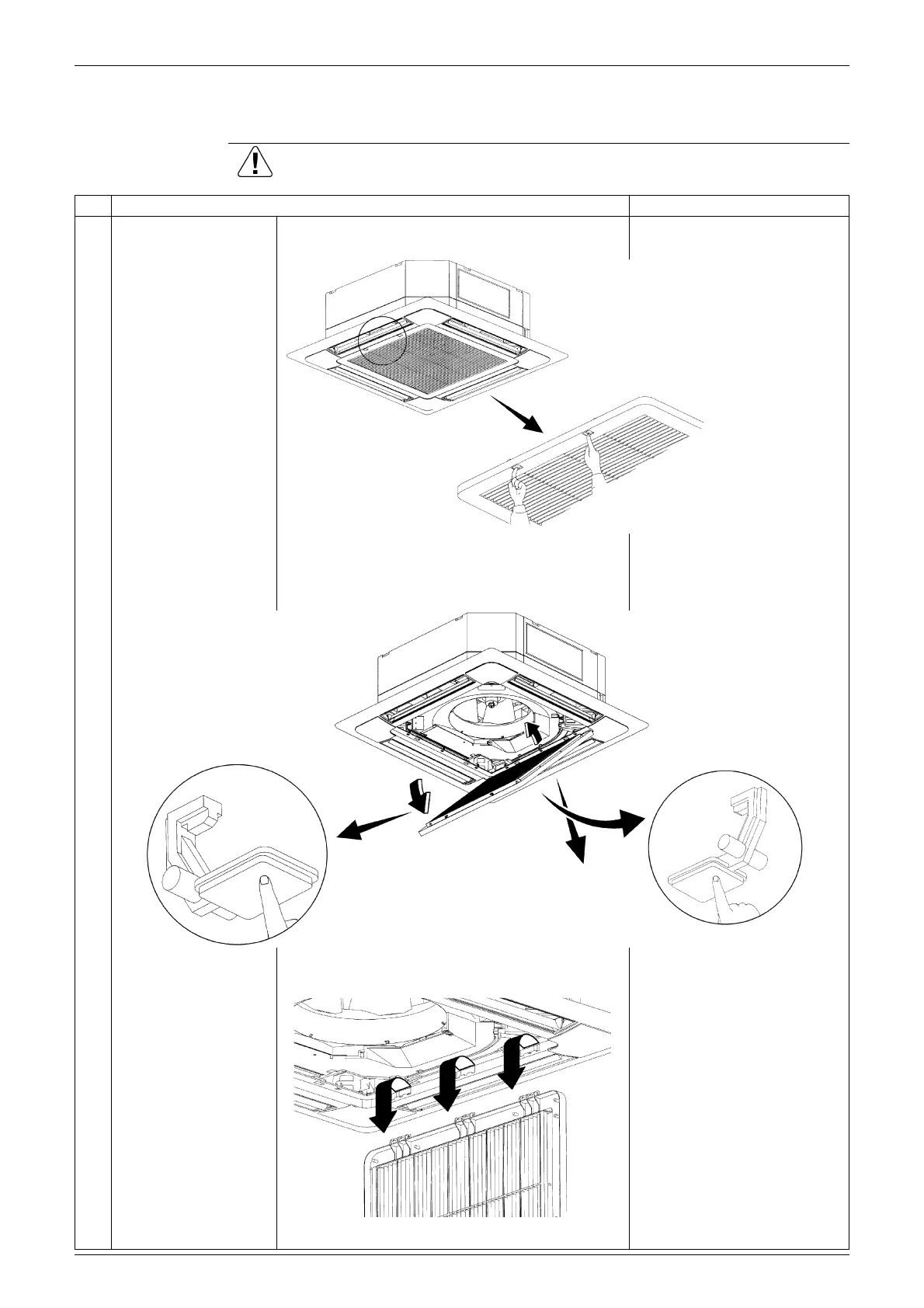

2
With the suction grille
open at an angle of 45º,
lift it up to remove it.
Grille is attached with 3 hooks.
(1) Open to
45˚ angle.
(2) Lift to remove.
