Si241305 Procedure to Remove Decoration Panel
Removal Procedure 5

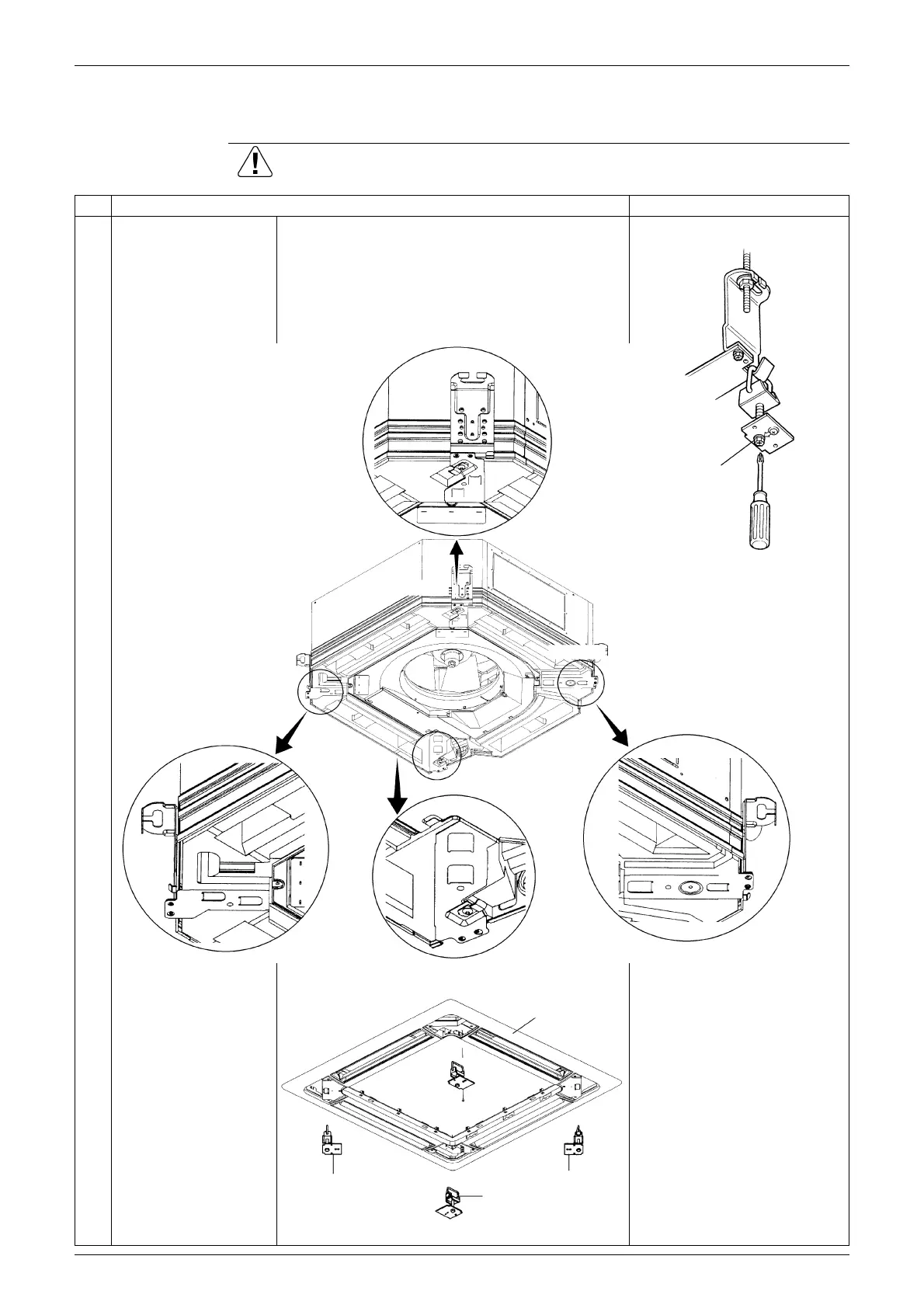

4. Procedure to Remove Decoration Panel
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step
Procedure Points
1
Loosen the 4 retaining
screws from the
decoration panel.
Structure of mounting fixture
2
The decoration panel is
attached with 4
mounting fixtures.
3
Remove the 2 fixtures
on the outside (sections
A), then remove the 2
fixtures on the inside
(sections B).
4
Remove the decoration
panel.
Section B
Section A
Section B
Section A
(1) Retaining
screw
Decoration panel
(2) Mounting
fixture
(2) Mounting
fixture
(2) Mounting
fixture
