12 English

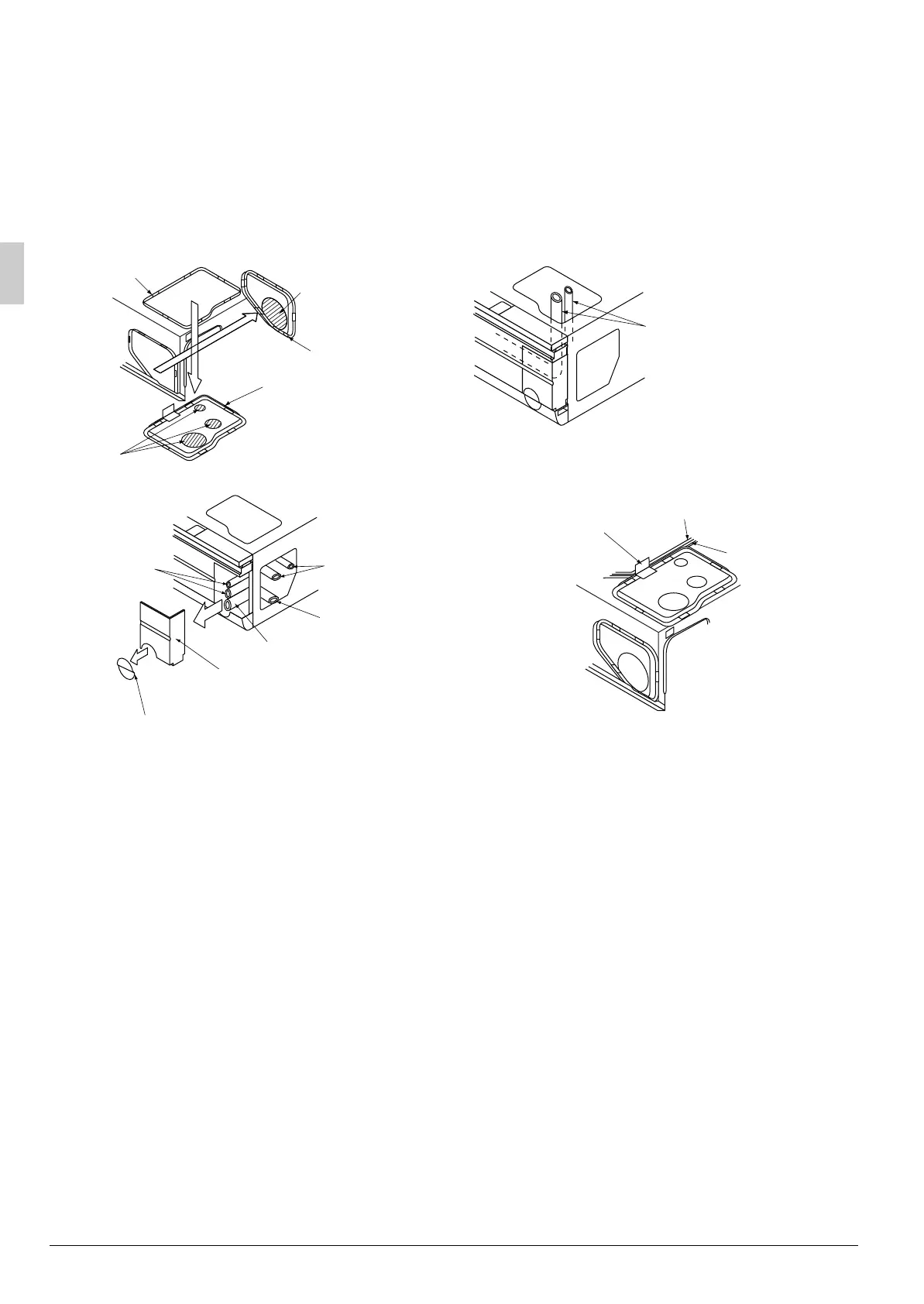

(1) For piping facing back.
• Remove the rear penetration lid and set the piping. (Refer to Fig. 14.16)
(2) For piping facing up.
• When setting the piping to face up, the L-shaped branch piping kit sold separately is required.
• Removing the top penetration lid and use the L-shaped branch piping kit sold separately to set the piping.
(Refer to Fig. 14.15)
(3) For piping facing right.
• Cut out a slit hole on the dressing board (right) and set the piping. (Refer to Fig. 16)
•
When piping is complete, cut the removed penetration lid into the shape of the piping using scissors and attach.
As when before removing the top penetration lid, secure the lead lines for the swing motor and thermistor
by passing them through the clamp section on the top penetration lid. (Refer to Fig. 14.17)
• When doing this, block any gaps between the piping penetration lid and the pipes using putty to prevent
dust from entering the indoor unit.
Top plate
Cut out
Rear
penetration lid
Top penetration lid
Cut out
Upward-facing
refrigerant piping
L-shaped branch piping
kit (Optional accessories)
Rear-facing
refrigerant piping
Rear right-facing
drain piping
Right-facing drain piping
Right-facing
refrigerant
piping
Dressing board (right)
removable part
If only setting the drain piping to
face right, cut this section only.
Top penetration
lid clamp section
Thermistor lead line
Swing motor
lead line
Fig. 14 Fig. 15
Fig. 16
Fig. 17
