Split Sky Air • Indoor Units
13
Indoor Units • R-410A • FHQ-BVV1B

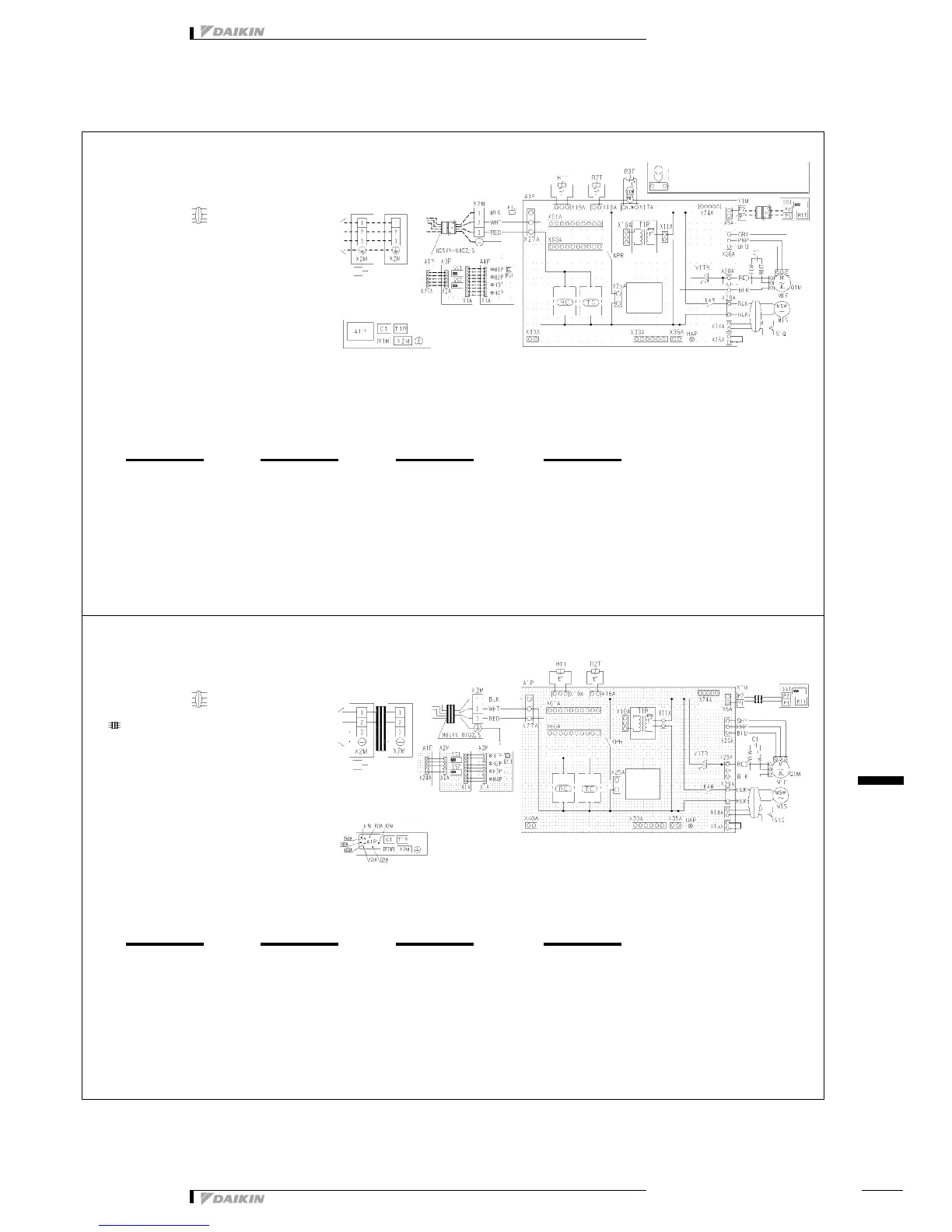

8 Wiring diagram
8 - 1 Wiring diagram
3D037842
D
FHQ3560B
1-RED, 2-WHITE, 3-BLACK
A1P Printed circuit board
C1R Capacitor (M1F)
F1U Fuse(F5A 250V)
HAP Light emitting diode (service monitor green)
KAR Magnetic relay (M1S)
KPR Magnetic relay (M1P)
M1S Motor (swing flap)
M1F Motor (indoor fan)
Q1M Thermo switch (M1F embedded)
R1T Thermistor (air)
R2T Thermistor (coil)1
R3T Thermistor (coil)2
S1Q Limit switch (swing flap)
T1R Transformer(220-240V/22V)
V1TR Phase control circuit
X1M Terminal block
X2M Terminal block
? Signal receiver circuit
. Signal transmission circuit
Wired remote control
R1T Thermistor (air)
SS1 Selector switch (main/sub)
Infrared remote control
Receiver / display unit
A3P Printed circuit board
A4P Printed circuit board
BS1 Push button (on/off)
H1P Light emitting diode (service monitor red)
H2P Light emitting diode (service monitor green)
H3P Light emitting diode (service monitor red)
H4P Light emitting diode (service monitor orange)
SS1 Selector switch (main/sub)
SS2 Selector switch (wireless address set)
Connector for optional parts
X15A Connector (float switch)
X25A Connector (drain pump)
X33A Connector (adapter for wiring)
X35A Connector (group control adapter)
X40A Connector
(ON/OFF input from outside)
X60A
X61A
Connector (interface adapter for sky air series)
To outdoor
unit
Note) 4
Wired remote control
In case of simultaneous operation system.
To outdoor unit
Notes
1. D : Terminal F ,
: Connector
b: Protective earth (screw)
2. B: Field wiring
3. In case using central remote control, connect it to the
unit in accordance with the attached instruction
manual.
4. X24A is connected when the infrared remote control
kit is being used.
5. Remote control model varies according to the
combination system, confirm technical materials and
catalogs, etc. before connecting.
6. In case installing the drain pump (M1P), remove the
jumper connector of X15A and execute the additional
wiring for float switch and drain pump.
7. Symbols show as follows Red:red, Blk:black, Ylw:yellow,
Org:orange, Gry:gray, Prp:purple, Blu:blue
Receiver / display unit
Indoor unit
(master)
Indoor unit
(slave)
Infrared remote
control
Note) 6
Note) 6
Note) 4
Connecter discrimination colour for components.
Connecter colour for components.
Connecter colour for printed circuit board.
Control box
4D043825
B
FHQ71,100,125B
1-RED, 2-WHITE, 3-BLACK
A1P Printed circuit board
C1R Capacitor (M1F)
HAP Light emitting diode (service monitor green)
KAR Magnetic relay (M1S)
KPR Magnetic relay (M1P)
M1S Motor (swing flap)
M1F Motor (indoor fan)
Q1M Thermo switch (M1F embedded)
R1T Thermistor (air)
R2T Thermistor (coil)
S1Q Limit switch (swing flap)
T1R Transformer(220-240V/22V)
V1TR Phase control circuit
X1M Terminal block
X2M Terminal block
? Signal receiver circuit
. Signal transmission circuit
Wired remote control
R1T Thermistor (air)
SS1 Selector switch (main/sub)
Infrared remote control
Receiver / display unit
A2P Printed circuit board
A3P Printed circuit board
BS1 Push button (on/off)
H1P Light emitting diode (service monitor red)
H2P Light emitting diode (service monitor green)
H3P Light emitting diode (service monitor red)
H4P Light emitting diode (service monitor orange)
SS1 Selector switch (main/sub)
SS2 Selector switch (wireless address set)
Connector for optional parts
X15A Connector (float switch)
X25A Connector (drain pump)
X33A Connector (adapter for wiring)
X35A Connector (group control adapter)
X40A Connector
(ON/OFF input from outside)
X60A
X61A
Connector (interface adapter for sky air series)
To outdoor unit
Note) 4
Wired remote control
In case of simultaneous operation system.
To outdoor unit
Notes
1. D : Terminal F ,
: Connector
b: Protective earth (screw)
2.
: Field wiring
3. In case using central remote control, connect it to the
unit in accordance with the attached instruction
manual.
4. X24A is connected when the infrared remote control
kit is being used.
5. Remote control model varies according to the
combination system, confirm technical materials and
catalogs, etc. before connecting.
6. In case installing the drain pump (M1P), remove the
jumper connector of X15A and execute the additional
wiring for float switch and drain pump.
7. Symbols show as follows Red:red, Blk:black, Ylw:yellow,
Org:orange, Gry:gray, Prp:purple, Blu:blue
Receiver / display unit
Indoor unit
(master)
Indoor unit
(slave)
Infrared remote
control
Note) 6
Note) 6
Note) 4
Control box
