Daikin FT24KV2S Service Manual

Removal of Electrical Box / PCBs / Swing Motors Si041055
10 Removal Procedure
6

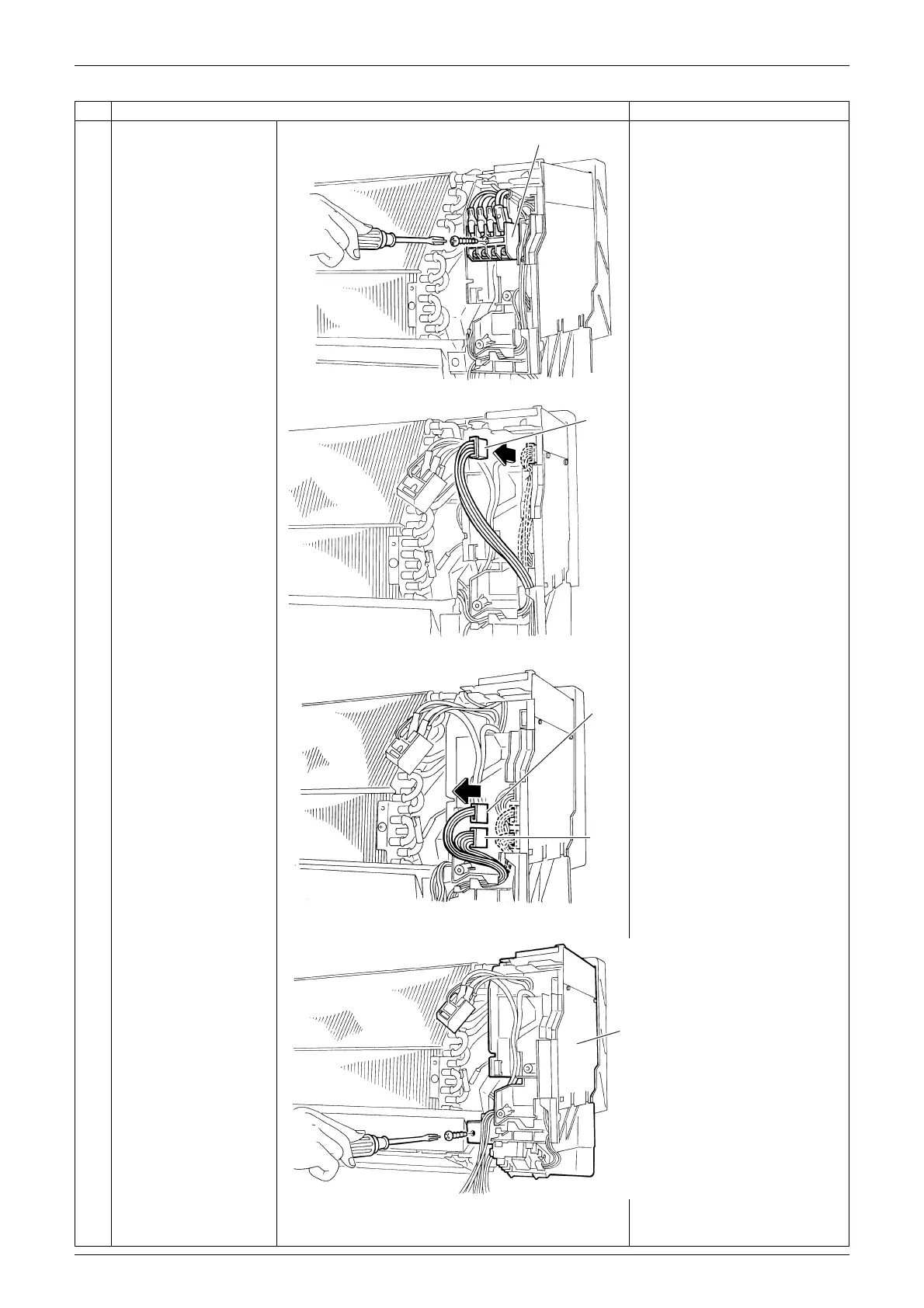

Remove the screw and
remove the terminal
board.

You can remove the
electrical box without
detaching the terminal
board.

Screw: M4 × 30
7
Disconnect the
connector for the fan
motor [S1].
8
Disconnect the
connectors for the
swing motor [S6] [S8].
[S6]: for horizontal blade
[S8]: for vertical blade

Some models have no
harness for [S8].
9
Remove the screw of
the electrical box.
Step Procedure Points
Terminal board
(R2773)
[S1]
(R2774)
(R2775)
[S6]
[S8]
Electrical box
(R3205)
