Si041055 Removal of Indoor Heat Exchanger
Removal Procedure 17
3

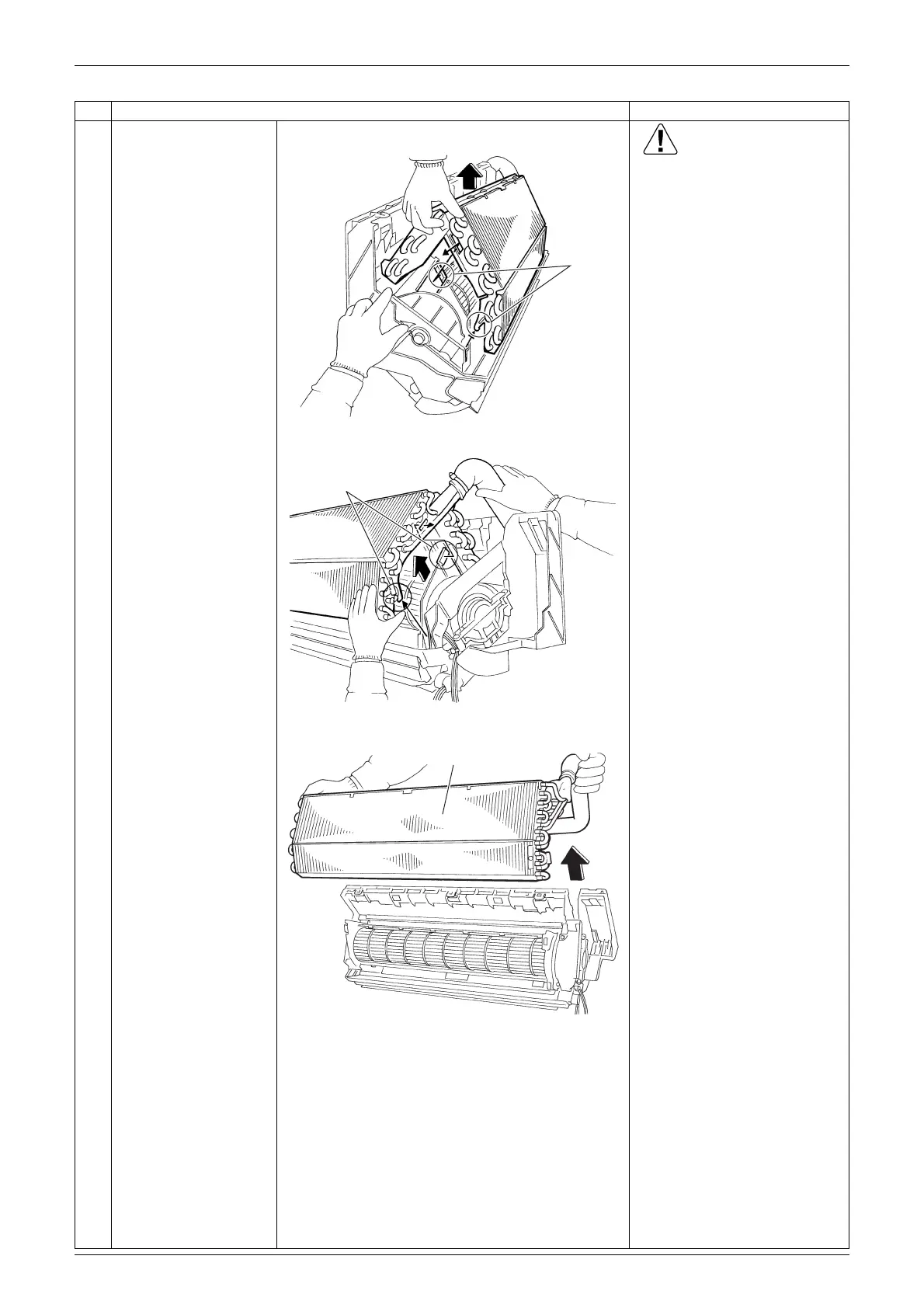

Unfasten the hooks on
the left side.
Caution
When removing or
reinstalling the indoor heat
exchanger, be sure to wear
protective gloves or wrap the
indoor heat exchanger with
cloths. (You may be injured
by the fins.)
4
Push the hooks on the
right side and unfasten
them.
5
Pull the indoor heat
exchanger to the front
side and unfasten the
hooks completely, and
then lift it.
Step Procedure Points
Hook
(R13231)
Hook
(R13232)
Indoor heat exchanger
(R2802)
To Next Page
