Daikin FTK25BVMB - Page 154

SiBE04-302 Indoor Unit
Removal Procedure 145
4

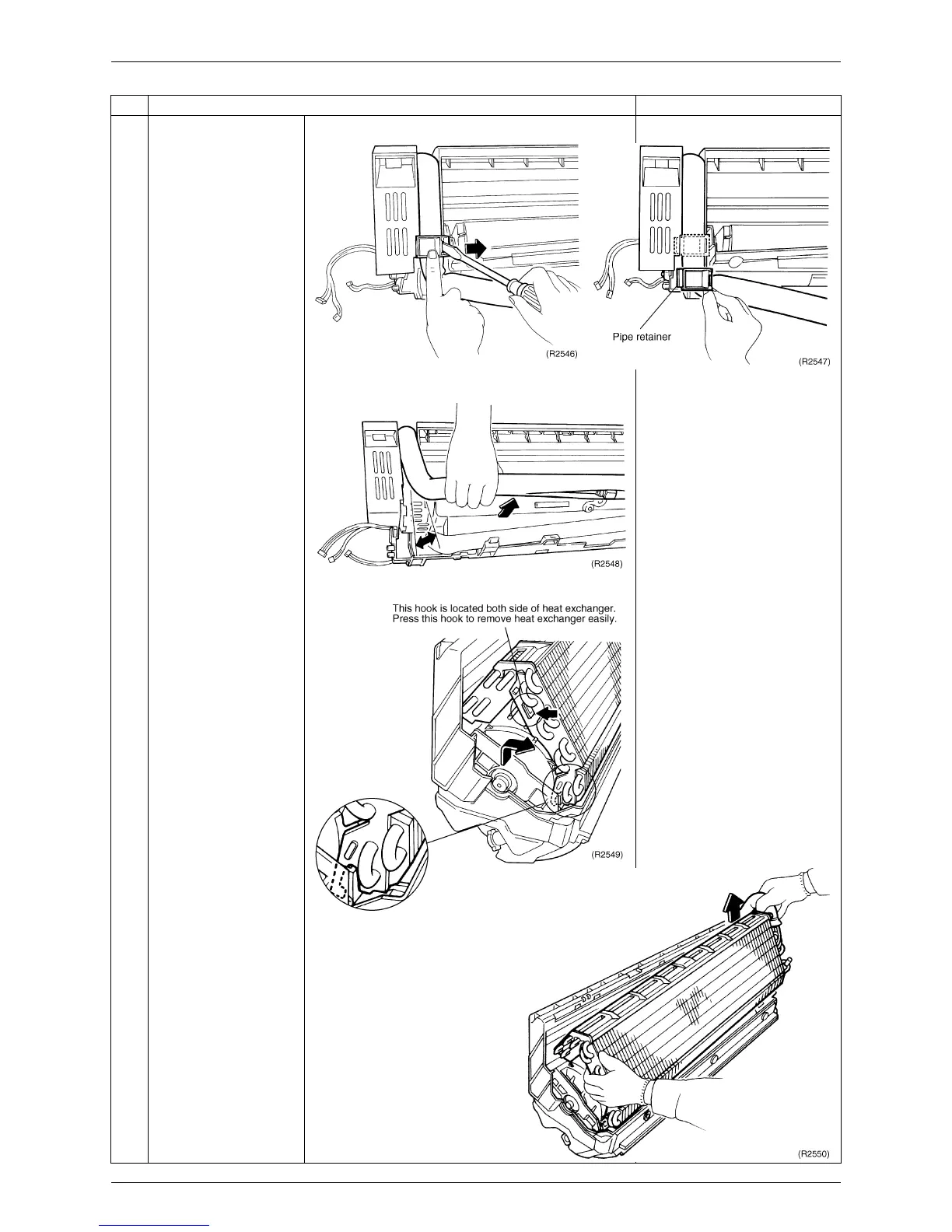

Disengage the hooks of
the pipe retainer on the
back.
5
Pull auxiliary pipe
forward to an angle of
10 to 20 degrees.

Be careful to prevent pipe
deformation.
6
Disengage hooks
located right and left
side, and pull heat
exchanger forward.
The hooks are
symmetrically placed in
the right and the left.

Lifting the heat-exchanger
slightly upward to the right,
the left hook comes to be
disengaged easily.

Step Procedure Points
