Daikin FTK25BVMB - Piping Diagrams; Indoor Units

Piping Diagrams SiBE04-302
180 Appendix
1. Piping Diagrams
1.1 Indoor Units
FTKS25 / 35BVMB, ATKS25 / 35BVMB, FTK25 / 35BVMB, ATK25 / 35BVMB, FTS20 / 25 / 35BVMB
FTXS25 / 35BVMB, ATXS25 / 35BVMB, FTX25 / 35BVMB, ATX25 / 35BVMB, FTYS20 / 25 / 35BVMB

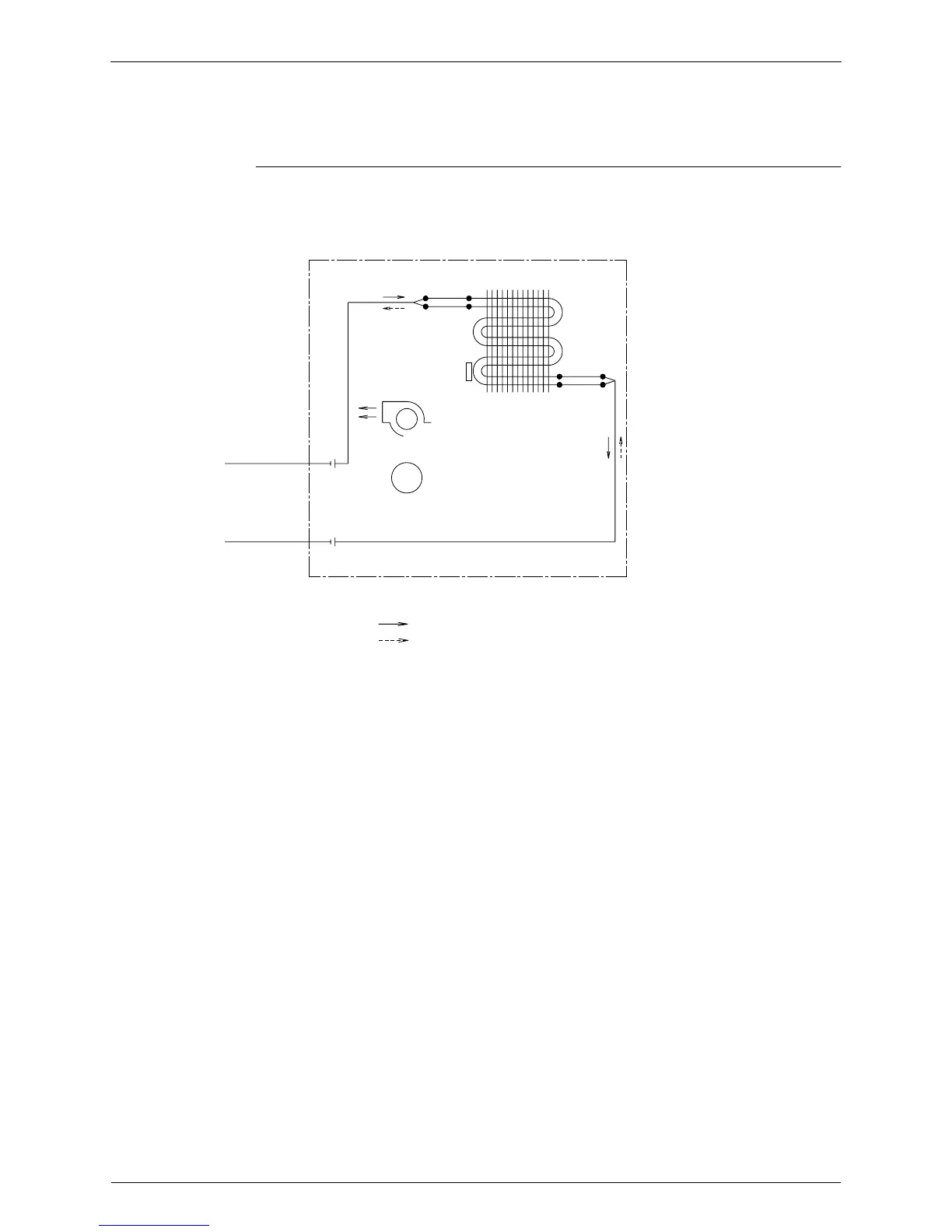

FIELD PIPING
FIELD PIPING
(
6.4CuT
)
(
9.5CuT
)
7.9CuT
CROSS FLOW FAN
REFRIGERANT FLOW
FAN MOTOR
ON HEAT EXCH.
THERMISTOR
M
INDOOR UNIT
HEATING
COOLING
7.0CuT
6.4CuT
9.5CuT
HEAT EXCHANGER
6.4CuT
6.4CuT
4D033698A
