SiBE04-302 Printed Circuit Board Connector Wiring Diagram
Printed Circuit Board Connector Wiring Diagram 27
1.2 Outdoor Unit
Printed circuit board (1)
Printed circuit board (2)
Name of
Connector

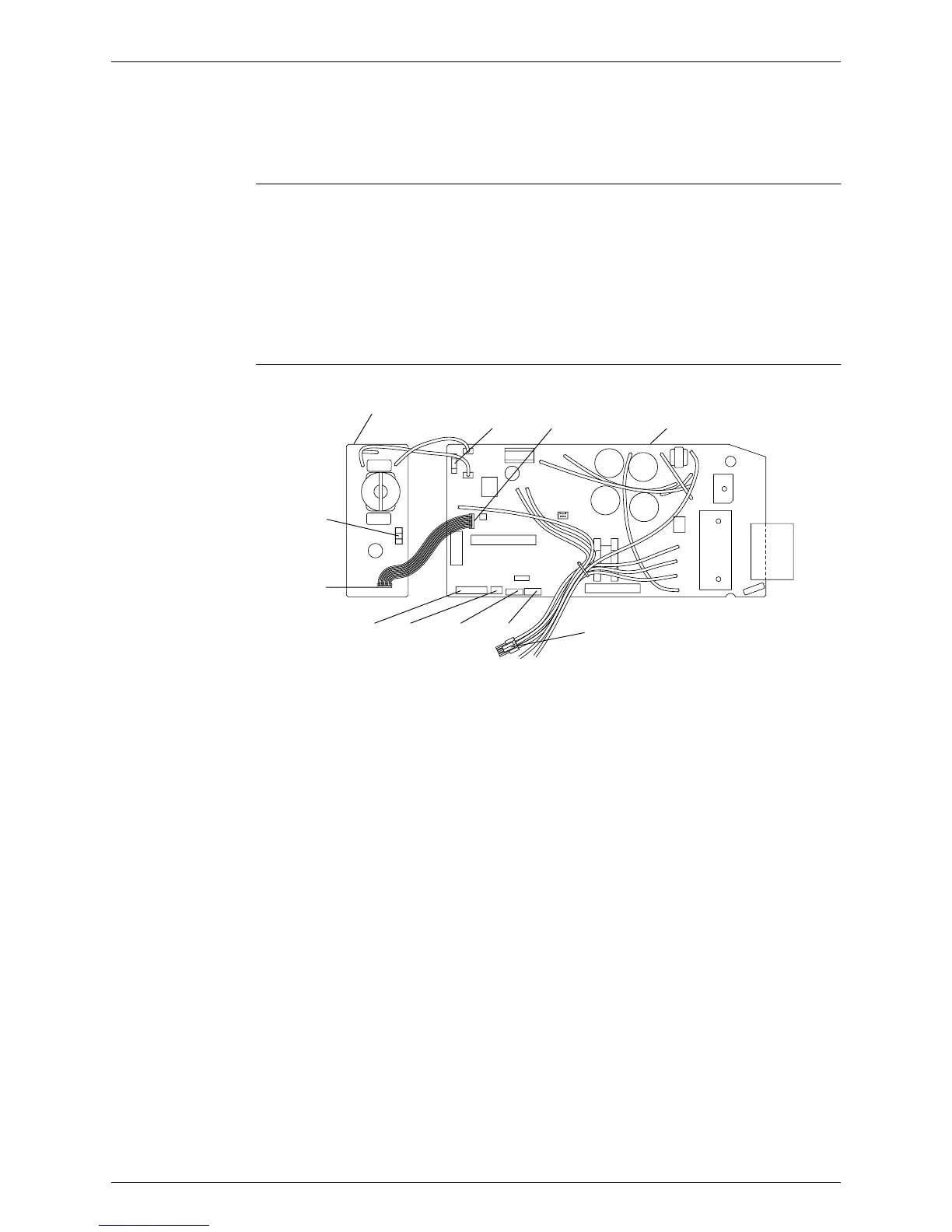

Outline of PCB
1) S10 Connector for PCB (2)
2) S11 Connector for PCB (1)
3) S30 Connector for compressor motor
4) S70 Connector for fan motor
5) S80 Connector for four way valve coil (Heat pump only)
6) S90 Connector for thermistor
PCB(1)
FU1
FU2
S11 PCB(2)
S30
S20S90S80S70
S10
W
1P101935-1K
V
U
To Next Page
