Daikin FTKC35QVM4 - Page 19

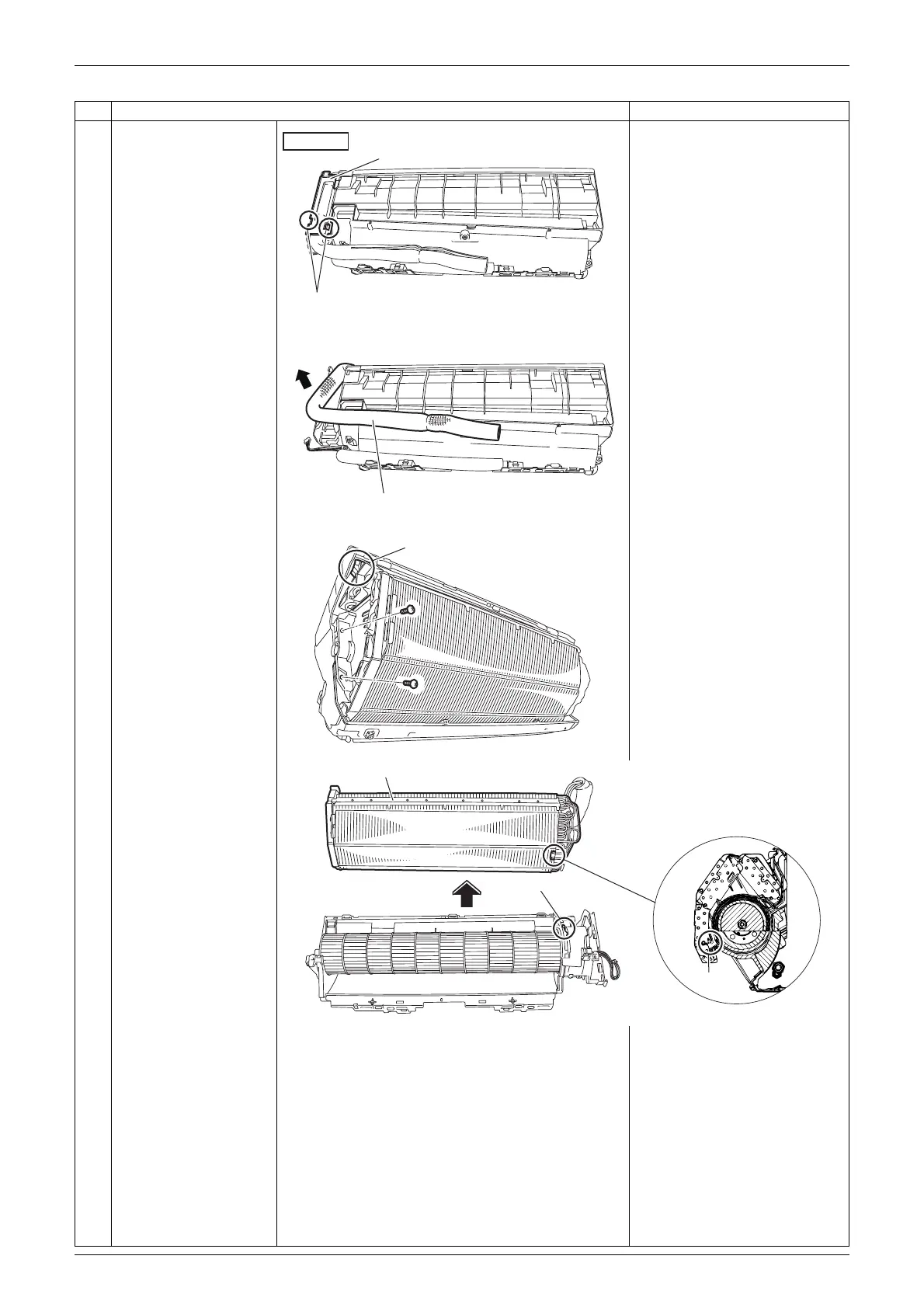

Si041551EB Indoor Heat Exchanger
Removal Procedure 17
2 Unfasten the 2 hooks
and remove the piping
fixture on the back of
the indoor unit.
3 Slightly pull out the
auxiliary piping.
4 Remove the 2 screws
on the left side and
unfasten the hook on
the rear side.
5 Unfasten the 2 hooks
on the right side and lift
up the indoor heat
exchanger.
Step Procedure Points
Hook
Piping fixture
Back view
(R24354)
Auxiliary piping
(R21036)
Hook
(R21037)
Hook
Indoor heat exchanger
Hook
(R22117)

When reassembling the
indoor heat exchanger,
make sure that the 2 hooks
are fastened.
