PCBs Si041551EB
8 Removal Procedure
5. PCBs
Warning

Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.

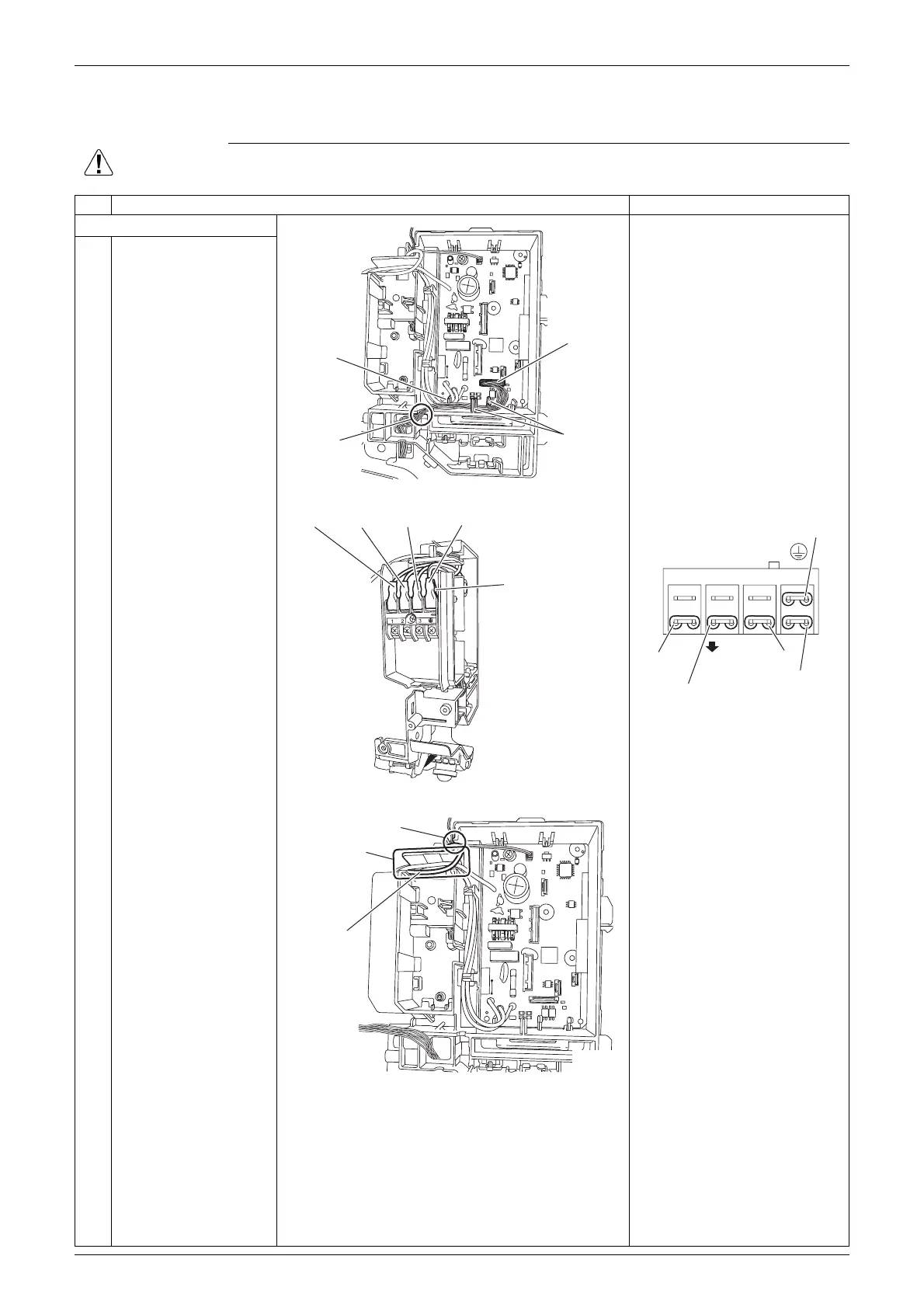

Step Procedure Points
1. Remove the control PCB. [S26]: display/signal receiver
PCB
1
2
Remove the connector
[S26].
Release the harnesses
from the 3 hooks and
the slit.
3 Disconnect all the 5
terminals.
4 Release the earth/
ground wire (yellow/
green) from the slit and
the groove.
[S26]
Hook
Slit
Hook
(R22066)
White RedBlack Earth/ground (yellow/green)
Earth/ground
(green)
(R22067)
123
FRONT
Black Red
Earth/ground (green)
Earth/ground
(yellow/green)
White
(R22265)
Slit
Earth/ground
wire
(yellow/green)
Groove
(R22069)
