Daikin FTKC35QVM4 - Page 9

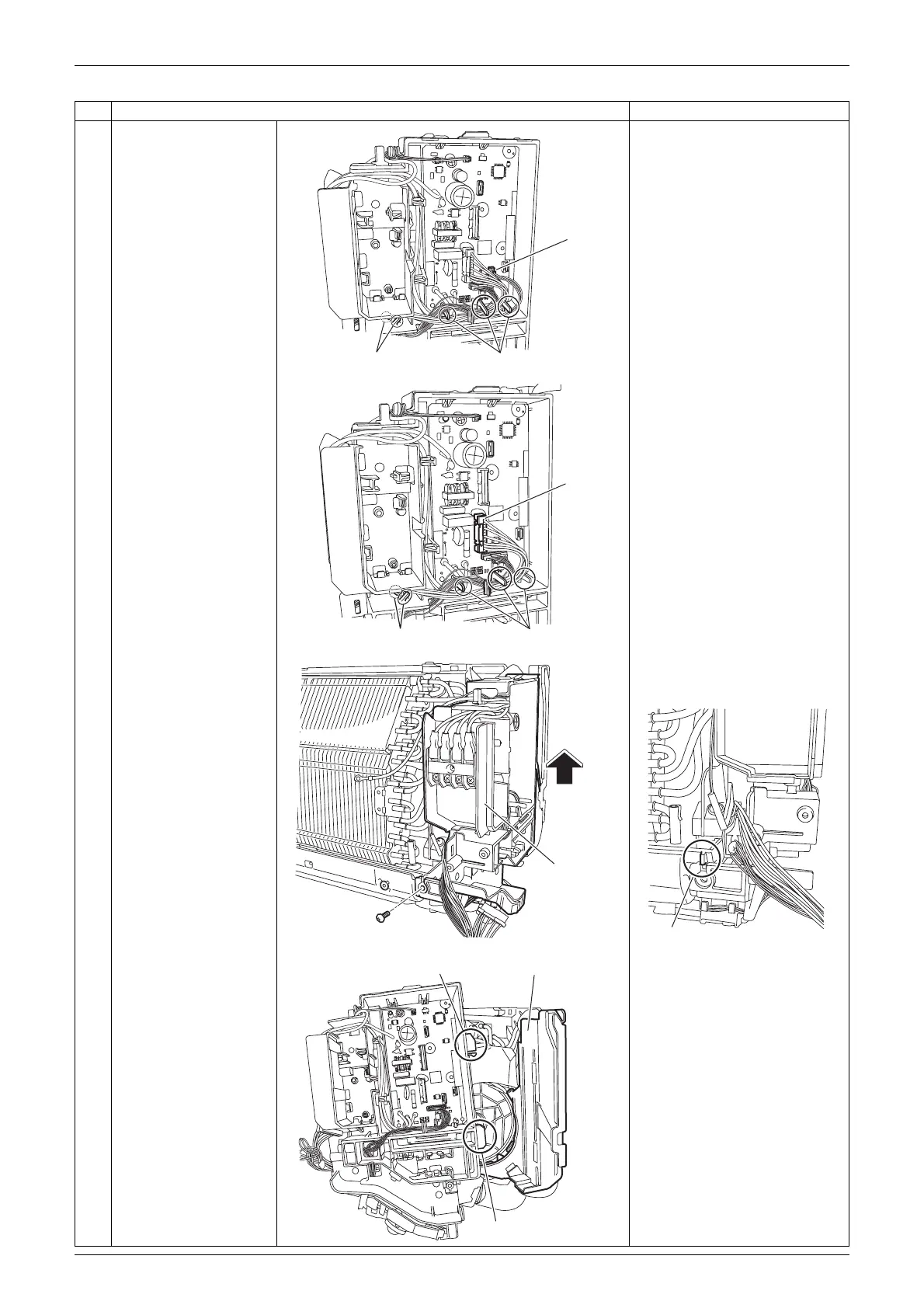

Si041551EB Electrical Box
Removal Procedure 7
7
8
Disconnect the
connector [S11].
Release the harnesses
from the 5 hooks.
[S11]: swing motor for vertical
blades

Some models do not have
the harness for [S11].
9
10
Disconnect the
connector [S200].
Release the harnesses
from the 5 hooks.
[S200]: fan motor
11
12
Remove the screw of
the electrical box.
Slightly lift the electrical
box upward and
remove it.

When reassembling, make
sure to fasten the hook at the
front of the electrical box.

When reassembling, make
sure that the 2 hooks are
securely fastened to the
bottom frame.
Step Procedure Points
[S11]
Hook Hook
(R24244)
Hook
[S200]
Hook
(R23393)
Electrical box
(R22063)
Hook
(R22064)
Hook
Hook
Bottom frame
(R22065)
