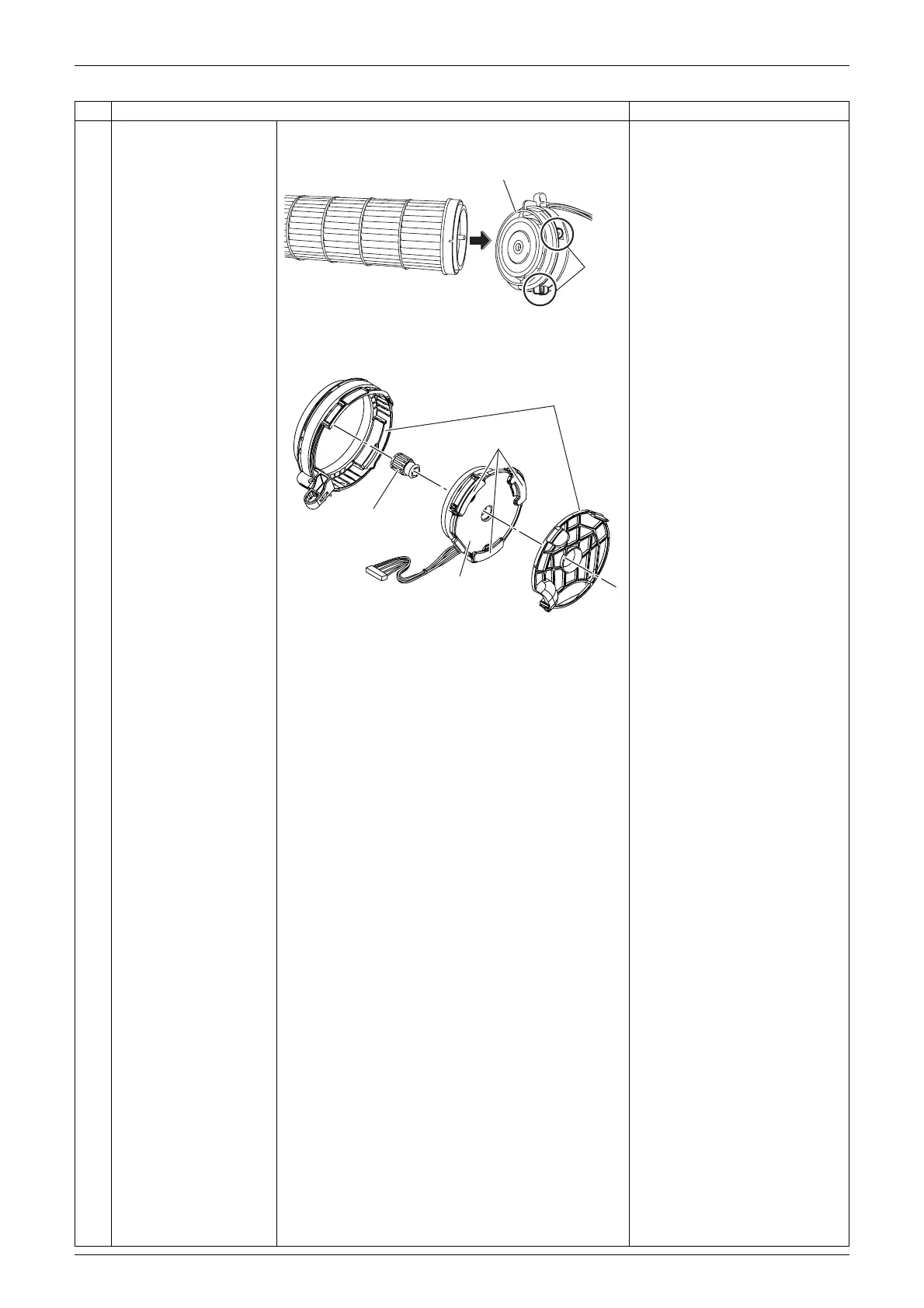

Si041551EB Fan Rotor / Fan Motor
Removal Procedure 19
4
5
Pull out and remove the
fan motor stator ASSY
from the fan rotor.
Unfasten the 2 hooks of
the fan motor stator
ASSY.
6 Disassemble the fan
motor stator ASSY.
Step Procedure Points
Hook
Fan motor
stator ASSY
(R23507)
(R24356)
Motor cover
Rubber cushion
Fan motor
stator
Rubber
bushing
