Daikin FTKD42GVM Service Manual

Si041143 Removal of Electrical Box / PCBs / Swing Motors
Removal Procedure 13

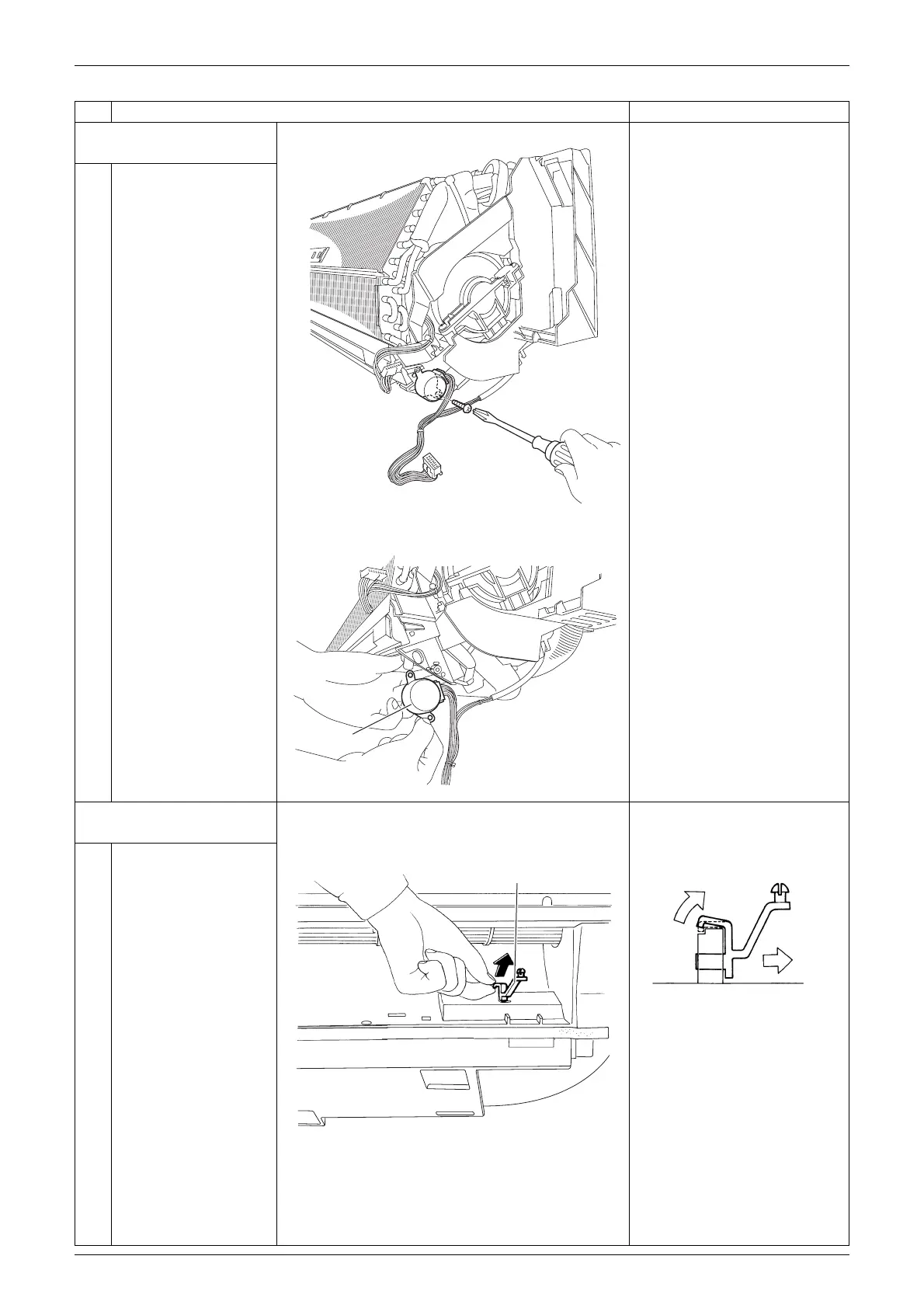

3. Remove the swing motor
for horizontal blades.
1
Remove the screw of
the swing motor.
2
Remove the swing
motor for horizontal
blades.
4. Remove the swing motor
for vertical blades.
1
Remove the swing shaft
on the right side.

Remove the swing shaft.
Step
Procedure Points
(R11359)
(R11360)
Swing motor
(R11361)
Swing shaft
(R9075)
(1)Unfasten the hook.
(2)Pull out the swing shaft.
