Removal of Horizontal Blades / Vertical Blades Si041143
6 Removal Procedure
3. Removal of Horizontal Blades / Vertical Blades
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step
Procedure Points

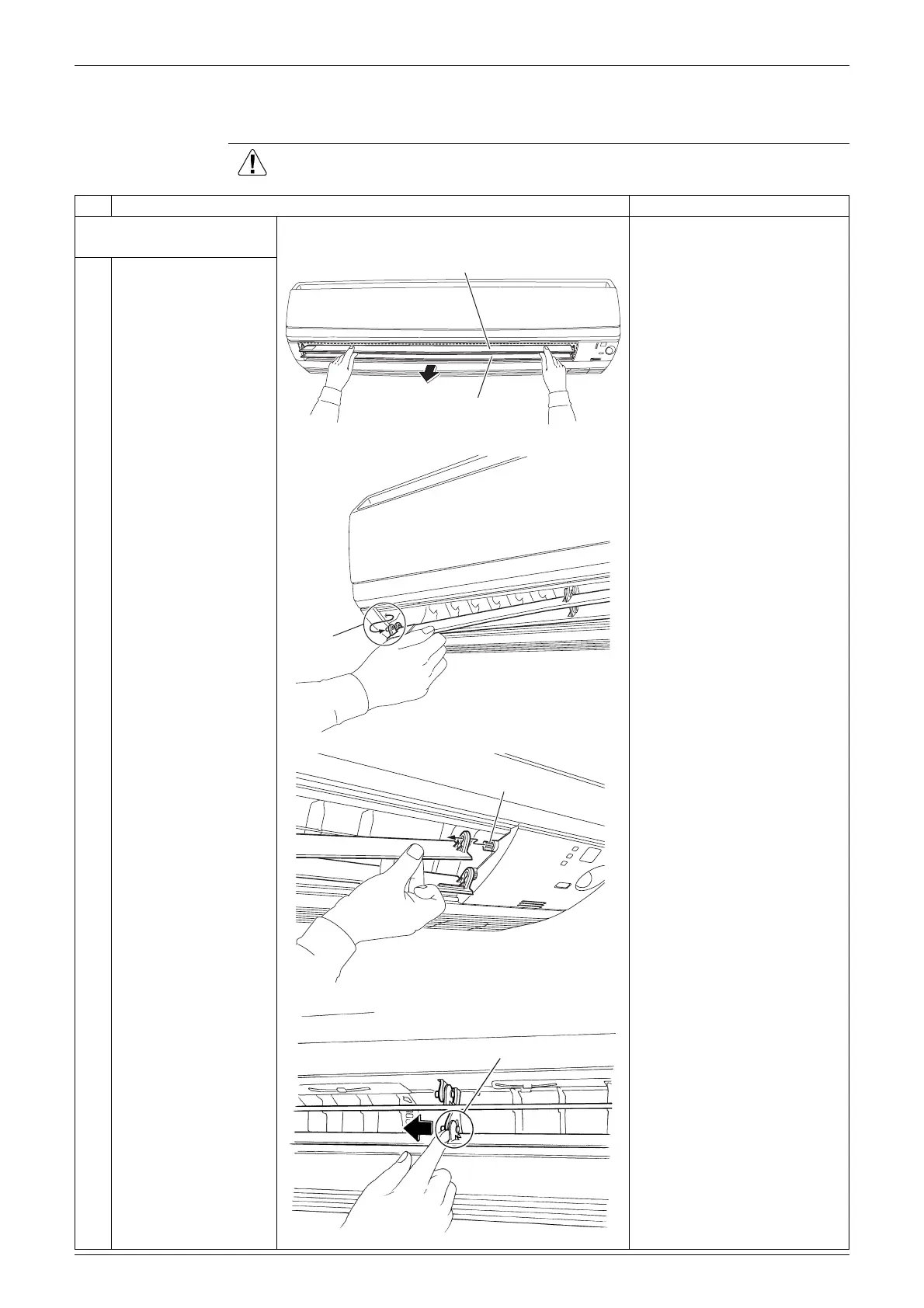

1. Remove the horizontal
blades.
1
Open the horizontal
blades.
2
Release the left shaft of
the horizontal blade
(large).
3
Release the right shaft.
î
Installation procedure
1. Since the key pattern hook is
provided, rotate the blade
and fit it to the right shaft
first.
2. Fit the blade to the center
and left shafts.
4
Release the center
shaft.
Remove the horizontal
blade (large).
5
Remove the horizontal
blade (small) in the
same way.
Horizontal blade (small)
Horizontal blade (large)
(R11335)
Left shaft
(R11336)
Right shaft
(R11337)
Center shaft
(R2765)
To Next Page
