Printed Circuit Board Connector Wiring Diagram SiENBE12-713
46 Printed Circuit Board Connector Wiring Diagram

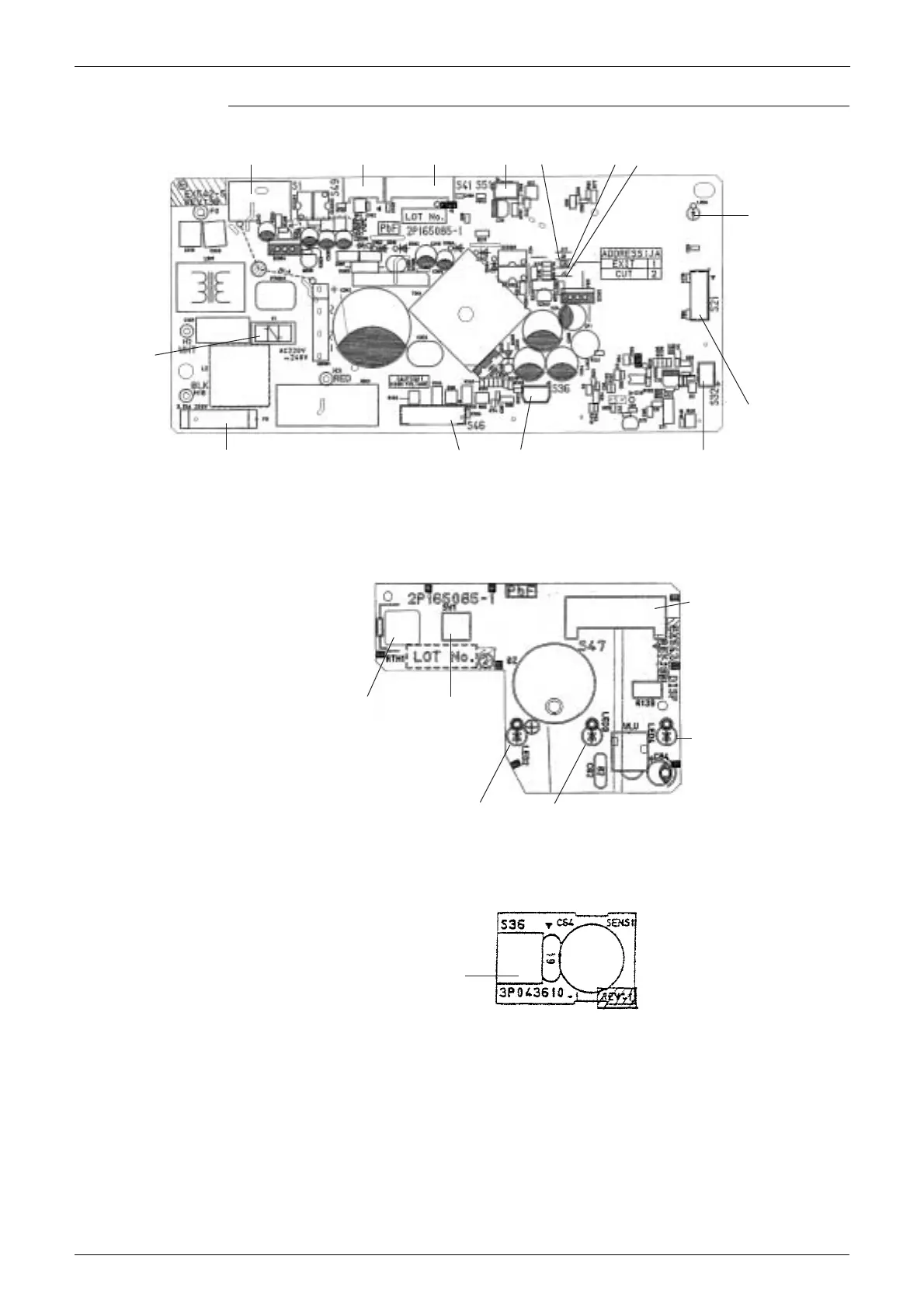

PCB Detail PCB(1): Control PCB (indoor unit)
PCB(2): Signal Receiver PCB
PCB(3): INTELLIGENT EYE sensor PCB
S46
V1
S21
(R4991)
FU1
S1 S41 S51 JB JA JCS49
S36 S32
LED A
LED4
RTH1
LED3
(R4992)
LED2
SW1
S47
S36
(R4988)
