Indoor Unit Installation
1.
Installing the mounting plate.
• The mounting plate should be installed on a wall which can support the weight of the indoor unit.
1) Temporarily secure the mounting plate to the wall, make sure that the panel is completely level, and mark the boring
points on the wall.
2) Secure the mounting plate to the wall with screws.

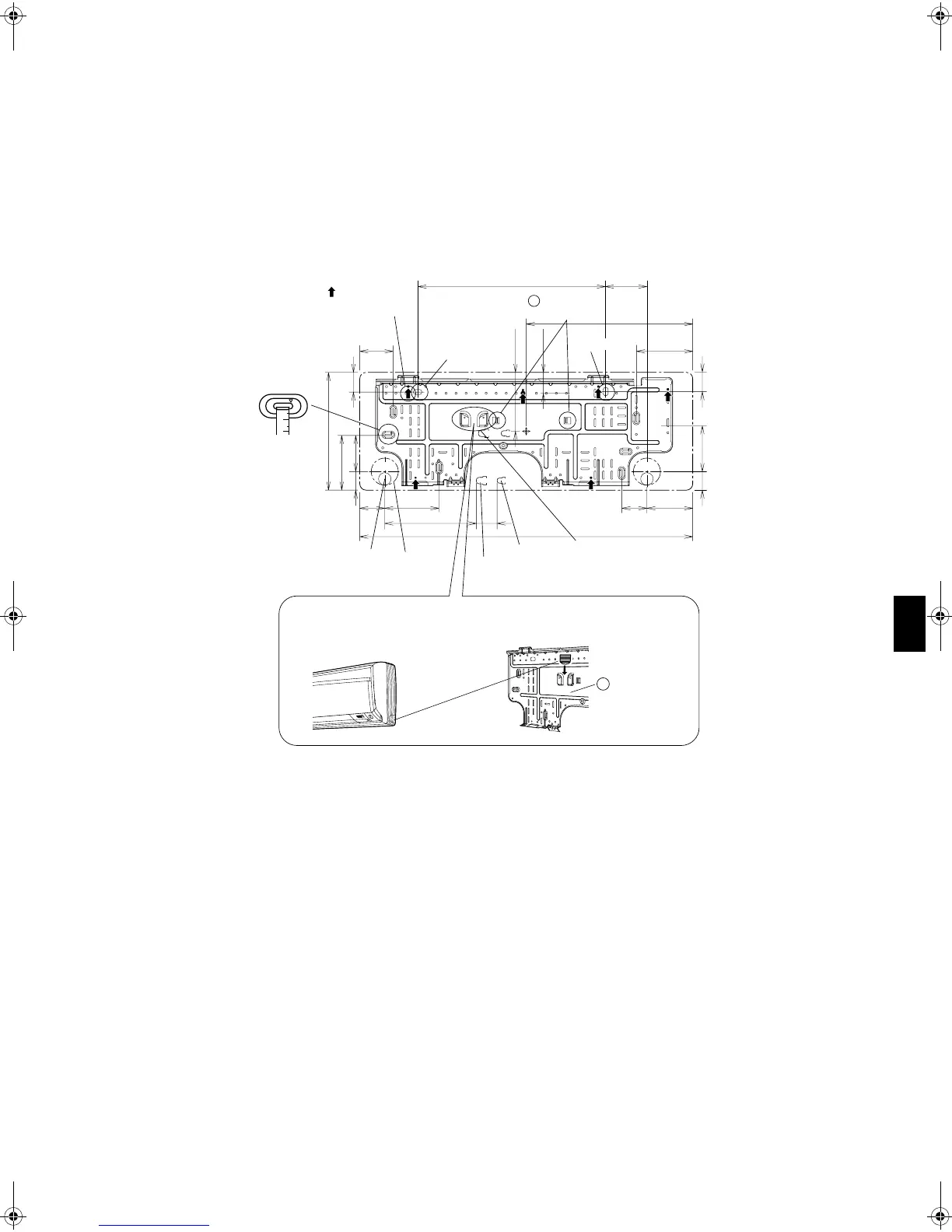

Recommended mounting-plate retention spots and Dimensions
80
100
400
135
450
283
47.5
141.5
50.5
46.5
44.5
131.5
87
44.5
110
60 130
220 50
60 110
800
φ65 φ65
Use tape
measure
as shown.
Position the
end of a tape
measure at ∇.
Keep here the piece cut out
from the unit for piping
Liquid pipe end
Gas pipe end
* The removed pipe port cover can be
kept in the mounting plate pocket.
Removed pipe
port cover
A
Mounting plate
Through-
the-wall
hole φ65mm
Drain hose
position
Recommended
mounting - plate
retention spots
(6 spots in all)
(Bolt size : M10)
Place a leveler
on raised tab.
b
(Bolt size : M10)
